Simplicity 3008 Wonder Boy

The Simplicity 3008 Wonder Boy is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 318 cc 19.44 ci engine. The listed engine power is Gasoline (listed): 8 hp / 6.0 kW. Transmission: 3 forward and 1 reverse.

Overview

	1975 - 1976 Wonder Boy SeriesRiding lawn mower Wonder Boy Series Riding lawn mower

Production
Manufacturer	Simplicity (a part of Allis Chalmers)
Riding lawn mower
Built in Port Washington, Wisconsin, USA

Simplicity 3008 Wonder Boy Engine
8HP Briggs & Stratton 318cc 1-cyl gasoline
Fuel tank	0.75 gal 2.8 L
Engine details ...

Simplicity 3008 Wonder Boy Transmission
3-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Dimensions & Tires
Wheelbase	44.75 inches 113 cm
Front tire	4.10/3.50x4
Rear tire	16.00/6.50x8
Full dimensions and tires ...

References
Lawn & Garden Power Equipment published in 1976, by Simplicity

Engine

Engine Detail — 318 cc / 19.44 ci Gasoline

Manufacturer	Briggs & Stratton 190707
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	318 cc 19.44 ci
Bore/Stroke	3.00x2.75 inches 76 x 70 mm
Power	8 hp 6.0 kW
Starter type	electric

Transmission

Transmission — 3 forward and 1 reverse belt-driven gear

Type	belt-driven gear
Gears	3 forward and 1 reverse

Dimensions

Simplicity 3008 Wonder Boy Tires
Lawn/turf front	4.10/3.50x4
Lawn/turf rear	16.00/6.50x8

Dimensions
Wheelbase	44.75 inches 113 cm
Length	57.75 inches 146 cm
Width	28.25 inches 71 cm

Attachments

30" Mower deck
Type	mid-mount Simplicity
	1-blade
Cutting width	30 inches 76 cm
Overall width	40.25 inches 102 cm
Cut height	1.5 to 3.5 inch 3 to 8 cm

Photos

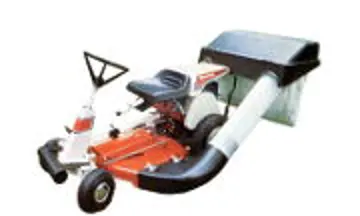

Simplicity 3008 Wonder Boy tractor photo
