Simplicity 3108

The Simplicity 3108 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 318 cc 19.44 ci engine. The listed engine power is Gasoline (gross): 8 hp / 6.0 kW. Transmission: Tecumseh 740. Operating weight: 348 lbs 157 kg.

Overview

	1980 - 1989 Cavalier 3100 SeriesRiding lawn mower Cavalier 3100 Series Riding lawn mower

Production
Manufacturer	Simplicity
Riding lawn mower
Built in Port Washington, Wisconsin, USA
Original price	$1,200 (1980 )
	$1,700 (1989 )

Simplicity 3108 Engine
8HP Briggs & Stratton 318cc 1-cyl gasoline
Fuel tank	1.75 gal 6.6 L
Engine details ...

Simplicity 3108 Transmission
5-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Dimensions & Tires
Weight	348 lbs 157 kg
Front tire	4.10x3.5-4
Rear tire	16x6.50-8
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	3
Battery volts	12

References
Riding Mowers and Garden Tractors published in 1982, by Simplicity
Outdoor Power Equipment published in 1987, by Simplicity

Engine

Engine Detail — 318 cc / 19.44 ci Gasoline

Manufacturer	Briggs & Stratton
Fuel Type	Gasoline
Configuration	1-cylinder
vertical-shaft
Displacement	318 cc 19.44 ci
Bore/Stroke	3.00x2.75 inches 76 x 70 mm
Power (gross)	8 hp 6.0 kW
Air cleaner	oiled foam
Rated RPM	3600
Starter	manual recoil
	electric OptOptional
Starter volts	12
Oil capacity	1.125 qts 1.1 L

Transmission

Transmission — Tecumseh 740

Transmission	Tecumseh 740
Type	belt-driven gear
Gears	5 forward and 1 reverse

Dimensions

Simplicity 3108 Tires
Lawn/turf front	4.10x3.5-4
Lawn/turf rear	16x6.50-8

Dimensions
Weight	348 lbs 157 kg

Attachments

30" Mower deck
Type	mid-mount Simplicity
	1-blade
Cutting width	30 inches 76 cm
Cut height	1.3 to 4.5 inch 3 to 11 cm
Cut positions	6

Photos

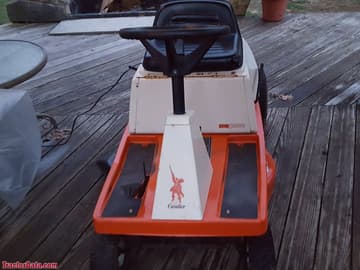

Simplicity 3108

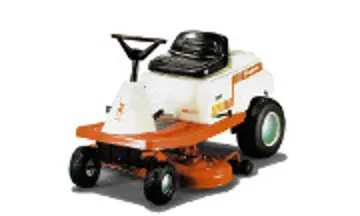

Simplicity 3108
