Simplicity Regent 4108

The Simplicity Regent 4108 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 318 cc 19.44 ci engine. The listed engine power is Gasoline (listed): 8 hp / 6.0 kW. Transmission: 3 forward and 1 reverse. Operating weight: 485 lbs 219 kg.

Overview

	1976 - 1979 Regent SeriesLawn tractor Regent Series Lawn tractor

Production
Manufacturer	Simplicity (a part of Allis Chalmers)
Lawn tractor
Built in Port Washington, Wisconsin, USA

Simplicity 4108 Engine
8HP Briggs & Stratton 318cc 1-cyl gasoline
Fuel tank	2.2 gal 8.3 L
Engine details ...

Simplicity 4108 Transmission
3-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	manual

Dimensions & Tires
Wheelbase	45.5 inches 115 cm
Weight	485 lbs 219 kg
Front tire	13x5.00-6
Rear tire	18x8.50-8
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	flywheel magneto
Battery volts	12
Battery AH	32

References
Lawn & Garden Power Equipment published in 1976, by Simplicity
Lawn & Garden Equipment published in 1978, by Simplicity

Engine

Engine Detail — 318 cc / 19.44 ci Gasoline

Manufacturer	Briggs & Stratton
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Displacement	318 cc 19.44 ci
Bore/Stroke	3.00x2.75 inches 76 x 70 mm
Power	8 hp 6.0 kW
Rated RPM	3400
Starter	manual recoil
	electric OptOptional
Starter volts	12
Oil capacity	1.125 qts 1.1 L

Transmission

Transmission — 3 forward and 1 reverse belt-driven gear

Type	belt-driven gear
Gears	3 forward and 1 reverse
Clutch	mechanical idler pulley
Oil capacity	1.125 qts 1.1 L

Dimensions

Simplicity 4108 Tires
Lawn/turf front	13x5.00-6
Lawn/turf rear	18x8.50-8

Dimensions
Wheelbase	45.5 inches 115 cm
Length	62.75 inches 159 cm
Width	34.25 inches 86 cm
Height (steering wheel)	39.3 inches 99 cm
Shipping weight	485 lbs 219 kg

Attachments

Attachment overview
36" mid-mount mower deck
Snowblower
Blade

36" Mower deck
Type	mid-mount Simplicity
	2-blade with manual lift
Cutting width	36 inches 91 cm
Overall width	46 inches 116 cm
Cut height	1.5 to 3.5 inch 3 to 8 cm

Photos

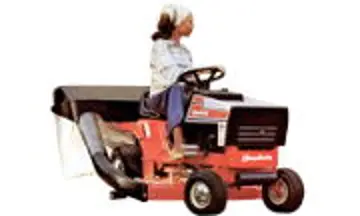

Simplicity Regent 4108 tractor photo
