Simplicity Landlord 9HP
The Simplicity Landlord 9HP is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 392 cc 23.94 ci engine. The listed engine power is Gasoline (gross): 9 hp / 6.7 kW. Transmission: 6 forward and 2 reverse. Operating weight: 680 lbs 308 kg.
Engine Power
Gasoline (gross): 9 hp / 6.7 kW
Fuel & Capacities
Gasoline
Transmission
6 forward and 2 reverse
Operating Weight
680 lbs
308 kg
Overview
 | 1964 - 1965
Landlord SeriesGarden tractor
Landlord Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Simplicity (a part of Allis Chalmers) |
Garden tractor | |
Built in Port Washington, Wisconsin, USA | |
Variants | |
|---|---|
990308 | manual start |
990314 | electric start |
990350 | mechanical lift |
990351 | hydraulic lift |
Simplicity Landlord 9HP Engine | |
|---|---|
9HP Briggs & Stratton 392cc 1-cyl gasoline | |
Engine details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Mechanical band brakes | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | mechanical idler pulley |
Dimensions & Tires | |
|---|---|
Wheelbase | 44.5 inches
113 cm |
Weight | 680 lbs
308 kg |
Front tire | 4.80x8 |
Rear tire | 8-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Do it with Simplicity published in 1964 |
Engine
Engine Detail — 392 cc / 23.94 ci Gasoline
Manufacturer | Briggs & Stratton 243431 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled horizontal-shaft |
Displacement | 392 cc
23.94 ci |
Bore/Stroke | 3.0625x3.25 inches
78 x 83 mm |
Power (gross) | 9 hp
6.7 kW |
Starter | manual recoil |
electric OptOptional | |
Starter volts | 12 |
Oil change | 25 h |
Transmission
Transmission options | |
|---|---|
3-speed gear | |
6-speed gear |
Transmission — 3 forward and 1 reverse shaft-driven gear
Type | shaft-driven gear |
Gears | 3 forward and 1 reverse |
Oil capacity | 1.5 qts
1.4 L |
Oil type | SAE 90 |
 | |
Transmission — 6 forward and 2 reverse gear
Type | gear |
Gears | 6 forward and 2 reverse |
The optional High-Low range speed kit provides a lower range for each gear. | |
Dimensions
Simplicity Landlord 9HP Tires | |
|---|---|
Lawn/turf front | 4.80x8 |
Lawn/turf rear | 8-12 |
Dimensions | |
|---|---|
Wheelbase | 44.5 inches
113 cm |
Length | 63 inches
160 cm |
Width | 34 inches
86 cm |
Height (steering wheel) | 37 inches
93 cm |
Height (hood) | 33 inches
83 cm |
Shipping weight | 680 lbs
308 kg |
Attachments
Attachment overview | |
|---|---|
32" mid-mount mower deck | |
42" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos

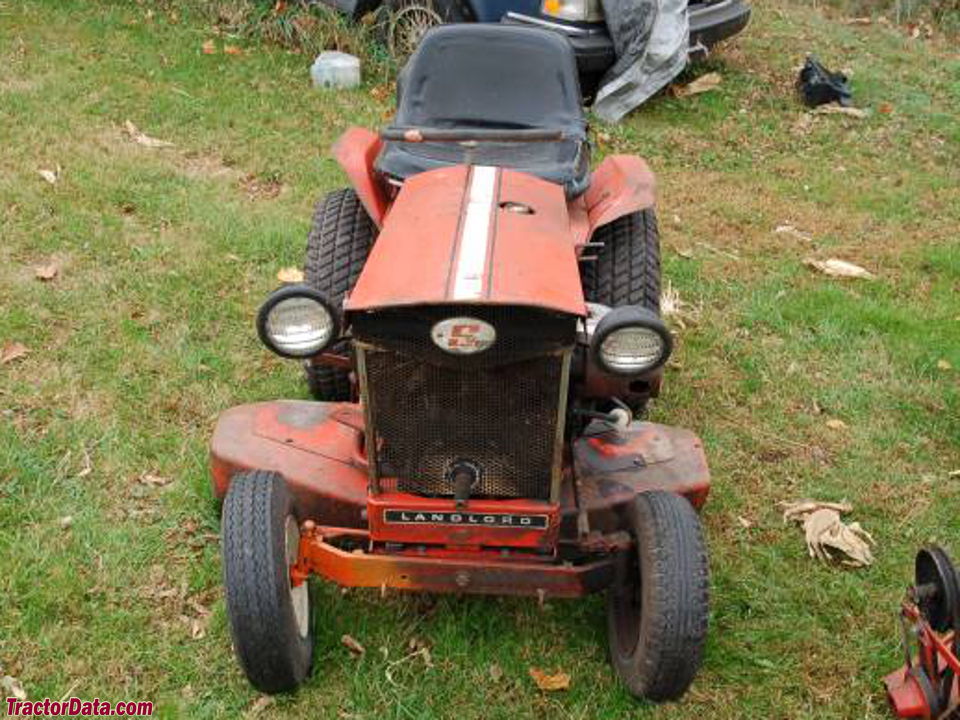

Simplicity Landlord 9HP
Simplicity Landlord 9HP
Simplicity Landlord 9HP
Simplicity Lawn Tractors Simplicity Landlord 9HP Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Simplicity Lawn Tractors Simplicity Landlord 9HP.
Converted Equivalents:
Horsepower (HP)9 hp
Kilowatts (kW)6.7 kW
Metric Horsepower (PS / CV)9.1 PS
