Simplicity Regent 4208
The Simplicity Regent 4208 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 318 cc 19.44 ci engine. The listed engine power is Gasoline (listed): 8 hp / 6.0 kW. Transmission: 5 forward and 1 reverse. Operating weight: 309 to 505 pounds.
Engine Power
Gasoline (listed): 8 hp / 6.0 kW
Fuel & Capacities
Gasoline
Transmission
5 forward and 1 reverse
Operating Weight
309 to 505 pounds
Overview
 | 1979 - 1986
4200 SeriesLawn tractor
4200 Series
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Simplicity (a part of Allis Chalmers) |
Lawn tractor | |
Built in Port Washington, Wisconsin, USA | |
Simplicity 4208 Engine | |
|---|---|
8HP Briggs & Stratton 318cc 1-cyl gasoline | |
Engine details ...  |
Simplicity 4208 Transmission | |
|---|---|
5-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. Vinyl weather cab available. |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Wheelbase | 45.5 inches
115 cm |
Weight | 309 to 505 pounds |
Front tire | 13x5.00-6 |
Rear tire | 18x8.50-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 3 |
Battery volts | 12 |
Battery AH | 32 |
References | |
|---|---|
 | |
Lawn & Garden Equipment published in 1979, by Simplicity | |
Riding Mowers and Garden Tractors published in 1982, by Simplicity |
Engine
Engine Detail — 318 cc / 19.44 ci Gasoline
Manufacturer | Briggs & Stratton 191707 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 318 cc
19.44 ci |
Bore/Stroke | 3.00x2.75 inches
76 x 70 mm |
Power | 8 hp
6.0 kW |
Air cleaner | foam |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 5 forward and 1 reverse belt-driven gear
Type | belt-driven gear |
Gears | 5 forward and 1 reverse |
 | |
Dimensions
Simplicity 4208 Tires | |
|---|---|
Lawn/turf front | 13x5.00-6 |
Lawn/turf rear | 18x8.50-8 |
Dimensions | |
|---|---|
Wheelbase | 45.5 inches
115 cm |
Length | 65.25 inches
165 cm |
Width | 35.25 inches
89 cm |
Height (steering wheel) | 39 inches
99 cm |
Shipping weight | 309 lbs*Tractor
140 kg |
505 lbs*With 36-inch mower deck
229 kg | |
Clearance (front axle) | 9.2 inches
23 cm |
Clearance (rear axle) | 5.5 inches
13 cm |
Attachments
Attachment overview | |
|---|---|
36" mid-mount mower deck | |
Snowblower | |
Blade |
36" Mower deck | |
|---|---|
Type | mid-mount Simplicity |
2-blade with manual lift | |
Cutting width | 36 inches
91 cm |
Cut height | 1.5 to 3.5 inch
3 to 8 cm |
Photos

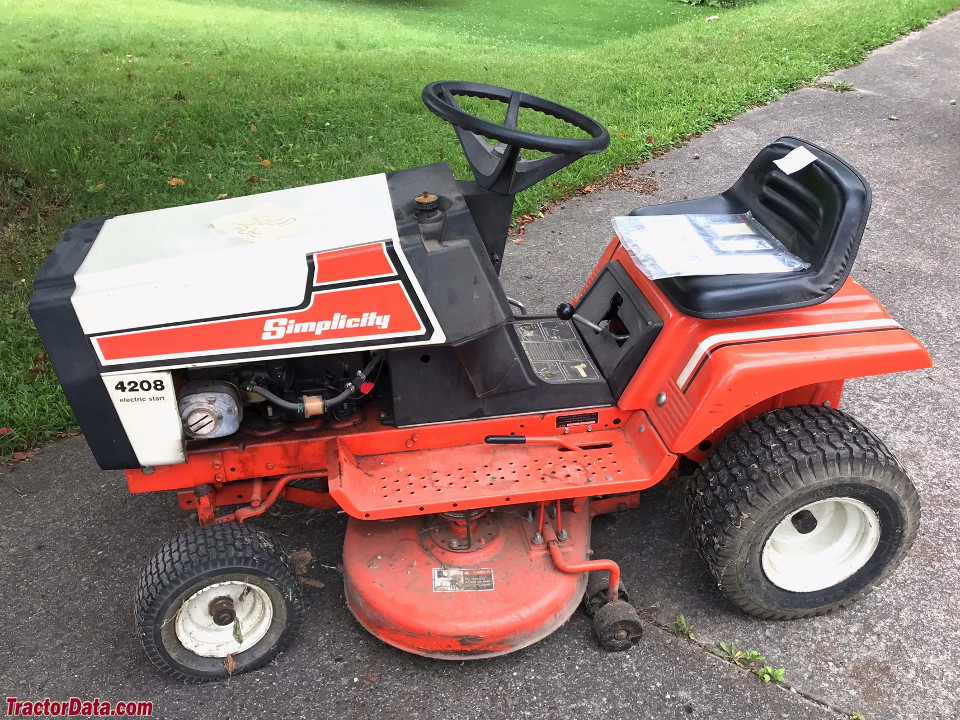

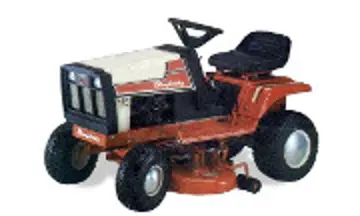

Simplicity Regent 4208
Simplicity Regent 4208
Simplicity Regent 4208
Simplicity Regent 4208
Simplicity Lawn Tractors Simplicity Regent 4208 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Simplicity Lawn Tractors Simplicity Regent 4208.
Converted Equivalents:
Horsepower (HP)8 hp
Kilowatts (kW)6 kW
Metric Horsepower (PS / CV)8.1 PS
