Simplicity 4212
The Simplicity 4212 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 465 cc 28.4 ci engine. The listed engine power is Gasoline (gross): 12 hp / 8.9 kW. Transmission: Peerless 801. Operating weight: 411 lbs*Weight with mower deck. 186 kg.
Engine Power
Gasoline (gross): 12 hp / 8.9 kW
Fuel & Capacities
2.2 gal
8.3 L
Transmission
Peerless 801
Operating Weight
411 lbs*Weight with mower deck.
186 kg
Overview
 | 1987 - 1989
4200 SeriesLawn tractor
4200 Series
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Simplicity |
Lawn tractor | |
Built in Port Washington, Wisconsin, USA | |
Original price was $2,299 in 1990 | |
Variants | |
|---|---|
4212G | gear |
4212H | hydrostatic |
Simplicity 4212 Engine | |
|---|---|
12HP Briggs & Stratton 465cc 1-cyl gasoline | |
Fuel tank | 2.2 gal
8.3 L |
Engine details ...  | |
Simplicity 4212 Transmission | |
|---|---|
5-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Wheelbase | 45.5 inches
115 cm |
Weight | 411 lbs
186 kg |
Front tire | 15x6.00-6 |
Rear tire | 18x8.50-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 3 |
Battery volts | 12 |
References | |
|---|---|
 | |
Outdoor Power Equipment published in 1987, by Simplicity | |
1990 Pocket Price List published in 1989, by Simplicity |
Engine
Engine Detail — 465 cc / 28.4 ci Gasoline
Manufacturer | Briggs & Stratton |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 465 cc
28.4 ci |
Bore/Stroke | 3.44x3.06 inches
87 x 78 mm |
Power (gross) | 12 hp
8.9 kW |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — Peerless 801
Transmission | Peerless 801 |
Type | belt-driven gear |
Gears | 5 forward and 1 reverse |
 | |
Dimensions
Simplicity 4212 Tires | |
|---|---|
Lawn/turf front | 15x6.00-6 |
Lawn/turf rear | 18x8.50-8 |
Dimensions | |
|---|---|
Wheelbase | 45.5 inches
115 cm |
Length | 63 inches
160 cm |
Width | 34.25 inches
86 cm |
Height (steering wheel) | 39.7 inches
100 cm |
Weight | 411 lbs*Weight with mower deck.
186 kg |
Clearance (front axle) | 9 inches
22 cm |
Clearance (rear axle) | 6 inches
15 cm |
Attachments
Attachment overview | |
|---|---|
36" mid-mount mower deck | |
Snowblower | |
Blade |
36" Mower deck | |
|---|---|
Type | mid-mount Simplicity |
2-blade | |
Cutting width | 36 inches
91 cm |
Cut height | 1.5 to 3.5 inch
3 to 8 cm |
Photos

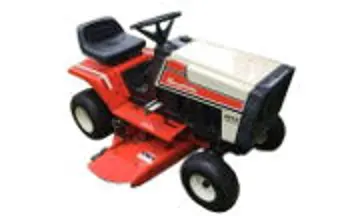

Simplicity 4212
Simplicity 4212
Simplicity Lawn Tractors Simplicity 4212 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Simplicity Lawn Tractors Simplicity 4212.
Converted Equivalents:
Horsepower (HP)12 hp
Kilowatts (kW)8.9 kW
Metric Horsepower (PS / CV)12.2 PS
