Simplicity 4212H

The Simplicity 4212H is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 465 cc 28.4 ci engine. The listed engine power is Gasoline (gross): 12 hp / 8.9 kW. Transmission: infinite forward and reverse. Operating weight: 445 lbs*Weight with mower deck. 201 kg.

Overview

	1987 - 1989 4200 SeriesLawn tractor 4200 Series Lawn tractor

Production
Manufacturer	Simplicity
Lawn tractor
Built in Port Washington, Wisconsin, USA
Original price	$2,699 (1990 )
	$2 ()

Variants
4212G	gear
4212H	hydrostatic

Simplicity 4212H Engine
12HP Briggs & Stratton 465cc 1-cyl gasoline
Fuel tank	2.2 gal 8.3 L
Engine details ...

Simplicity 4212H Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Dimensions & Tires
Wheelbase	45.5 inches 115 cm
Weight	445 lbs 201 kg
Front tire	15x6.00-6
Rear tire	18x8.50-8
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	3
Battery volts	12

References
Outdoor Power Equipment published in 1987, by Simplicity
1990 Pocket Price List published in 1989, by Simplicity

Engine

Engine Detail — 465 cc / 28.4 ci Gasoline

Manufacturer	Briggs & Stratton
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	465 cc 28.4 ci
Bore/Stroke	3.44x3.06 inches 87 x 78 mm
Power (gross)	12 hp 8.9 kW
Rated RPM	3600
Starter	electric
Starter volts	12

Transmission

Transmission — infinite forward and reverse belt-driven hydrostatic

Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity 4212H Tires
Lawn/turf front	15x6.00-6
Lawn/turf rear	18x8.50-8

Dimensions
Wheelbase	45.5 inches 115 cm
Length	65.25 inches 165 cm
Width	34.25 inches 86 cm
Height (steering wheel)	39.7 inches 100 cm
Weight	445 lbs*Weight with mower deck. 201 kg
Clearance (front axle)	9 inches 22 cm
Clearance (rear axle)	4.75 inches 12 cm

Attachments

Attachment overview
36" mid-mount mower deck
Snowblower
Blade

36" Mower deck
Type	mid-mount Simplicity
	2-blade
Cutting width	36 inches 91 cm
Cut height	1.5 to 3.5 inch 3 to 8 cm

Photos

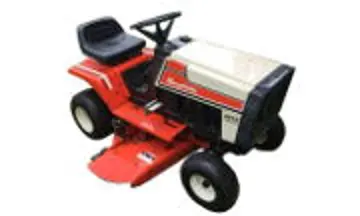

Simplicity 4212H

Simplicity 4212H

Simplicity 4212H with hood and rear fender opened.

Simplicity 4212H, left-rear view.
