Simplicity 5212

The Simplicity 5212 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 465 cc 28.4 ci engine. The listed engine power is Gasoline (gross): 12 hp / 8.9 kW. Transmission: Peerless 801. Operating weight: 372 lbs 168 kg.

Overview

	1987 5200 SeriesLawn tractor 5200 Series Lawn tractor

Production
Manufacturer	Simplicity
Lawn tractor
Built in Port Washington, Wisconsin, USA

Simplicity 5212 Engine
12HP Briggs & Stratton 465cc 1-cyl gasoline
Fuel tank	2.2 gal 8.3 L
Engine details ...

Simplicity 5212 Transmission
5-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Dimensions & Tires
Wheelbase	48.2 inches 122 cm
Weight	372 lbs 168 kg
Front tire	15x6.00-6
Rear tire	20x8.00-10
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12
Battery AH	39

Engine

Engine Detail — 465 cc / 28.4 ci Gasoline

Manufacturer	Briggs & Stratton
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	465 cc 28.4 ci
Bore/Stroke	3.44x3.06 inches 87 x 78 mm
Power (gross)	12 hp 8.9 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Peerless 801

Transmission	Peerless 801
Type	belt-driven gear
Gears	5 forward and 1 reverse

Dimensions

Simplicity 5212 Tires
Lawn/turf front	15x6.00-6
Lawn/turf rear	20x8.00-10

Dimensions
Wheelbase	48.2 inches 122 cm
Length	66.5 inches 168 cm
Width	33.7 inches 85 cm
Height (steering wheel)	41 inches 104 cm
Weight	372 lbs 168 kg
Clearance (front axle)	10 inches 25 cm
Clearance (rear axle)	6 inches 15 cm

Attachments

Attachment overview
42" mid-mount mower deck
Mid-mount mower deck
Snowblower
Blade

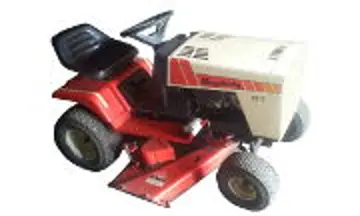

Photos

Simplicity 5212
