Simplicity 5212.5

The Simplicity 5212.5 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 655 cc 40 ci engine. The listed engine power is Gasoline (gross): 12.5 hp / 9.3 kW. Transmission: Peerless 801. Operating weight: 371 lbs 168 kg.

Overview

	1987 - 1990 5200 SeriesLawn tractor 5200 Series Lawn tractor

Production
Manufacturer	Simplicity
Lawn tractor
Built in Port Washington, Wisconsin, USA

Variants
5212.5	gear drive
5212.5H	hydrostatic

Simplicity 5212.5 Engine
12.5HP Briggs & Stratton 655cc 2-cyl gasoline
Fuel tank	2.2 gal 8.3 L
Engine details ...

Simplicity 5212.5 Transmission
5-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Dimensions & Tires
Wheelbase	48.2 inches 122 cm
Weight	371 lbs 168 kg
Front tire	15x6.00-6
Rear tire	20x10.00-10
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12
Battery AH	39

References
Outdoor Power Equipment published in 1987, by Simplicity

Engine

Engine Detail — 655 cc / 40 ci Gasoline

Manufacturer	Briggs & Stratton
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft horizontally-opposed
Displacement	655 cc 40 ci
Bore/Stroke	3.44x2.16 inches 87 x 55 mm
Power (gross)	12.5 hp 9.3 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Peerless 801

Transmission	Peerless 801
Type	belt-driven gear
Gears	5 forward and 1 reverse

Dimensions

Simplicity 5212.5 Tires
Lawn/turf front	15x6.00-6
Lawn/turf rear	20x10.00-10
Lawn/turf front	20x8.00-10

Dimensions
Wheelbase	48.2 inches 122 cm
Length	66.5 inches 168 cm
Width	33.7 inches 85 cm
Height (steering wheel)	41 inches 104 cm
Weight	371 lbs 168 kg
Clearance (front axle)	10 inches 25 cm
Clearance (rear axle)	6 inches 15 cm

Attachments

Attachment overview
36" mid-mount mower deck
42" mid-mount mower deck
Mid-mount mower deck
Snowblower
Blade

Photos

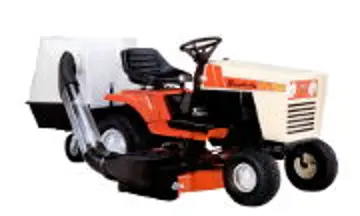

Simplicity 5212.5

Simplicity 5212.5

Simplicity 5212.5

Simplicity 5212.5

Simplicity 5212.5
