Simplicity 575

The Simplicity 575 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 231 cc 14.1 ci engine. The listed engine power is Gasoline (gross): 5.75 hp / 4.3 kW. Transmission: 2 forward and reverse.

Overview

	1958 - 1959 Wonder Boy SeriesRiding lawn mower Wonder Boy Series Riding lawn mower

Production
Manufacturer	Simplicity
Riding lawn mower
Built in Port Washington, Wisconsin, USA
Original price was $575 in 1960

Simplicity 575 Engine
5.75HP Briggs & Stratton 231cc 1-cyl gasoline
Engine details ...

Simplicity 575 Transmission
2-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Dimensions & Tires
Front tire	10x2.50
Rear tire	4.00x8
Full dimensions and tires ...

References
Lawn & Garden Power Equipment published in 1959, by Simplicity

Engine

Engine Detail — 231 cc / 14.1 ci Gasoline

Manufacturer	Briggs & Stratton 143302
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Displacement	231 cc 14.1 ci
Bore/Stroke	2.75x2.375 inches 70 x 60 mm
Power (gross)	5.75 hp 4.3 kW
Starter	manual recoil
	electric OptOptional
Starter volts	12

Transmission

Transmission — 2 forward and reverse belt-driven gear

Type	belt-driven gear
Gears	2 forward and reverse

Dimensions

Simplicity 575 Tires
Lawn/turf front	10x2.50
Lawn/turf rear	4.00x8

Dimensions

Attachments

Attachment overview
24" mid-mount mower deck
32" mid-mount mower deck
Blade

Photos

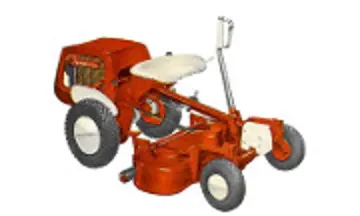

Simplicity 575 tractor photo
