Simplicity 600 990230

The Simplicity 600 990230 is a tractor produced by Simplicity Lawn Tractors. The listed engine power is Gasoline (listed): 6 hp / 4.5 kW. Transmission: 2 forward and reverse. Operating weight: 85 lbs 38 kg.

Overview

	1961 - 1963 Wonder Boy SeriesRiding lawn mower Wonder Boy Series Riding lawn mower

Production
Manufacturer	Simplicity
Riding lawn mower
Built in Port Washington, Wisconsin, USA
Original price was $438 in 1963

Simplicity 600 Engine
6HP Briggs & Stratton 1-cyl gasoline
Engine details ...

Simplicity 600 Transmission
2-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Dimensions & Tires
Front tire	3.50x4
Rear tire	4.80x8
Full dimensions and tires ...

References
Bring the wonderful world of Simplicity into your life in 1963
Do it with Simplicity published in 1964

Engine

Engine Detail — Gasoline

Manufacturer	Briggs & Stratton
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Power	6 hp 4.5 kW
Starter	manual recoil
	electric OptOptional
Starter volts	12

Transmission

Transmission — 2 forward and reverse belt-driven gear

Type	belt-driven gear
Gears	2 forward and reverse

Dimensions

Simplicity 600 Tires
Lawn/turf front	3.50x4
Lawn/turf rear	4.80x8

Dimensions

Attachments

32" Mower deck
Type	mid-mount Simplicity
	2-blade with manual lift
Cutting width	32 inches 81 cm
Weight	85 lbs 38 kg
Cut height	1.25 to 3 inch 3 to 7 cm

Photos

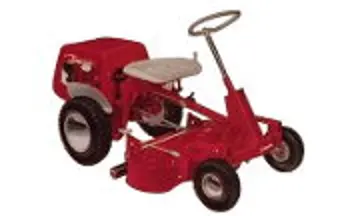

Simplicity 600 990230 tractor photo
