Simplicity 6008 1690193

The Simplicity 6008 1690193 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 318 cc 19.44 ci engine. The listed engine power is Gasoline (gross): 8 hp / 6.0 kW. Transmission: 3 forward and 1 reverse. Operating weight: 76 lbs 34 kg.

Overview

	1977 - 1978 Broadmoor II SeriesGarden tractor Broadmoor II Series Garden tractor

Production
Manufacturer	Simplicity (a part of Allis Chalmers)
Garden tractor
Built in Port Washington, Wisconsin, USA

Simplicity 6008 Engine
8HP Briggs & Stratton 318cc 1-cyl gasoline
Fuel tank	2.2 gal 8.3 L
Engine details ...

Simplicity 6008 Transmission
3-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Mechanical band brakes
Open operator station.

Power Take-off (PTO)
Front PTO	independent
Clutch	mechanical

Dimensions & Tires
Wheelbase	45.5 inches 115 cm
Weight	520 lbs 235 kg
Front tire	15x6.00-8
Rear tire	18x9.50-8
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12
Battery AH	32

References
Lawn & Garden Power Equipment published in 1976, by Simplicity
Lawn & Garden Equipment published in 1978, by Simplicity

Engine

Engine Detail — 318 cc / 19.44 ci Gasoline

Manufacturer	Briggs & Stratton 191707
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	318 cc 19.44 ci
Bore/Stroke	3.00x2.75 inches 76 x 70 mm
Power (gross)	8 hp 6.0 kW
Starter	electric
Starter volts	12

Transmission

Transmission — 3 forward and 1 reverse belt-driven gear

Type	belt-driven gear
Gears	3 forward and 1 reverse
Oil capacity	1 qts 0.9 L
Oil type	SAE 90

Dimensions

Simplicity 6008 Tires
Lawn/turf front	15x6.00-8
Lawn/turf rear	18x9.50-8

Dimensions
Wheelbase	45.5 inches 115 cm
Length	63.5 inches 161 cm
Width	35.1 inches 89 cm
Height (steering wheel)	39 inches 99 cm
Height (hood)	33 inches 83 cm
Shipping weight	520 lbs 235 kg

Attachments

Attachment overview
36" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

36" Mower deck
Type	mid-mount Simplicity
	2-blade
Cutting width	36 inches 91 cm
Weight	76 lbs 34 kg
Overall width	46 inches 116 cm

Photos

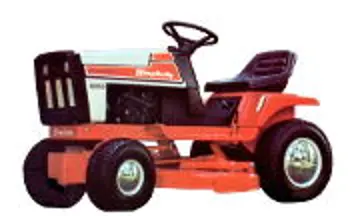

Simplicity 6008 1690193 tractor photo
