Simplicity 606 990332

The Simplicity 606 990332 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 231 cc 14.1 ci engine. The listed engine power is Gasoline (gross): 6 hp / 4.5 kW. Transmission: 2 forward and 1 reverse.

Overview

	1964 - 1967 Wonder Boy SeriesRiding lawn mower Wonder Boy Series Riding lawn mower

Production
Manufacturer	Simplicity (a part of Allis Chalmers)
Riding lawn mower
Built in Port Washington, Wisconsin, USA
Original price was $463 in 1967

Variants
990329	606 Super
990333	606 Special

Simplicity 606 Engine
6HP Briggs & Stratton 231cc 1-cyl gasoline
Engine details ...

Simplicity 606 Transmission
2-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Dimensions & Tires
Front tire	11x4.00-5
Rear tire	16x6.50-8
Full dimensions and tires ...

References
the new look of Simplicity action '67 published in 1967

Engine

Engine Detail — 231 cc / 14.1 ci Gasoline

Manufacturer	Briggs & Stratton 140000
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
Displacement	231 cc 14.1 ci
Bore/Stroke	2.75x2.375 inches 70 x 60 mm
Power (gross)	6 hp 4.5 kW
Starter type	manual recoil
	electric OptOptional

Transmission

Transmission — 2 forward and 1 reverse belt-driven gear

Type	belt-driven gear
Gears	2 forward and 1 reverse

Dimensions

Simplicity 606 Tires
Lawn/turf front	11x4.00-5 (Super)
	4.80x4.00-8 (Special)
Lawn/turf rear	16x6.50-8

Dimensions

Attachments

Attachment overview
32" mid-mount mower deck
Blade

32" Mower deck
Type	mid-mount Simplicity 333
	3-blade with manual lift
Cutting width	32 inches 81 cm
Cut height	1.25 to 3 inch 3 to 7 cm

Photos

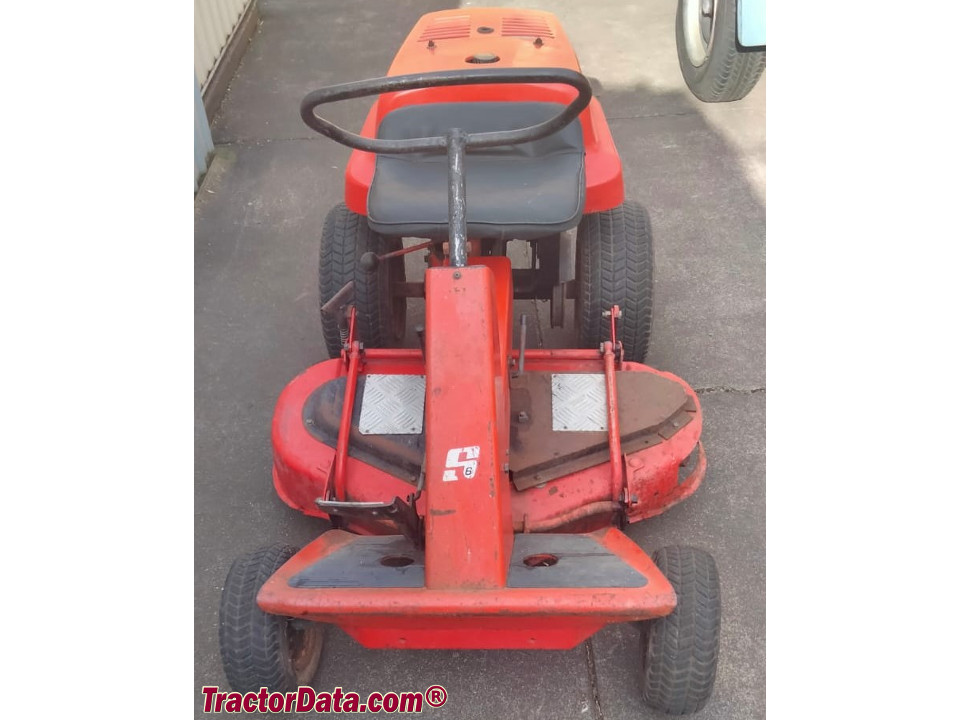

Simplicity Wonder Boy 606 riding lawn mower.
