Simplicity 6111 1690448

The Simplicity 6111 1690448 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 399 cc 24.36 ci engine. The listed engine power is Gasoline (gross): 11 hp / 8.2 kW. Transmission: 3 forward and 1 reverse. Operating weight: 112 lbs 50 kg.

Overview

	1979 - 1981 6100 SeriesGarden tractor 6100 Series Garden tractor

Production
Manufacturer	Simplicity (a part of Allis Chalmers)
Garden tractor
Built in Port Washington, Wisconsin, USA

Simplicity 6111 Engine
11HP Briggs & Stratton 399cc 1-cyl gasoline
Fuel tank	2.2 gal 8.3 L
Engine details ...

Simplicity 6111 Transmission
3-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Open operator station.

Power Take-off (PTO)
Front PTO	independent
Clutch	mechanical

Dimensions & Tires
Wheelbase	45.5 inches 115 cm
Weight	380 to 612 pounds
Front tire	15x6.00-6
Rear tire	20x8.00-10
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12
Battery AH	39

References
Lawn & Garden Equipment published in 1979, by Simplicity

Engine

Engine Detail — 399 cc / 24.36 ci Gasoline

Manufacturer	Briggs & Stratton 252707
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	399 cc 24.36 ci
Bore/Stroke	3.44x2.62 inches 87 x 67 mm
Power (gross)	11 hp 8.2 kW
Starter	electric
Starter volts	12

Transmission

Transmission — 3 forward and 1 reverse belt-driven gear

Type	belt-driven gear
Gears	3 forward and 1 reverse

Dimensions

Simplicity 6111 Tires
Lawn/turf front	15x6.00-6
Lawn/turf rear	20x8.00-10

Dimensions
Wheelbase	45.5 inches 115 cm
Length	66.25 inches 168 cm
Width	33.5 inches 85 cm
Height (steering wheel)	40 inches 101 cm
Height (hood)	32 inches 81 cm
Shipping weight	380 lbs 172 kg
	612 lbs (with mower) 277 kg

Attachments

Attachment overview
42" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

42" Mower deck
Type	mid-mount Simplicity
	3-blade
Cutting width	42 inches 106 cm
Weight	112 lbs 50 kg
Overall width	57 inches 144 cm

Photos

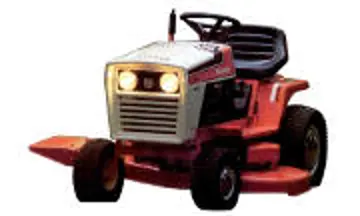

Simplicity 6111 1690448 tractor photo
