Simplicity 6211

The Simplicity 6211 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 399 cc 24.36 ci engine. The listed engine power is Gasoline (gross): 11 hp / 8.2 kW. Transmission: Tractomatic. Operating weight: 112 lbs 50 kg.

Overview

	1982 - 1985 6200 SeriesGarden tractor 6200 Series Garden tractor

Production
Manufacturer	Simplicity (a part of Allis Chalmers)
Garden tractor
Built in Port Washington, Wisconsin, USA

Variants
1690683	1981-1982
1690786	1982-1984

Simplicity 6211 Engine
11HP Briggs & Stratton 399cc 1-cyl gasoline
Fuel tank	2.2 gal 8.3 L
Engine details ...

Simplicity 6211 Transmission
3-speed gear with mechanical variator
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Front PTO	independent
Clutch	mechanical

Dimensions & Tires
Wheelbase	48.3 inches 122 cm
Weight	450 to 682 pounds
Front tire	15x6.00-6
Rear tire	23x10.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12
Battery AH	39

References
Riding Mowers and Garden Tractors published in 1982, by Simplicity

Engine

Engine Detail — 399 cc / 24.36 ci Gasoline

Manufacturer	Briggs & Stratton 252707
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	399 cc 24.36 ci
Bore/Stroke	3.44x2.62 inches 87 x 67 mm
Power (gross)	11 hp 8.2 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Tractomatic

Transmission	Tractomatic
Type	belt-driven gear with mechanical variator
Gears	3 forward and 1 reverse

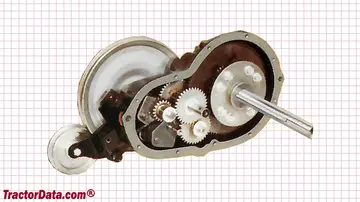

Simplicity 6211 Transmission

Dimensions

Simplicity 6211 Tires
Lawn/turf front	15x6.00-6
Lawn/turf rear	23x10.50-12

Dimensions
Wheelbase	48.3 inches 122 cm
Length	67 inches 170 cm
Width	37 inches 93 cm
Height (steering wheel)	41.4 inches 105 cm
Height (hood)	35.6 inches 90 cm
Shipping weight	450 lbs 204 kg
	682 lbs (with mower) 309 kg

Attachments

Attachment overview
42" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

42" Mower deck
Type	mid-mount Simplicity
	3-blade
Cutting width	42 inches 106 cm
Weight	112 lbs 50 kg
Overall width	57 inches 144 cm

Photos

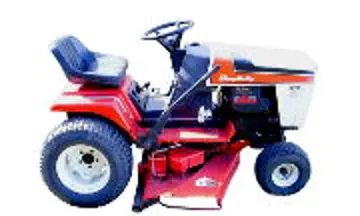

Simplicity 6211
