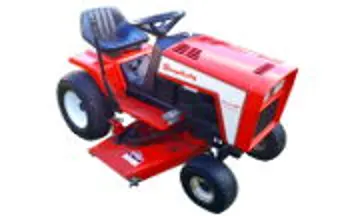

Simplicity 6212.5 1691226

The Simplicity 6212.5 1691226 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 658 cc 40.15 ci engine. The listed engine power is Gasoline (gross): 12.5 hp / 9.3 kW. Transmission: Tractomatic. Operating weight: 485 to 726 pounds.

Overview

	1987 6200 SeriesGarden tractor 6200 Series Garden tractor

Production
Manufacturer	Simplicity (a part of Allis Chalmers)
Garden tractor
Built in Port Washington, Wisconsin, USA

Simplicity 6212.5 Engine
12.5HP Briggs & Stratton 658cc 2-cyl gasoline
Fuel tank	2.2 gal 8.3 L
Engine details ...

Simplicity 6212.5 Transmission
3-speed gear with mechanical variator
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Front PTO	independent
Clutch	mechanical

Dimensions & Tires
Wheelbase	48.3 inches 122 cm
Weight	485 to 726 pounds
Front tire	15x6.00-6
Rear tire	23x10.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12
Battery AH	39

Engine

Engine Detail — 658 cc / 40.15 ci Gasoline

Manufacturer	Briggs & Stratton 404707
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft horizontally-opposed
Displacement	658 cc 40.15 ci
Bore/Stroke	3.44x2.16 inches 87 x 55 mm
Power (gross)	12.5 hp 9.3 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Tractomatic

Transmission	Tractomatic
Type	belt-driven gear with mechanical variator
Gears	3 forward and 1 reverse

Dimensions

Simplicity 6212.5 Tires
Lawn/turf front	15x6.00-6
Lawn/turf rear	23x10.50-12

Dimensions
Wheelbase	48.3 inches 122 cm
Length	67 inches 170 cm
Width	37 inches 93 cm
Height (steering wheel)	41.4 inches 105 cm
Height (hood)	35.6 inches 90 cm
Shipping weight	485 lbs 219 kg
	726 lbs*Weight with 48-in mower deck. 329 kg

Attachments

Attachment overview
42" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

Simplicity 6215.5, left side.

Simplicity 6215.5, right side.
