Simplicity 6512.5
The Simplicity 6512.5 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 658 cc 40.15 ci engine. The listed engine power is Gasoline (gross): 12.5 hp / 9.3 kW. Transmission: infinite forward and reverse. Operating weight: 114 lbs 51 kg.
Engine Power
Gasoline (gross): 12.5 hp / 9.3 kW
Fuel & Capacities
2.2 gal
8.3 L
Transmission
infinite forward and reverse
Operating Weight
114 lbs
51 kg
Overview
 | 1988 - 1989
6500 SeriesGarden tractor
6500 Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Simplicity |
Garden tractor | |
Built in Port Washington, Wisconsin, USA | |
Simplicity 6512.5 Engine | |
|---|---|
12.5HP Briggs & Stratton 658cc 2-cyl gasoline | |
Fuel tank | 2.2 gal
8.3 L |
Engine details ...  | |
Simplicity 6512.5 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Open operator station. | |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | mechanical |
Dimensions & Tires | |
|---|---|
Wheelbase | 48.3 inches
122 cm |
Weight | 485 lbs
219 kg |
Front tire | 15x6.00-6 |
Rear tire | 23x8.50-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Battery AH | 39 |
Engine
Engine Detail — 658 cc / 40.15 ci Gasoline
Manufacturer | Briggs & Stratton 404707 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft horizontally-opposed |
Displacement | 658 cc
40.15 ci |
Bore/Stroke | 3.44x2.16 inches
87 x 55 mm |
Power (gross) | 12.5 hp
9.3 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — infinite forward and reverse belt-driven hydrostatic
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
Simplicity 6512.5 Tires | |
|---|---|
Lawn/turf front | 15x6.00-6 |
Lawn/turf rear | 23x8.50-12 |
Dimensions | |
|---|---|
Wheelbase | 48.3 inches
122 cm |
Length | 67 inches
170 cm |
Width | 37 inches
93 cm |
Height (steering wheel) | 41.4 inches
105 cm |
Height (hood) | 35.6 inches
90 cm |
Shipping weight | 485 lbs
219 kg |
Attachments
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
42" Mower deck | |
|---|---|
Type | mid-mount Simplicity |
3-blade | |
Cutting width | 42 inches
106 cm |
Weight | 114 lbs
51 kg |
Overall width | 57 inches
144 cm |

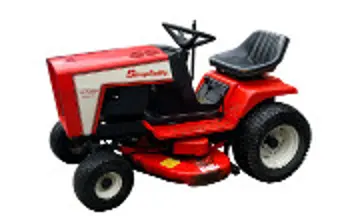

Photos
Simplicity 6512.5
Simplicity 6512.5
Simplicity 6512.5
Simplicity Lawn Tractors Simplicity 6512.5 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Simplicity Lawn Tractors Simplicity 6512.5.
Converted Equivalents:
Horsepower (HP)12.5 hp
Kilowatts (kW)9.3 kW
Metric Horsepower (PS / CV)12.7 PS
