Simplicity 7012 Landlord

The Simplicity 7012 Landlord is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 476 cc 29.07 ci engine. The listed engine power is Gasoline (gross): 12 hp / 8.9 kW. Transmission: Peerless. Operating weight: 1100 lbs 498 kg.

Overview

	1978 - 1979 7000 SeriesGarden tractor 7000 Series Garden tractor

Production
Manufacturer	Simplicity
Garden tractor

Simplicity 7012 Engine
12HP Kohler 476cc 1-cyl gasoline
Fuel tank	3 gal 11.4 L
Engine details ...

Simplicity 7012 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Open operator station.

Tractor hitch
Rear Type	0
Type	sleeve hitch

Dimensions & Tires
Weight	1100 lbs 498 kg
Front tire	18-6/8
Rear tire	23-10.5/12
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	5
Battery volts	12
Battery AH	45

References
Lawn & Garden Equipment published in 1978, by Simplicity

Engine

Engine Detail — 476 cc / 29.07 ci Gasoline

Manufacturer	Kohler K301S
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Displacement	476 cc 29.07 ci
Bore/Stroke	3.375x3.25 inches 86 x 83 mm
Power (gross)	12 hp 8.9 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Peerless

Transmission	Peerless
Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity 7012 Tires
Lawn/turf front	18-6/8
Lawn/turf rear	23-10.5/12

Dimensions
Weight	1100 lbs 498 kg

Attachments

Attachment overview
42" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

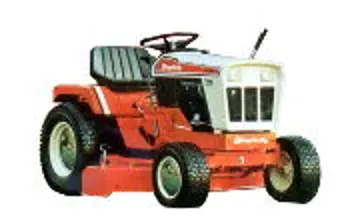

Simplicity 7012 Landlord
