Simplicity 7112 Landlord

The Simplicity 7112 Landlord is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 476 cc 29.07 ci engine. The listed engine power is Gasoline (gross): 12 hp / 8.9 kW. Transmission: 6 forward and 2 reverse.

Overview

	1979 - 1986 7100 SeriesGarden tractor 7100 Series Garden tractor

Production
Manufacturer	Simplicity
Garden tractor
Built in Port Washington, Wisconsin, USA

Variants
912	similar Deutz-Allis model

Simplicity 7112 Engine
12HP Kohler 476cc 1-cyl gasoline
Fuel tank	3 gal 11.4 L
Engine details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Dimensions & Tires
Wheelbase	50.7 inches 128 cm
Front tire	16x6.50-8
Rear tire	23x8.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Operator's Manual 7100 Series (1679625) published in 1986
Lawn & Garden Equipment published in 1979, by Simplicity
Riding Mowers and Garden Tractors published in 1982, by Simplicity

Engine

Engine Detail — 476 cc / 29.07 ci Gasoline

Manufacturer	Kohler K301
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
Displacement	476 cc 29.07 ci
Bore/Stroke	3.375x3.25 inches 86 x 83 mm
Power (gross)	12 hp 8.9 kW
Starter	electric
Starter volts	12

Transmission

Transmission options
hydrostatic
6-speed gear

Transmission — infinite forward and reverse belt-driven hydrostatic

Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Transmission — 6 forward and 2 reverse belt-driven gear

Type	belt-driven gear
Gears	6 forward and 2 reverse

Dimensions

Simplicity 7112 Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x8.50-12

Dimensions
Wheelbase	50.7 inches 128 cm
Length	70 inches 177 cm
Width	36.9 inches 93 cm
Height (steering wheel)	39.7 inches 100 cm
Height (hood)	35.7 inches 90 cm
Clearance (front axle)	8 inches 20 cm
Front tread	30 inches 76 cm
Rear tread	27 inches 68 cm

Attachments

Attachment overview
42" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

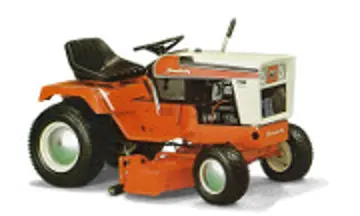

Simplicity 7112 Landlord
