Simplicity Regent 16G

The Simplicity Regent 16G is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 465 cc 28.4 ci engine. The listed engine power is Gasoline (gross): 15.5 hp / 11.6 kW. Transmission: Peerless MST 205. Operating weight: 450 lbs 204 kg.

Overview

	1997 - 1998 Model year 19971998 Regent SeriesLawn tractor Regent Series Lawn tractor

Production
Manufacturer	Simplicity
Lawn tractor
Built in Port Washington, Wisconsin, USA
Original price was $2,795 in 1997

Variants
516G	similar AGCO model

Simplicity Regent 16G Engine
15.5HP Briggs & Stratton 465cc 1-cyl gasoline
Fuel tank	2 gal 7.6 L
Engine details ...

Simplicity Regent 16G Transmission
5-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	45.5 inches 115 cm
Weight	450 lbs 204 kg
Front tire	15x6.00-6
Rear tire	18x8.50-8
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	3
Battery CCA	340
Battery volts	12

References
1997 Spring Product Guide published in 1996, by Simplicity

Engine

Engine Detail — 465 cc / 28.4 ci Gasoline

Manufacturer	Briggs & Stratton 28N707
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	465 cc 28.4 ci
Bore/Stroke	3.44x3.06 inches 87 x 78 mm
Power (gross)	15.5 hp 11.6 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Peerless MST 205

Transmission	Peerless MST 205
Type	belt-driven gear
Gears	5 forward and 1 reverse

Dimensions

Simplicity Regent 16G Tires
Lawn/turf front	15x6.00-6
Lawn/turf rear	18x8.50-8

Dimensions
Wheelbase	45.5 inches 115 cm
Length	67.75 inches 172 cm
Width	35 inches 88 cm
Height (steering wheel)	41.25 inches 104 cm
Weight	450 lbs 204 kg

Attachments

Attachment overview
38" mid-mount mower deck
44" mid-mount mower deck
Snowblower
Blade

Photos

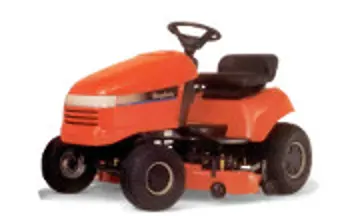

Simplicity Regent 16G tractor photo
