Simplicity 808

The Simplicity 808 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 318 cc 19.44 ci engine. The listed engine power is Gasoline (listed): 8 hp / 6.0 kW. Transmission: 2 forward and reverse. Operating weight: 416 lbs 188 kg.

Overview

	1973 - 1974 Wonder Boy SeriesRiding lawn mower Wonder Boy Series Riding lawn mower

Production
Manufacturer	Simplicity (a part of Allis Chalmers)
Riding lawn mower
Built in Port Washington, Wisconsin, USA

Simplicity 808 Engine
8HP Briggs & Stratton 318cc 1-cyl gasoline
Engine details ...

Simplicity 808 Transmission
2-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Dimensions & Tires
Wheelbase	44.375 inches 112 cm
Weight	416 lbs 188 kg
Front tire	4.10/3.50x4
Rear tire	16.00/6.50x8
Full dimensions and tires ...

Engine

Engine Detail — 318 cc / 19.44 ci Gasoline

Manufacturer	Briggs & Stratton 190702
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	318 cc 19.44 ci
Bore/Stroke	3.00x2.75 inches 76 x 70 mm
Power	8 hp 6.0 kW
Starter type	manual recoil
	electric OptOptional

Transmission

Transmission — 2 forward and reverse belt-driven gear

Type	belt-driven gear
Gears	2 forward and reverse

Dimensions

Simplicity 808 Tires
Lawn/turf front	4.10/3.50x4
Lawn/turf rear	16.00/6.50x8

Dimensions
Wheelbase	44.375 inches 112 cm
Length	57.75 inches 146 cm
Width	28.25 inches 71 cm
Shipping weight	416 lbs 188 kg

Attachments

30" Mower deck
Type	mid-mount Simplicity
	1-blade
Cutting width	30 inches 76 cm
Overall width	40.25 inches 102 cm
Cut height	1.5 to 3.5 inch 3 to 8 cm

Photos

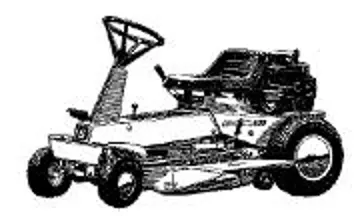

Simplicity 808 tractor photo
