Simplicity Broadmoor 5008 1690008

The Simplicity Broadmoor 5008 1690008 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 318 cc 19.44 ci engine. The listed engine power is Gasoline (gross): 8 hp / 6.0 kW. Transmission: 3 forward and 1 reverse. Operating weight: 336 to 423 pounds.

Overview

	1974 - 1976 Broadmoor SeriesGarden tractor Broadmoor Series Garden tractor

Production
Manufacturer	Simplicity
Garden tractor
The 5008 Broadmoor carried Simplicity model number 1690008.

Variants
608	similar Allis Chalmers model

Simplicity Broadmoor 5008 Engine
8HP Briggs & Stratton 318cc 1-cyl gasoline
Fuel tank	0.875 gal 3.3 L
Engine details ...

Simplicity Broadmoor 5008 Transmission
3-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
External band brakes
Open operator station.

Dimensions & Tires
Wheelbase	42.65 inches 108 cm
Weight	336 to 423 pounds
Front tire	5.30/4.50-6
Rear tire	18x9.50-8
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 318 cc / 19.44 ci Gasoline

Manufacturer	Briggs & Stratton
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Displacement	318 cc 19.44 ci
Bore/Stroke	3.00x2.75 inches 76 x 70 mm
Power (gross)	8 hp 6.0 kW
Air cleaner	foam element
Rated RPM	3600
Idle RPM	1400-3600
Starter volts	12
Oil capacity	1.1 qts 1.0 L
Oil change	25 h

Transmission

Transmission — 3 forward and 1 reverse gear

Type	gear
Gears	3 forward and 1 reverse
Oil capacity	1 qts 0.9 L

Dimensions

Simplicity Broadmoor 5008 Tires
Lawn/turf front	5.30/4.50-6
Lawn/turf rear	18x9.50-8

Dimensions
Wheelbase	42.65 inches 108 cm
Length	59 inches 149 cm
Width	31.5 inches 80 cm
Height (steering wheel)	33.6 inches 85 cm
Height (hood)	30.5 inches 77 cm
Shipping weight	336 lbs 152 kg
	423 lbs (with mower) 191 kg

Attachments

Attachment overview
36" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

36" Mower deck
Type	mid-mount Simplicity
	3-blade with manual lift
Cutting width	36 inches 91 cm

Photos

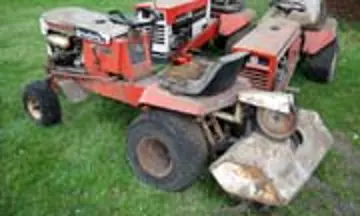

Simplicity Broadmoor 5008 1690008
