Simplicity Broadmoor 6HP 990303

The Simplicity Broadmoor 6HP 990303 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 231 cc 14.11 ci engine. The listed engine power is Gasoline (gross): 6 hp / 4.5 kW. Transmission: 2 forward and 1 reverse. Operating weight: 87 lbs 39 kg.

Overview

	1964 - 1966 Broadmoor SeriesLawn tractor Broadmoor Series Lawn tractor

Production
Manufacturer	Simplicity
Lawn tractor
Built in Port Washington, Wisconsin, USA

Variants
990303	large tire electric start
990288	large tire recoil start
990287	small tire recoil start

Simplicity Broadmoor 6HP Engine
6HP Briggs & Stratton 231cc 1-cyl gasoline
Engine details ...

Simplicity Broadmoor 6HP Transmission
2-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Front PTO	independent
Clutch	mechanical

Dimensions & Tires
Wheelbase	41.5 inches 105 cm
Front tire	4.10x6
Rear tire	5.70x8
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Operator's Manual Broadmoor published in 1963
Do it with Simplicity published in 1964

Engine

Engine Detail — 231 cc / 14.11 ci Gasoline

Manufacturer	Briggs & Stratton 146702
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	231 cc 14.11 ci
Bore/Stroke	2.75x2.375 inches 70 x 60 mm
Power (gross)	6 hp 4.5 kW
Starter	manual recoil
	electric OptOptional
Starter volts	12

Transmission

Transmission — 2 forward and 1 reverse belt-driven gear

Type	belt-driven gear
Gears	2 forward and 1 reverse

Dimensions

Simplicity Broadmoor 6HP Tires
Lawn/turf front	4.10x6
	5.30x6
Lawn/turf rear	5.70x8
	9.50x8

Dimensions
Wheelbase	41.5 inches 105 cm
Length	57 inches 144 cm
Width	29.25 inches 74 cm
Height (steering wheel)	33.5 inches 85 cm
Height (hood)	31.5 inches 80 cm

Attachments

Attachment overview
32" mid-mount mower deck
Snowblower
Blade

32" Mower deck
Type	mid-mount Simplicity
	2-blade with manual lift
Cutting width	32 inches 81 cm
Weight	87 lbs 39 kg
Cut height	1.625 to 3.5 inch 4 to 8 cm

Photos

Simplicity Broadmoor 6HP with mower deck, right side.

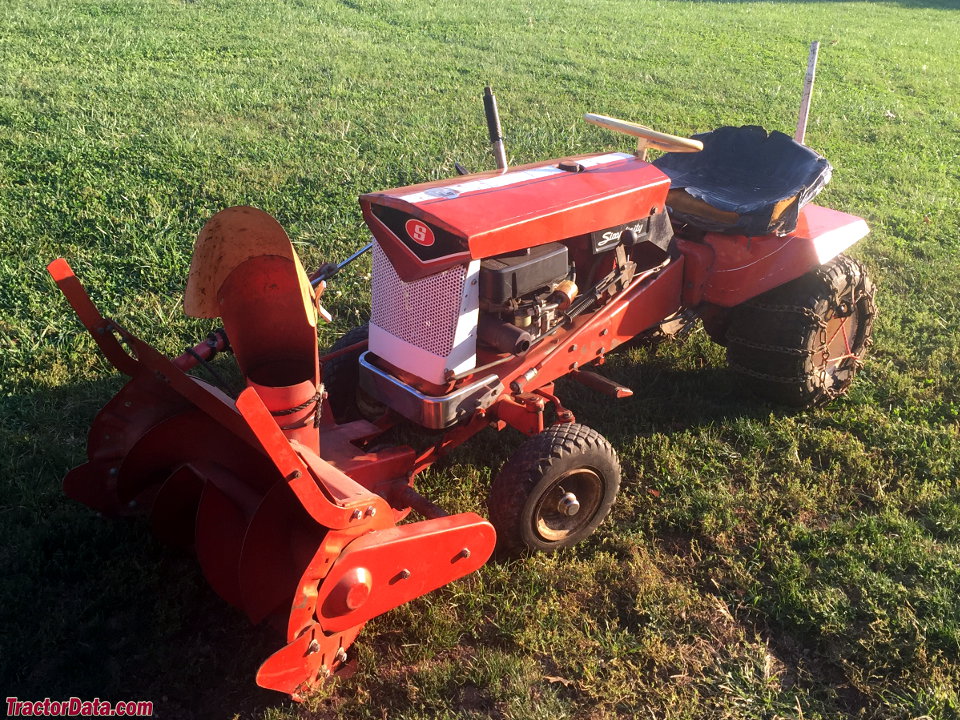

Simplicity Broadmoor 6HP with snow blower, left side.
