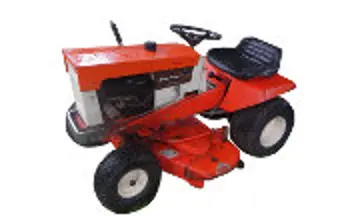

Simplicity Broadmoor 728 990577
The Simplicity Broadmoor 728 990577 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 318 cc 19.44 ci engine. The listed engine power is Gasoline (gross): 8 hp / 6.0 kW. Transmission: 3 forward and 1 reverse. Operating weight: 87 lbs 39 kg.
Overview
 | 1970 - 1972
Model year 1970-19711972
Broadmoor SeriesGarden tractor
Broadmoor Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Simplicity (a part of Allis Chalmers) |
Garden tractor | |
Built in Port Washington, Wisconsin, USA | |
Simplicity Broadmoor 728 Engine | |
|---|---|
8HP Briggs & Stratton 318cc 1-cyl gasoline | |
Fuel tank | 1 gal
3.8 L |
Engine details ...  | |
Simplicity Broadmoor 728 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | mechanical |
Dimensions & Tires | |
|---|---|
Wheelbase | 41.5 inches
105 cm |
Weight | 336 lbs
152 kg |
Front tire | 5.30x6 |
Rear tire | 18x9.50-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Battery AH | 32 |
References | |
|---|---|
 | |
1970 published by Simplicity | |
We offer Simplicity published in 1971 |
Engine
Engine Detail — 318 cc / 19.44 ci Gasoline
Manufacturer | Briggs & Stratton 191701 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 318 cc
19.44 ci |
Bore/Stroke | 3.00x2.75 inches
76 x 70 mm |
Power (gross) | 8 hp
6.0 kW |
Starter | electric |
Starter volts | 12 |
Oil capacity | 1.125 qts
1.1 L |
Transmission
Transmission — 3 forward and 1 reverse belt-driven gear
Type | belt-driven gear |
Gears | 3 forward and 1 reverse |
Oil capacity | 1 qts
0.9 L |
 | |
Dimensions
Simplicity Broadmoor 728 Tires | |
|---|---|
Lawn/turf front | 5.30x6 |
Lawn/turf rear | 18x9.50-8 |
Dimensions | |
|---|---|
Wheelbase | 41.5 inches
105 cm |
Length | 58.25 inches
147 cm |
Width | 29.5 inches
74 cm |
Height (steering wheel) | 33.6 inches
85 cm |
Weight | 336 lbs*Weight of tractor only.
152 kg |
Attachments
Attachment overview | |
|---|---|
36" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
36" Mower deck | |
|---|---|
Type | mid-mount Simplicity 422 |
3-blade with manual lift | |
Cutting width | 36 inches
91 cm |
Weight | 87 lbs
39 kg |
Overall width | 40 inches
101 cm |
Cut height | 1.625 to 3.125 inch
4 to 7 cm |
Photos

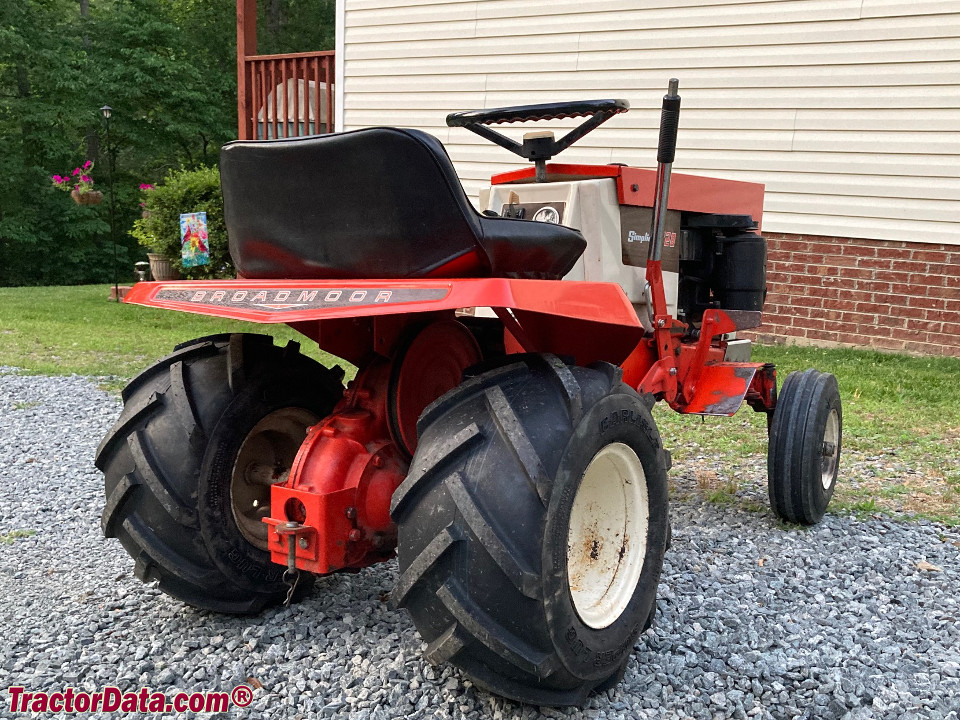

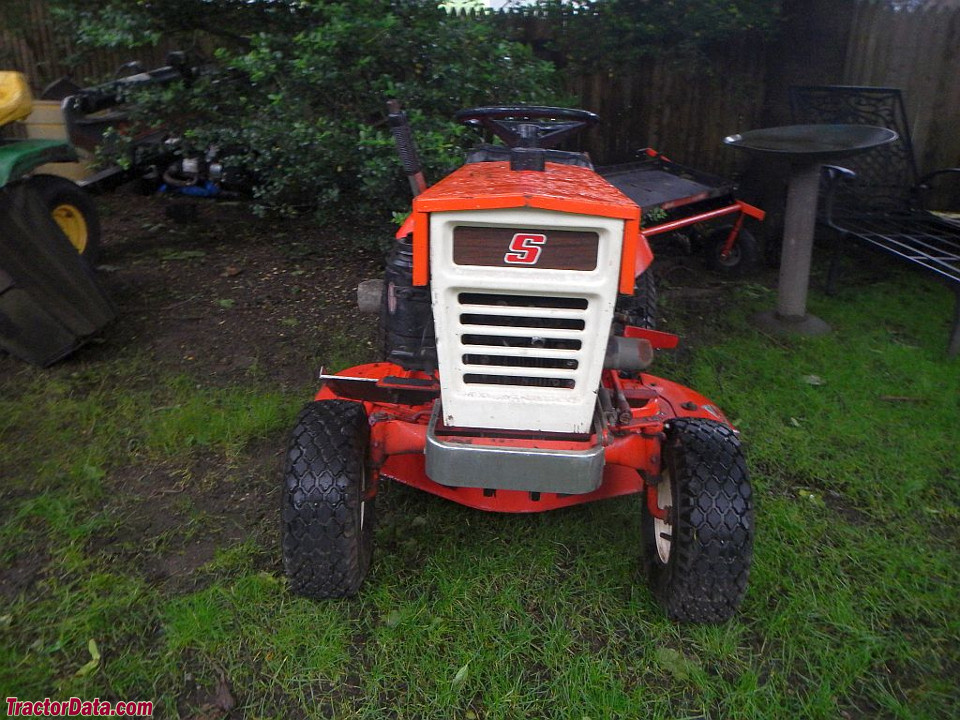

Simplicity Broadmoor 728.

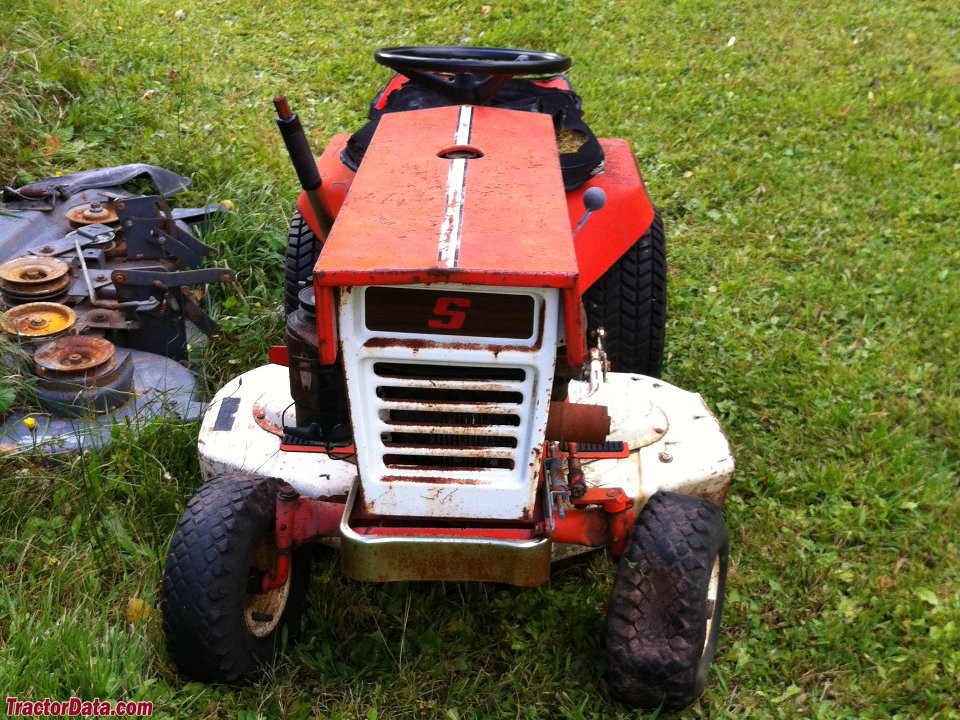

Simplicity Broadmoor 728.

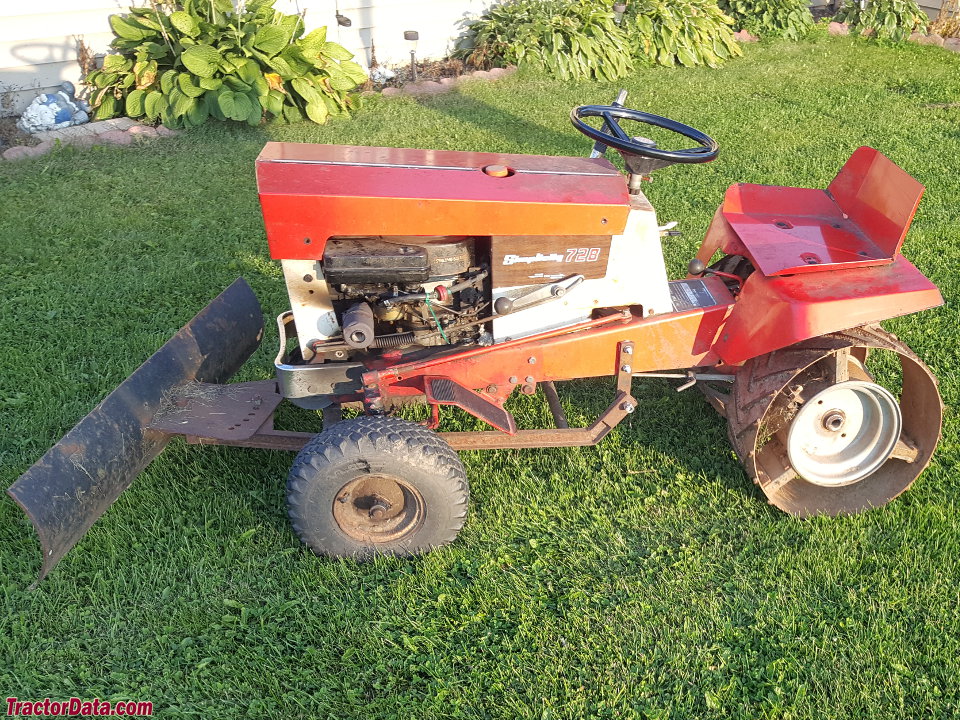

Simplicity Broadmoor 728 with front blade.

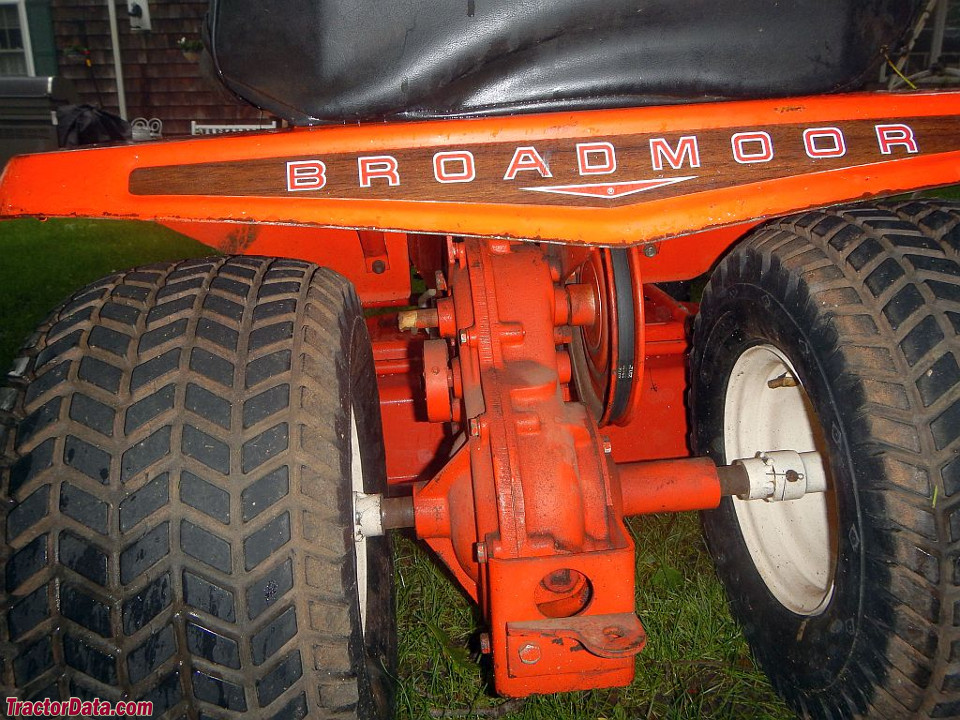

Simplicity Broadmoor 728 with left-side clutch/brake.

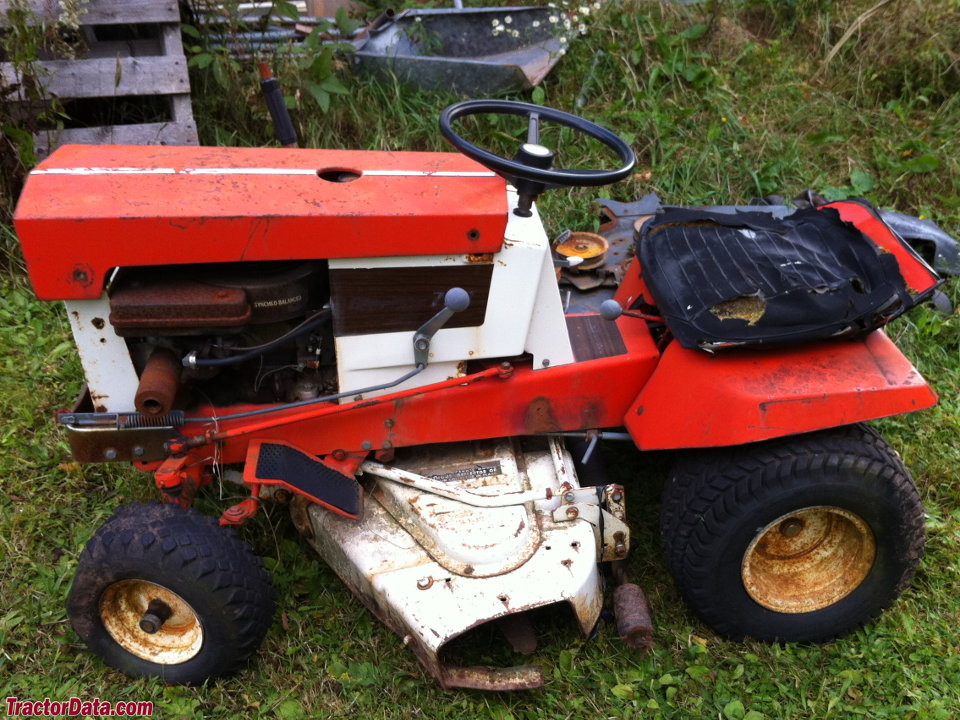

Simplicity Broadmoor 728 with left-side clutch/brake.
Simplicity Broadmoor 728 with left-side clutch/brake.
Simplicity Broadmoor 728 with left-side clutch/brake.

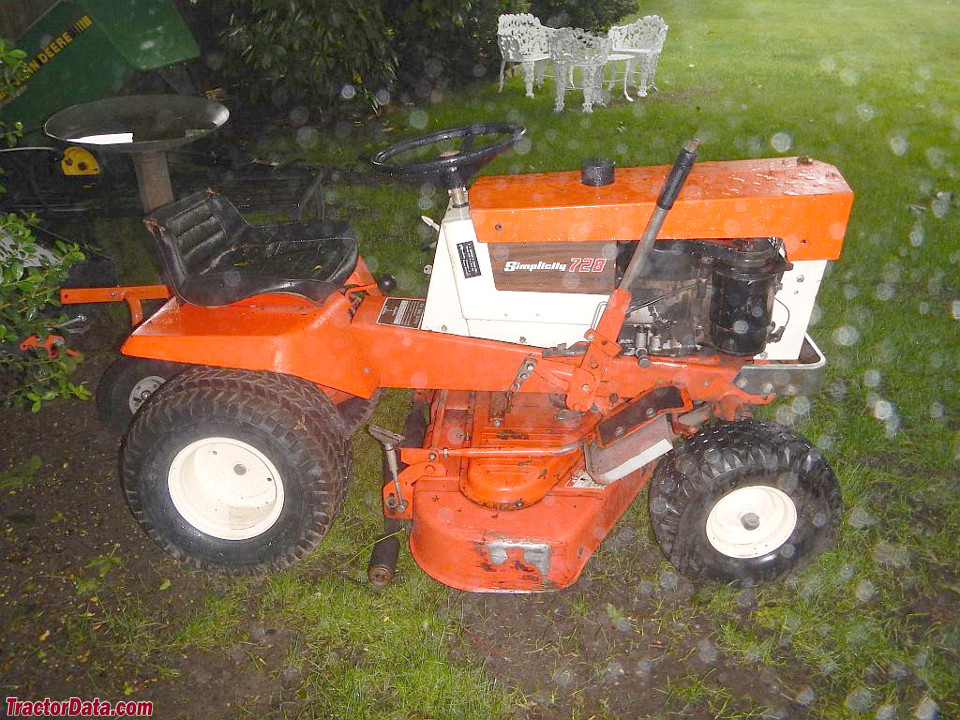

Simplicity Broadmoor 728 with mower deck.

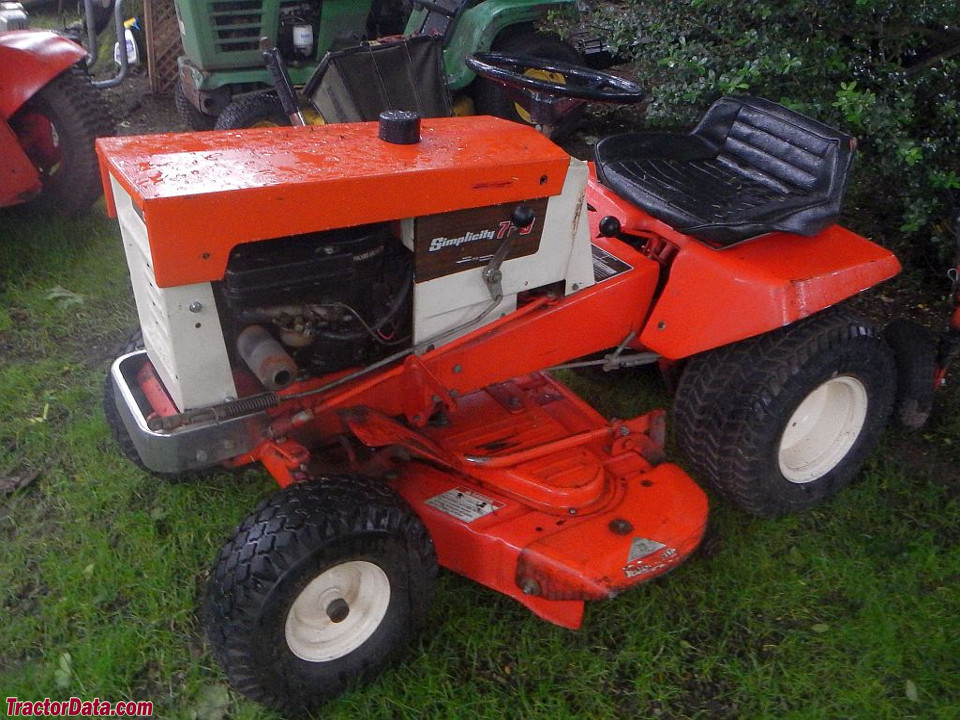

Simplicity Broadmoor 728 with mower deck.
