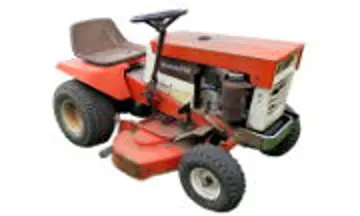

Simplicity Broadmoor 738

The Simplicity Broadmoor 738 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 318 cc 19.44 ci engine. The listed engine power is Gasoline (gross): 8 hp / 6.0 kW. Transmission: 3 forward and 1 reverse. Operating weight: 336 to 423 pounds.

Overview

	1973 - 1974 Broadmoor SeriesGarden tractor Broadmoor Series Garden tractor

Production
Manufacturer	Simplicity
Garden tractor
The model Broadmoor 738 carried Simplicity model number 990898.

Simplicity Broadmoor 738 Engine
8HP Briggs & Stratton 318cc 1-cyl gasoline
Fuel tank	1 gal 3.8 L
Engine details ...

Simplicity Broadmoor 738 Transmission
3-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
External band brakes
Open operator station.

Dimensions & Tires
Wheelbase	41.5 inches 105 cm
Weight	336 to 423 pounds
Front tire	5.30x6
Rear tire	18x9.50-8
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12
Battery AH	32

References
Lawn Tractors published in 1973, by Simplicity
Tractors and Attachments published in 1974, by Simplicity

Engine

Engine Detail — 318 cc / 19.44 ci Gasoline

Manufacturer	Briggs & Stratton 191701
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Displacement	318 cc 19.44 ci
Bore/Stroke	3.00x2.75 inches 76 x 70 mm
Power (gross)	8 hp 6.0 kW
Air cleaner	foam element
Rated RPM	3600
Starter	electric
Starter volts	12
Oil capacity	1.1 qts 1.0 L
Oil change	25 h

Transmission

Transmission — 3 forward and 1 reverse gear

Type	gear
Gears	3 forward and 1 reverse
Oil capacity	1 qts 0.9 L

Dimensions

Simplicity Broadmoor 738 Tires
Lawn/turf front	5.30x6
Lawn/turf rear	18x9.50-8

Dimensions
Wheelbase	41.5 inches 105 cm
Length	58.25 inches 147 cm
Width	31 inches 78 cm
Height (steering wheel)	33.6 inches 85 cm
Height (hood)	30.5 inches 77 cm
Shipping weight	336 lbs 152 kg
	423 lbs (with mower) 191 kg

Attachments

Attachment overview
36" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

36" Mower deck
Type	mid-mount Simplicity
	3-blade with manual lift
Cutting width	36 inches 91 cm

Photos

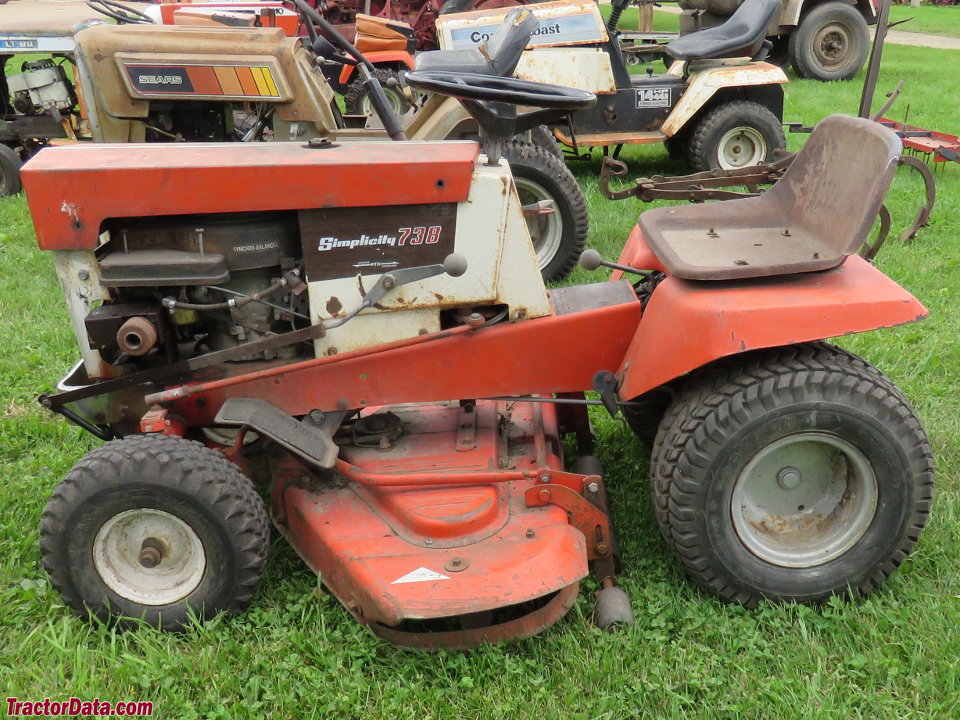

Simplicity Broadmoor 738

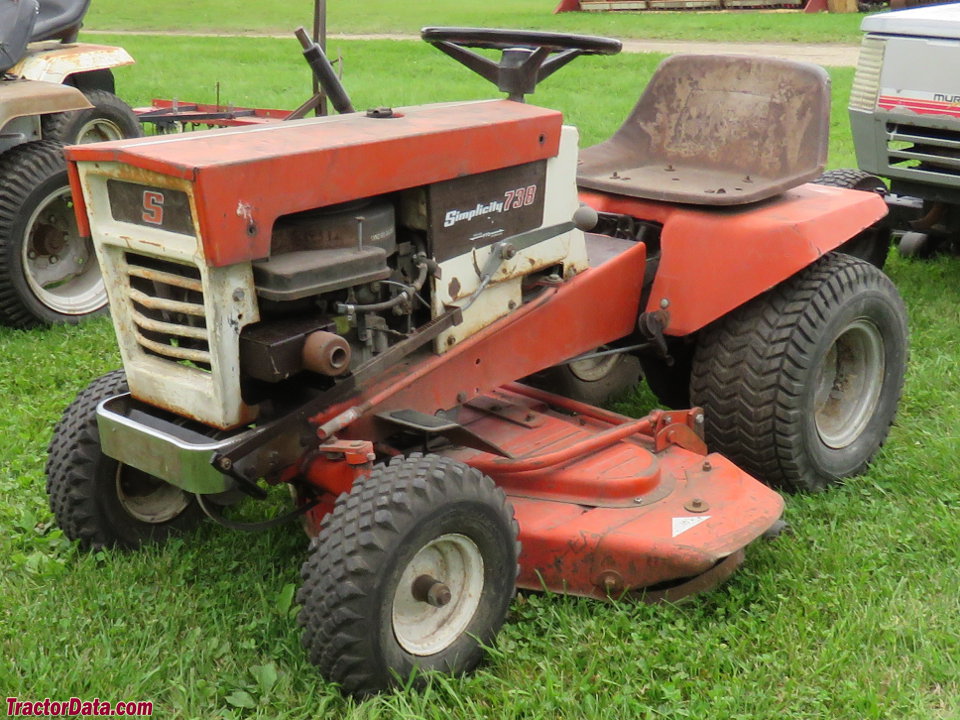

Simplicity Broadmoor 738

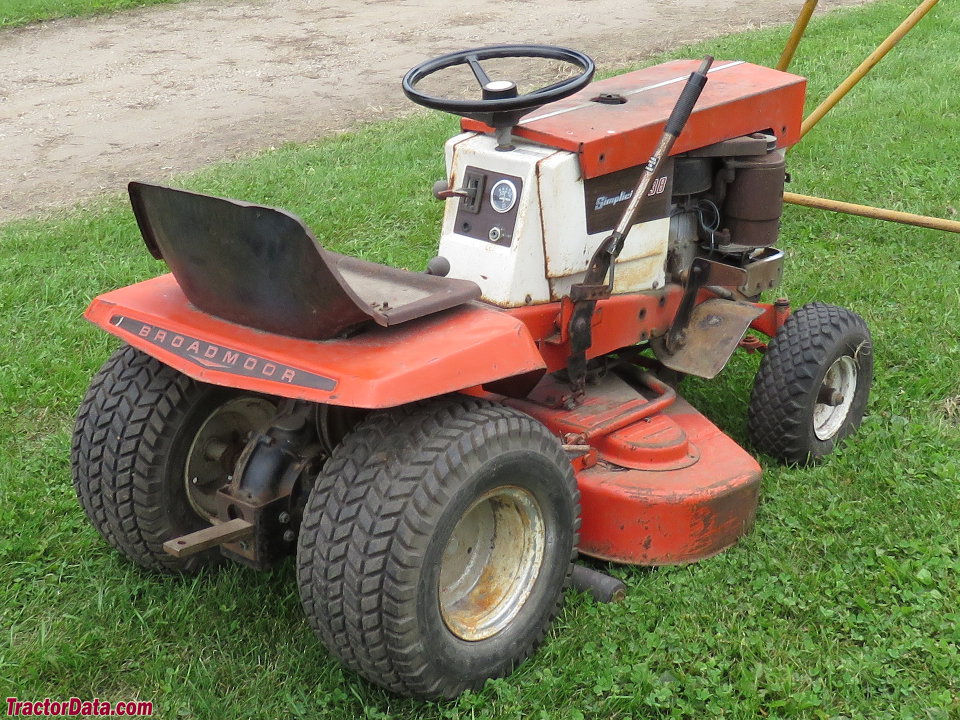

Simplicity Broadmoor 738

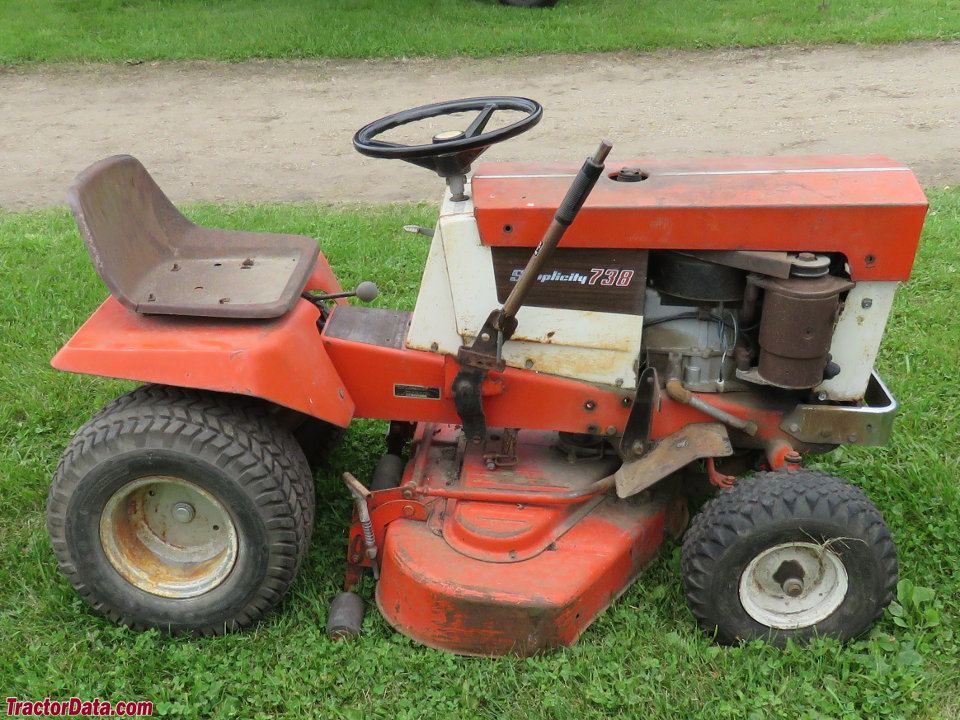

Simplicity Broadmoor 738

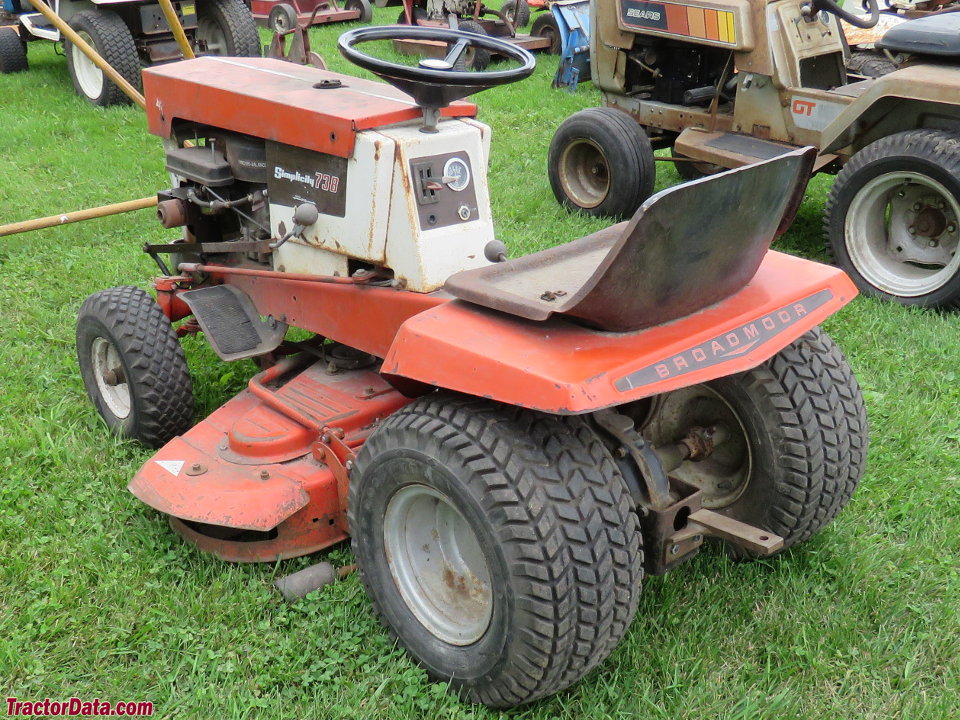

Simplicity Broadmoor 738

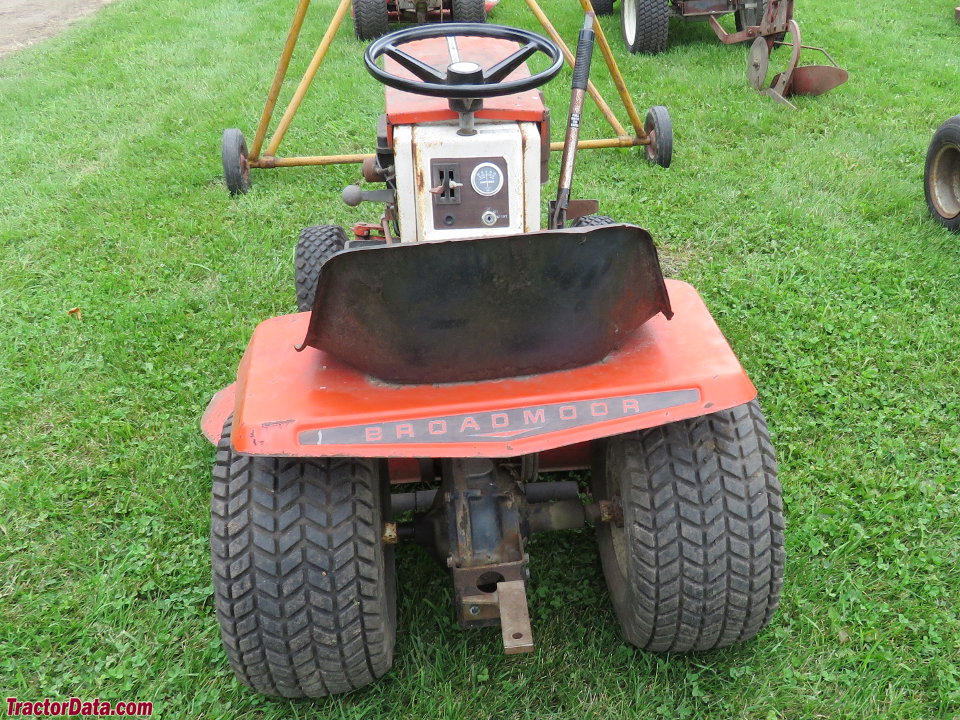

Simplicity Broadmoor 738

Simplicity Broadmoor 738

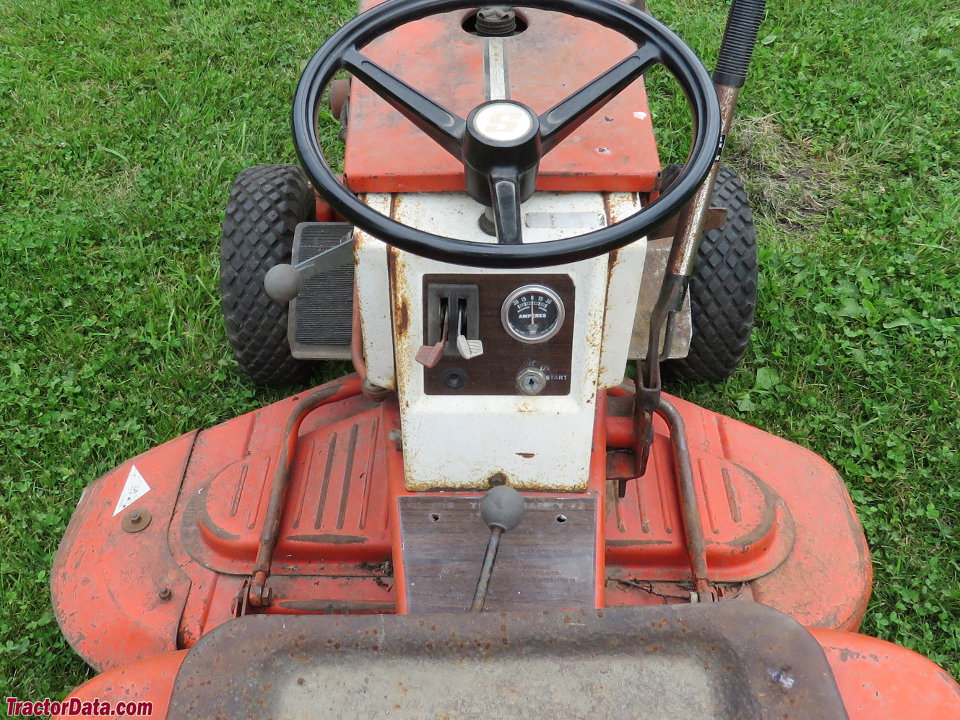

Simplicity Broadmoor 738 operator station and controls.
