Simplicity Champion 20/44

The Simplicity Champion 20/44 is a tractor produced by Simplicity Lawn Tractors. The listed engine power is Engine 1 (listed): 20 hp / 14.9 kW. Transmission: Hydro-Gear. Operating weight: 712 lbs 322 kg.

Overview

	2006 - 2007 Champion SeriesZero-turn mower Champion Series Zero-turn mower

Production
Manufacturer	Simplicity (a part of Briggs & Stratton)
Zero-turn mower
Original price was $4,850 in 2006

Simplicity Champion 20/44 Engine
20HP Kohler 1-cyl
Fuel tank	6.5 gal 24.6 L
Engine details ...

Simplicity Champion 20/44 Transmission
hydrostatic
Transmission details ...

Mechanical
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	41 inches 104 cm
Weight	712 lbs 322 kg
Front tire	11x4-5
Rear tire	20x8-10
Full dimensions and tires ...

Electrical
Ground	negative
Battery CCA	340
Battery volts	12

Engine

Manufacturer	Kohler Courage
Configuration	1-cylinder
Power	20 hp 14.9 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Hydro-Gear

Transmission	Hydro-Gear
Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Champion 20/44 Tires
Lawn/turf front	11x4-5
Lawn/turf rear	20x8-10

Dimensions
Wheelbase	41 inches 104 cm
Length	78 inches 198 cm
Height	42 inches 106 cm
Weight	712 lbs 322 kg

Attachments

44" Mower deck
Type	mid-mount Simplicity
	3-blade with manual lift
Cutting width	44 inches 111 cm
Overall width	55 inches 139 cm
Cut height	1.5 to 4.5 inch 3 to 11 cm
Cut positions	7

Photos

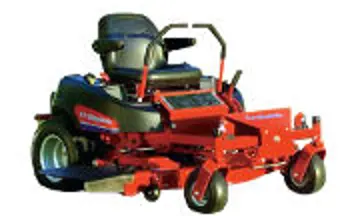

Simplicity Champion 20/44 tractor photo
