Simplicity Javelin 20/38

The Simplicity Javelin 20/38 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 596 cc 36.4 ci engine. The listed engine power is Engine Detail — 596 cc / 36.4 ci (listed): 20 hp / 14.9 kW. Transmission: Hydro-Gear EZT. Operating weight: 520 lbs 235 kg.

Overview

	2006 - 2008 Javelin SeriesZero-turn mower Javelin Series Zero-turn mower

Production
Manufacturer	Simplicity (a part of Briggs & Stratton)
Zero-turn mower
Original price was $3,300 in 2006

Simplicity Javelin 20/38 Engine
20HP Kohler 596cc 1-cyl
Fuel tank	3 gal 11.4 L
Engine details ...

Simplicity Javelin 20/38 Transmission
hydrostatic
Transmission details ...

Mechanical
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	48 inches 121 cm
Weight	520 lbs 235 kg
Front tire	11x4-4
Rear tire	18x6.5-8
Full dimensions and tires ...

Electrical
Ground	negative
Battery CCA	230
Battery volts	12

References
Product Guide 2008 published by Simplicity

Engine

Engine Detail — 596 cc / 36.4 ci

Manufacturer	Kohler Courage
Configuration	1-cylinder
Displacement	596 cc 36.4 ci
Power	20 hp 14.9 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Hydro-Gear EZT

Transmission	Hydro-Gear EZT
Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Javelin 20/38 Tires
Lawn/turf front	11x4-4
Lawn/turf rear	18x6.5-8

Dimensions
Wheelbase	48 inches 121 cm
Length	72 inches 182 cm
Height	38 inches 96 cm
Weight	520 lbs 235 kg

Attachments

38" Mower deck
Type	mid-mount Simplicity
	2-blade with manual lift
Cutting width	38 inches 96 cm
Overall width	49 inches 124 cm
Cut height	1.5 to 4 inch 3 to 10 cm
Cut positions	6

Photos

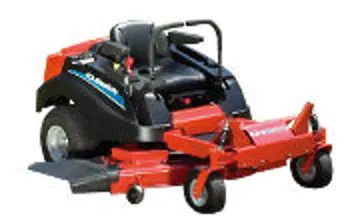

Simplicity Javelin 20/38 tractor photo
