Simplicity Landlord 2012

The Simplicity Landlord 2012 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 392 cc 23.94 ci engine. The listed engine power is Gasoline (gross): 12 hp / 8.9 kW. Transmission: 6 forward and 2 reverse. Operating weight: 690 lbs 312 kg.

Overview

	1967 Landlord SeriesGarden tractor Landlord Series Garden tractor

Production
Manufacturer	Simplicity (a part of Allis Chalmers)
Garden tractor
Built in Port Washington, Wisconsin, USA

Variants
990399	mechanical lift
990400	hydraulic lift

Simplicity Landlord 2012 Engine
12HP Briggs & Stratton 392cc 1-cyl gasoline
Engine details ...

Mechanical
Two-wheel drive
Manual steering
Mechanical band brakes
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	mechanical idler pulley

Dimensions & Tires
Wheelbase	44.5 inches 113 cm
Weight	690 lbs 312 kg
Front tire	4.80-8
Rear tire	8.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
New Landlord 2012 published in 1967, by Simplicity

Engine

Engine Detail — 392 cc / 23.94 ci Gasoline

Manufacturer	Briggs & Stratton 243431
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
Displacement	392 cc 23.94 ci
Bore/Stroke	3.0625x3.25 inches 78 x 83 mm
Power (gross)	12 hp 8.9 kW
Starter	electric
Starter volts	12
Oil change	25 h

Transmission

Transmission options
3-speed gear
6-speed

Transmission — 3 forward and 1 reverse shaft-driven gear

Type	shaft-driven gear
Gears	3 forward and 1 reverse
Oil capacity	1.5 qts 1.4 L
Oil type	SAE 90

Transmission — 6 forward and 2 reverse

Gears

6 forward and 2 reverse

Dimensions

Simplicity Landlord 2012 Tires
Lawn/turf front	4.80-8
Lawn/turf rear	8.50-12

Dimensions
Wheelbase	44.5 inches 113 cm
Length	63 inches 160 cm
Width	34 inches 86 cm
Height (steering wheel)	37 inches 93 cm
Height (hood)	33 inches 83 cm
Shipping weight	690 lbs 312 kg

Attachments

Attachment overview
42" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

42" Mower deck
Type	mid-mount Simplicity
	3-blade, lift is manual or hydraulic OptOptional
Cutting width	42 inches 106 cm
Overall width	47.5 inches 120 cm
Cut height	1.625 to 3.125 inch 4 to 7 cm

Photos

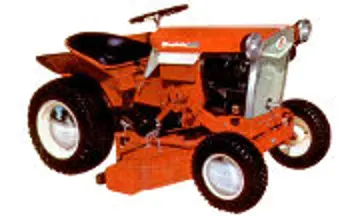

Simplicity Landlord 2012

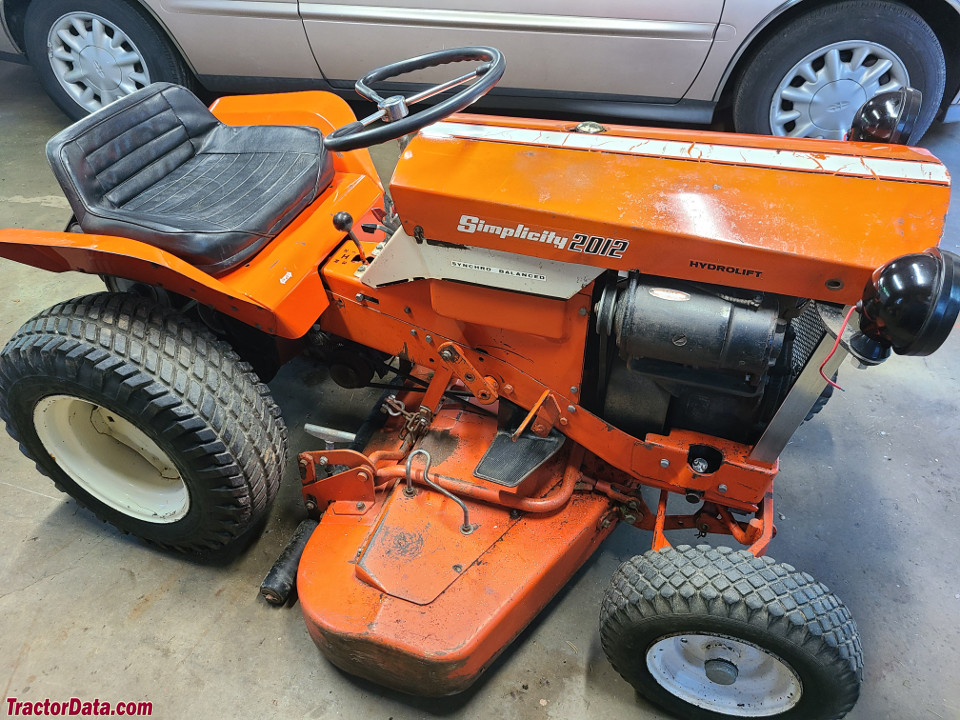

Simplicity Landlord 2012

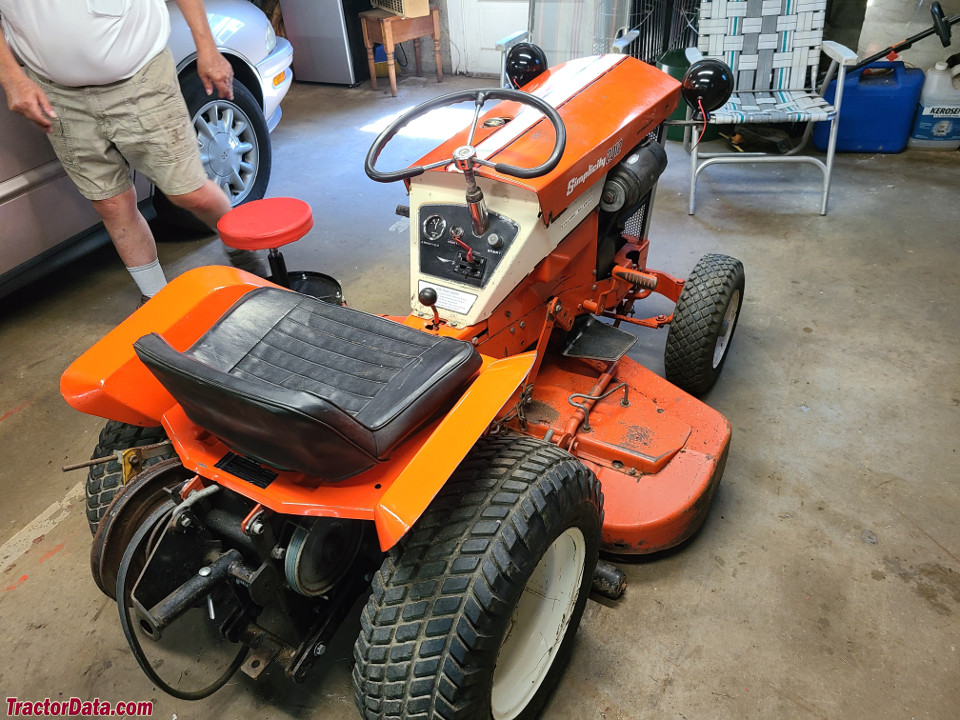

Simplicity Landlord 2012

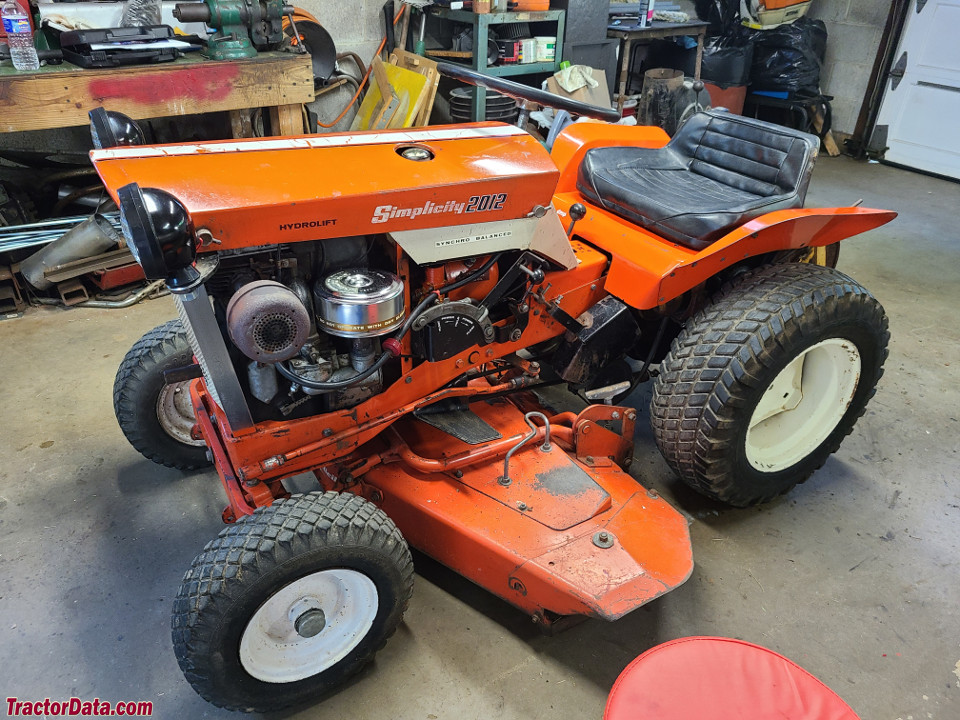

Simplicity Landlord 2012
