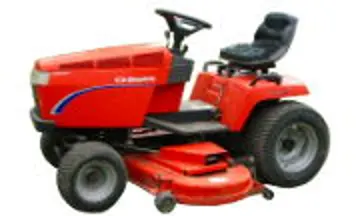

Simplicity Landlord 20 DLX

The Simplicity Landlord 20 DLX is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 569 cc 34.75 ci engine. The listed engine power is Gasoline (gross): 20 hp / 14.9 kW. Transmission: Tuff Torq K71. Operating weight: 135 lbs 61 kg.

Overview

	1998 - 2001 Landlord SeriesGarden tractor Landlord Series Garden tractor

Production
Manufacturer	Simplicity
Garden tractor
Built in Port Washington, Wisconsin, USA

Variants
1720H	similar AGCO model
2720H	similar Massey Ferguson model

Simplicity Landlord 20 DLX Engine
20HP Vanguard 569cc 2-cyl gasoline
Fuel tank	4.25 gal 16.1 L
Engine details ...

Simplicity Landlord 20 DLX Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Differential lock	mechanical rear
Power steering
Open operator station.

Tractor hitch
Type	sleeve hitch OptOptional

Power Take-off (PTO)
Mid PTO	independent
Clutch	electro-magnetic
Mid PTO Type	pulley

Dimensions & Tires
Wheelbase	52.25 inches 132 cm
Weight	560 lbs 254 kg
Front tire	16x6.50-8
Rear tire	23x10.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	16
Battery CCA	340
Battery volts	12

References
The way to a beautiful lawn. published in 2000, by Simplicity
Product Guide Fall 1998 published by Simplicity
Product Guide Spring 1999 published by Simplicity
Product Guide 2000 published by Simplicity
Product Guide Fall 2001 published by Simplicity

Engine

Engine Detail — 569 cc / 34.75 ci Gasoline

Manufacturer	Vanguard 351777
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	569 cc 34.75 ci
Bore/Stroke	2.83x2.75 inches 72 x 70 mm
Power (gross)	20 hp 14.9 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Tuff Torq K71

Transmission	Tuff Torq K71
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Landlord 20 DLX Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x10.50-12

Dimensions
Wheelbase	52.25 inches 132 cm
Length	75.25 inches 191 cm
Width	39 inches 99 cm
Height (steering wheel)	42.5 inches 107 cm
Height (hood)	36 inches 91 cm
Shipping weight	560 lbs 254 kg

Attachments

Attachment overview
50" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

50" Mower deck
Type	mid-mount Simplicity 1692688
	3-blade
Cutting width	50 inches 127 cm
Weight	135 lbs 61 kg
Overall width	62 inches 157 cm
Cut height	1 to 3.6 inch 2 to 9 cm

Photos

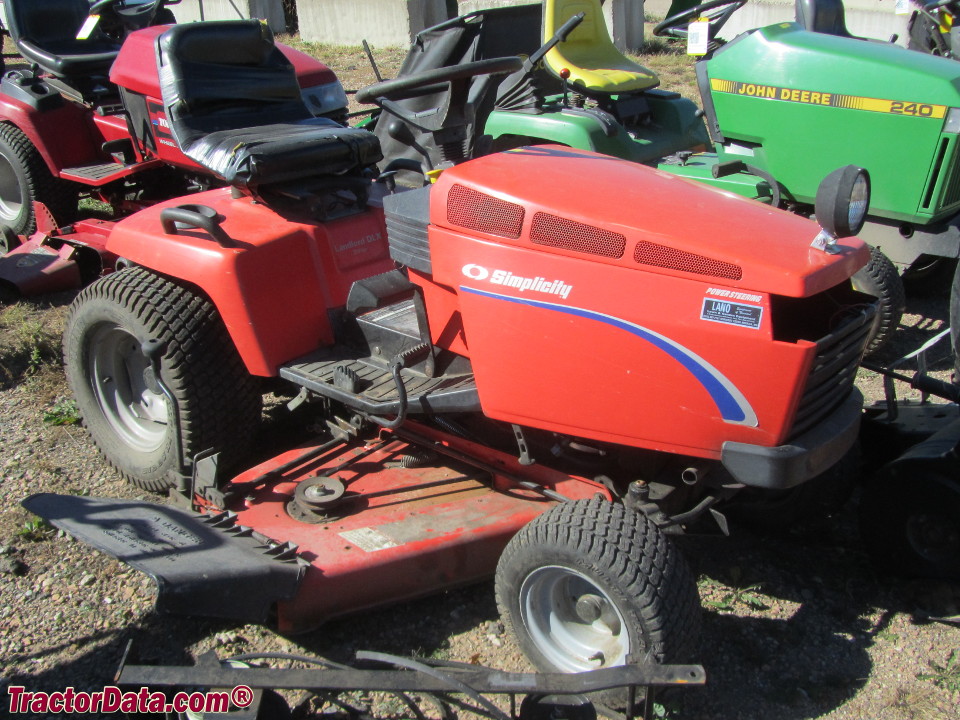

Simplicity Landlord 20 DLX

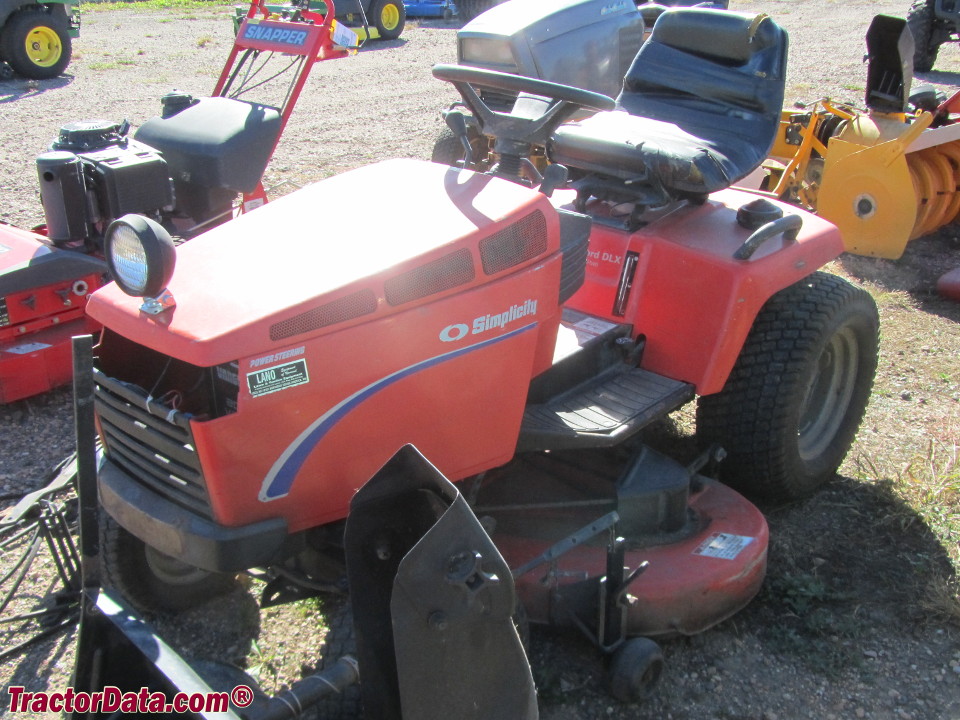

Simplicity Landlord 20 DLX

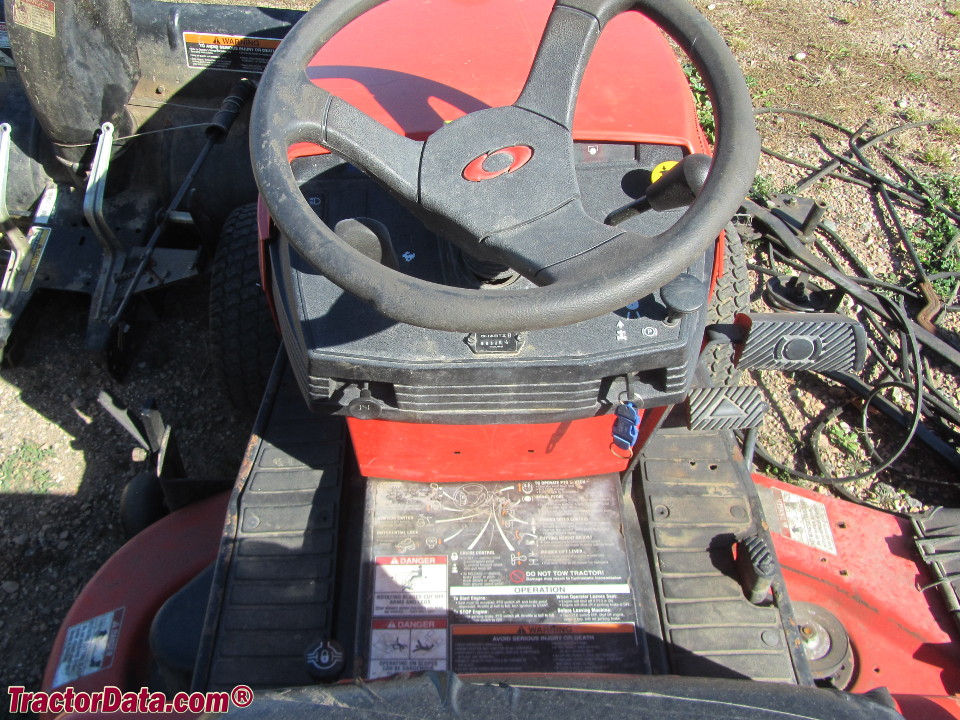

Simplicity Landlord 20 DLX operator station and controls.
