Simplicity Regent 12.5H

The Simplicity Regent 12.5H is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 465 cc 28.4 ci engine. The listed engine power is Gasoline (gross): 12.5 hp / 9.3 kW. Transmission: Hydro-Gear. Operating weight: 94 lbs 42 kg.

Overview

	1993 - 1995 Regent SeriesLawn tractor Regent Series Lawn tractor

Production
Manufacturer	Simplicity
Lawn tractor
Original price was $2,500 in 1993

Variants
12.5G	gear
12.5H	hydrostatic
512H	similar AGCO model
2512H	similar Massey Ferguson model

Simplicity Regent 12.5H Engine
12.5HP Briggs & Stratton 465cc 1-cyl gasoline
Fuel tank	2.2 gal 8.3 L
Engine details ...

Simplicity Regent 12.5H Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	manual

Dimensions & Tires
Wheelbase	45.5 inches 115 cm
Weight	436 lbs 197 kg
Front tire	15x6.00x6
Rear tire	18x6.60x6
Full dimensions and tires ...

Electrical
Charging amps	3
Battery volts	12
Battery AH	39

References
Tractors & Riding Mowers published in 1994, by Simplicity
Tractors & Riding Mowers published in 1995, by Simplicity
1993 Price List published in 1992, by Simplicity
1994 Price List published in 1993, by Simplicity
Operator's Manual Regent Series published in 1993

Engine

Engine Detail — 465 cc / 28.4 ci Gasoline

Manufacturer	Briggs & Stratton 289707
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	465 cc 28.4 ci
Bore/Stroke	3.44x3.06 inches 87 x 78 mm
Power (gross)	12.5 hp 9.3 kW
Starter	electric
Starter volts	12

Simplicity Regent 12.5H Engine
Image courtesy of Douglas Wardenski

Transmission

Transmission — Hydro-Gear

Transmission	Hydro-Gear
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Regent 12.5H Tires
Lawn/turf front	15x6.00x6
Lawn/turf rear	18x6.60x6

Dimensions
Wheelbase	45.5 inches 115 cm
Length	65.25 inches 165 cm
Width	33.75 inches 85 cm
Height (steering wheel)	39 inches 99 cm
Weight	436 lbs 197 kg
Clearance (front axle)	9 inches 22 cm
Clearance (rear axle)	6 inches 15 cm

Attachments

Attachment overview
36" mid-mount mower deck
Snowblower
Blade

36" Mower deck
Type	mid-mount Simplicity 1691419
	2-blade with manual lift
Cutting width	36 inches 91 cm
Weight	94 lbs 42 kg

Photos

Simplicity Regent 12.5H

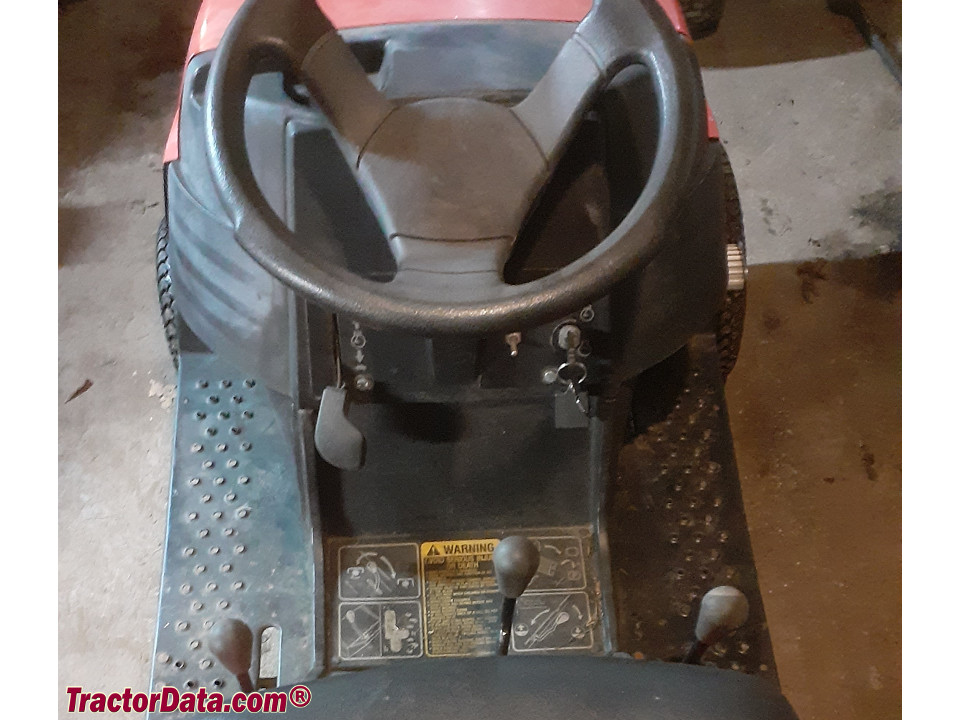

Simplicity Regent 12.5H operator station and controls.
