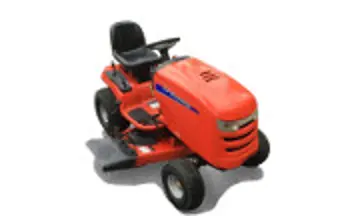

Simplicity Regent 20/38
The Simplicity Regent 20/38 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 655 cc 40 ci engine. The listed engine power is Gasoline (gross): 20 hp / 14.9 kW. Transmission: Tuff Torq K46. Operating weight: 100 lbs 45 kg.
Engine Power
Gasoline (gross): 20 hp / 14.9 kW
Fuel & Capacities
3.5 gal
13.2 L
Transmission
Tuff Torq K46
Operating Weight
100 lbs
45 kg
Overview
 | 2006 - 2009
Regent SeriesLawn tractor
Regent Series
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Simplicity (a part of Briggs & Stratton) |
Lawn tractor | |
Original price was $2,600 in 2009 | |
Variants | |
|---|---|
2520H | similar Massey Ferguson model |
520H | similar AGCO model |
Simplicity Regent 20/38 Engine | |
|---|---|
20HP Briggs & Stratton 655cc 2-cyl gasoline | |
Fuel tank | 3.5 gal
13.2 L |
Engine details ...  | |
Simplicity Regent 20/38 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 50 inches
127 cm |
Weight | 430 lbs
195 kg |
Front tire | 15x6-6 |
Rear tire | 20x8-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 9 |
Battery CCA | 230 |
Battery volts | 12 |
References | |
|---|---|
 | |
Product Guide 2008 published by Simplicity | |
Operator's Manual Regent / 500 / 2500 Series (1730215) published in 2006 |
Engine
Engine Detail — 655 cc / 40 ci Gasoline
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Briggs & Stratton Intek 40G777 | |
Displacement | 655 cc
40 ci |
Bore/Stroke | 2.97x2.89 inches
75 x 73 mm |
Power (gross) | 20 hp
14.9 kW |
Starter | electric |
Starter volts | 12 |

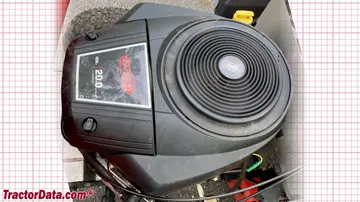

Simplicity Regent 20/38 Engine | |
|---|---|
 | |
Image courtesy of Steve Matloff |
Transmission
Transmission — Tuff Torq K46
Transmission | Tuff Torq K46 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
Simplicity Regent 20/38 Tires | |
|---|---|
Lawn/turf front | 15x6-6 |
Lawn/turf rear | 20x8-8 |
Dimensions | |
|---|---|
Wheelbase | 50 inches
127 cm |
Length | 71 inches
180 cm |
Width | 37 inches
93 cm |
Height (steering wheel) | 45 inches
114 cm |
Weight | 430 lbs
195 kg |
Front axle | Cast-iron |
Rear axle | 0.75 inch diameter
19 mm |
Attachments
Attachment overview | |
|---|---|
38" mid-mount mower deck | |
Snowblower | |
Blade |
38" Mower deck | |
|---|---|
Type | mid-mount Simplicity 1695129 |
2-blade with manual lift | |
Cutting width | 38 inches
96 cm |
Weight | 100 lbs
45 kg |
Overall width | 50 inches
127 cm |
Cut height | 1.5 to 4 inch
3 to 10 cm |
Cut positions | infinite |
Photos

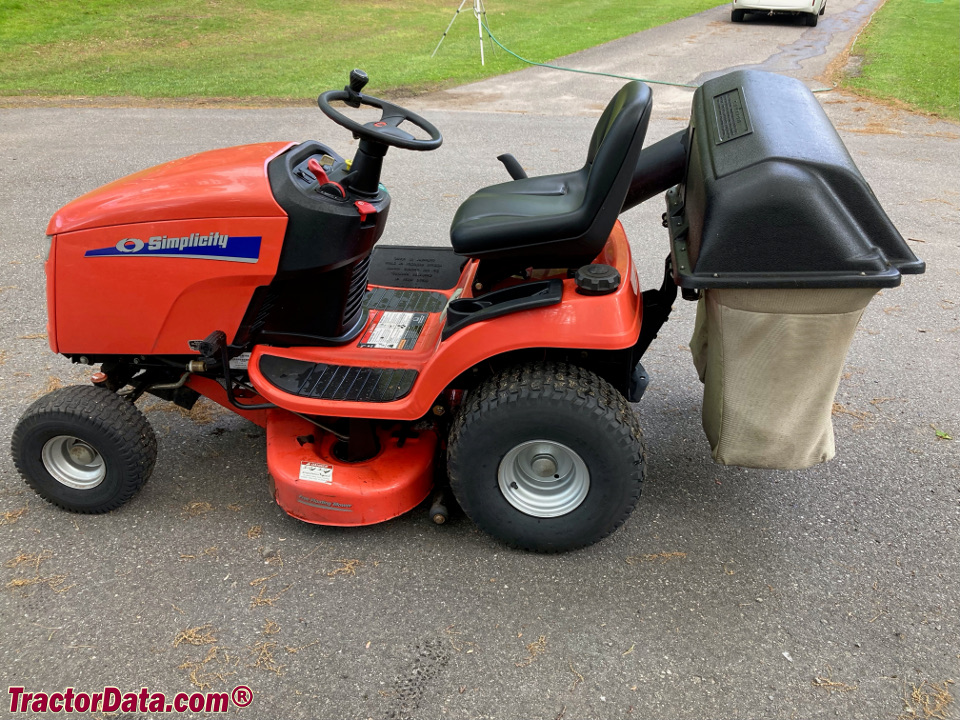

Simplicity Regent 20/38

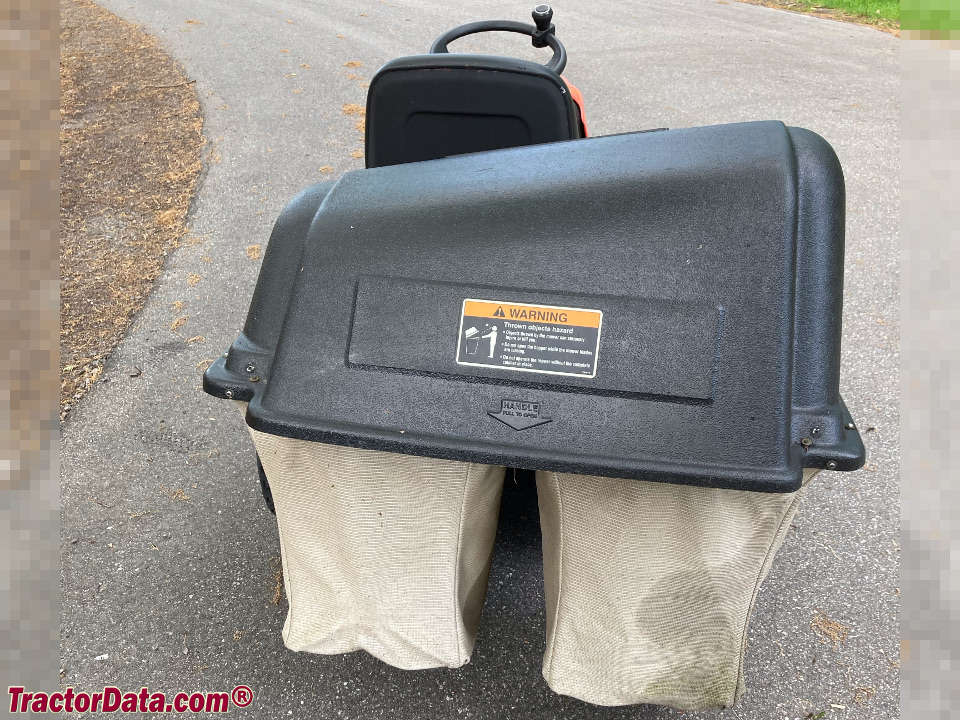

Simplicity Regent 20/38

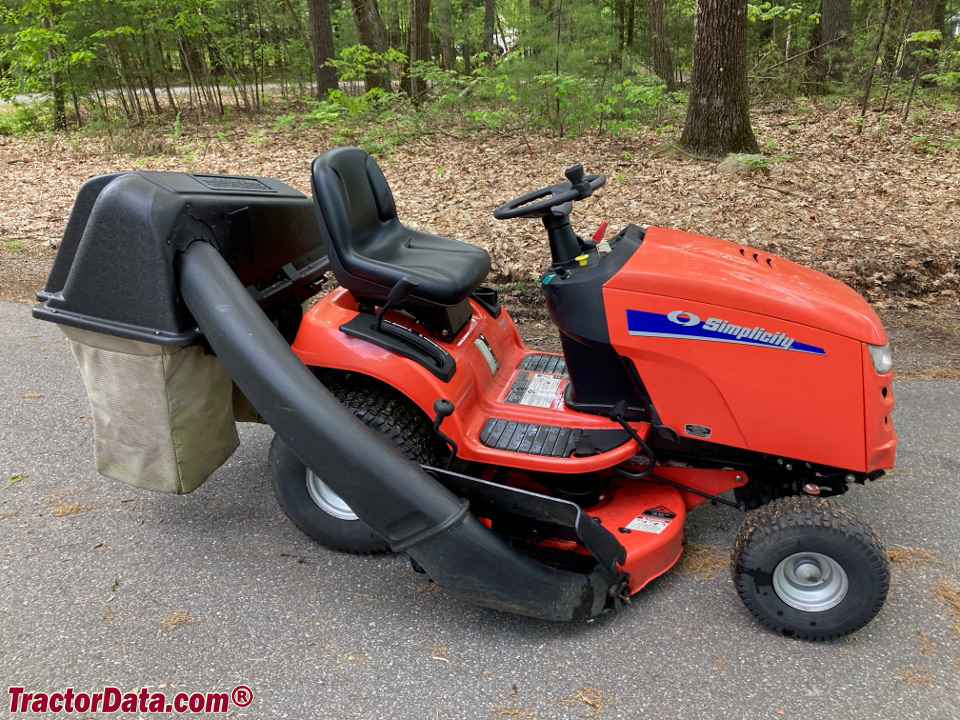

Simplicity Regent 20/38
Simplicity Regent 20/38
Simplicity Lawn Tractors Simplicity Regent 20/38 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Simplicity Lawn Tractors Simplicity Regent 20/38.
Converted Equivalents:
Horsepower (HP)20 hp
Kilowatts (kW)14.9 kW
Metric Horsepower (PS / CV)20.3 PS
