Simplicity SunRunner 12G

The Simplicity SunRunner 12G is a tractor produced by Simplicity Lawn Tractors. The listed engine power is Gasoline (listed): 12 hp / 8.9 kW. Transmission: Peerless. Operating weight: 490 lbs 222 kg.

Overview

	1987 - 1989 SunRunner SeriesFront-mount mower SunRunner Series Front-mount mower

Production
Manufacturer	Simplicity
Front-mount mower

Variants
12G	gear
12H	hydrostatic

Simplicity SunRunner 12G Engine
12HP Briggs & Stratton 1-cyl gasoline
Fuel tank	2 gal 7.6 L
Engine details ...

Simplicity SunRunner 12G Transmission
5-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Mechanical band brakes
Open operator station.

Power Take-off (PTO)
Front PTO	independent
Clutch	mechanical ilder pulley

Dimensions & Tires
Wheelbase	40 inches 101 cm
Weight	490 lbs 222 kg
Front tire	15x6-6.00
Rear tire	4.1/3.5-4
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Outdoor Power Equipment published in 1987, by Simplicity

Engine

Engine Detail — Gasoline

Manufacturer	Briggs & Stratton
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Power	12 hp 8.9 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Peerless

Transmission	Peerless
Type	belt-driven gear
Gears	5 forward and 1 reverse

Dimensions

Simplicity SunRunner 12G Tires
Lawn/turf front	15x6-6.00
Lawn/turf rear	4.1/3.5-4

Dimensions
Wheelbase	40 inches 101 cm
Length	64 inches*Tractor only 162 cm
	83.75 inches 212 cm
Width	36 inches 91 cm
Height (steering wheel)	42 inches 106 cm
Height (hood)	24.5 inches 62 cm
Weight	490 lbs 222 kg

Attachments

Attachment overview
36" front-mount mower deck
42" front-mount mower deck

Photos

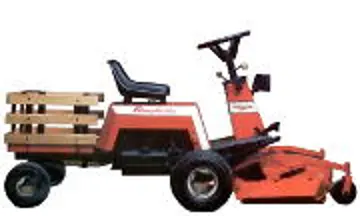

Simplicity SunRunner 12G tractor photo
