Steyr 8130

The Steyr 8130 is a tractor produced by Steyr. It is equipped with a 316.2 ci 5.2 L engine. The rated power output is 120 hp (SAE) 89.5 kW. Transmission: Steyr-Matic. Operating weight: 8774 to 9943 pounds.

Overview

	1984 - 1995	1984 - 1995

Production
Manufacturer	Steyr
The Steyr 8130 was available in two- or four-wheel drive until 1987, after that it was only four-wheel drive.

Steyr 8130 Engine
Steyr 5.2L 6-cyl diesel
Fuel tank	31.7 gal 120.0 L
	37 gal (optional) 140.0 L
Engine details ...

Steyr 8130 Power
Engine	120 hp 89.5 kW
PTO (claimed)	103 hp 76.8 kW

Mechanical
Two- or four-wheel drive
Steering	hydrostatic power
Brakes	disc
	engine exhuast brake optional
Trailer brakes	air brakes optional
Steyr SK2 cab. Steyer Twin Cab optional. Reversible controls available.

Hydraulics
Valves	3
Total flow	10.8 gpm 40.9 lpm

Tractor hitch
Rear lift	10,580 lbs 4799 kg
	12,860 lbs (1987+) 5833 kg
Front lift	4,856 lbs 2202 kg

Power Take-off (PTO)
Rear PTO Type	540/1000
Front PTO Type	1110

Dimensions & Tires
Wheelbase	102.2 inches 259 cm
Weight	8774 to 9943 pounds
Front tire	11.00-16
Rear tire	18.4R34
Full dimensions and tires ...

References
8110-8120 published in 1988, by Steyr

Engine

Engine Detail — 316.2 ci / 5.2 L Diesel

Manufacturer	Steyr WD 611.88
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	316.2 ci 5.2 L
Bore/Stroke	3.937x4.331 inches 100 x 110 mm
Power	120 hp (SAE) 89.5 kW
Rated RPM	2300
Torque	295 lb-ft 400.0 Nm
Torque RPM	1600

Transmission

Transmission options
18-speed synchronized
36-speed partial power shift
24-speed synchronized with creeper
48-speed partial power shift

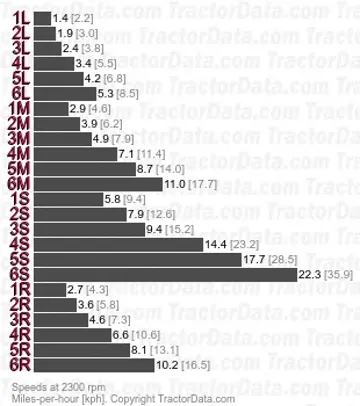

Transmission — 18 forward and 6 reverse synchronized

Type	synchronized
Gears	18 forward and 6 reverse
Six gears (1-6) in three ranges (L/M/V) plus reverse range. In some areas sixth gears was not available, providing a total of 15 forward and 5 reverse.

Transmission — Steyr-Matic

Transmission	Steyr-Matic
Type	partial power shift
Gears	36 forward and 12 reverse

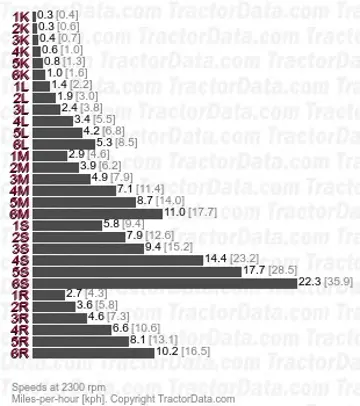

Transmission — 24 forward and 6 reverse synchronized with creeper

Type	synchronized with creeper
Gears	24 forward and 6 reverse
Additional creeper range (K) added to the basic transmission.

Transmission — Steyr-Matic

Transmission	Steyr-Matic
Type	partial power shift
Gears	48 forward and 12 reverse

Dimensions

Steyr 8130 Tires
Ag front	11.00-16 (2WD)
	16.6R24 (4WD)
Ag rear	18.4R34

Dimensions
Wheelbase	102.2 inches 259 cm
Length	168.6 inches 428 cm
Width	84.3 inches 214 cm
Height (cab)	103.6 inches 263 cm
	111.3 inches (Twin Cab) 282 cm
Ground clearance	16.1 inches (4WD) 40 cm
Front tread	64.5 inches 163 cm
Rear tread	70.1 to 84.7 inches 178 to 215 cm

Steyr 8130 Weight
	8,774 lbs (2WD) 3979 kg
	9,789 lbs (4WD) 4440 kg
	9,943 lbs (Twin Cab) 4510 kg
Max capacity	14,330 lbs (4WD) 6500 kg
