Toro Wheel Horse 417XT

The Toro Wheel Horse 417XT is a tractor produced by Toro Lawn Tractors. It is equipped with a 583 cc 35.6 ci engine. The listed engine power is Gasoline (gross): 17 hp / 12.7 kW. Transmission: Hydro-Gear 330-3000. Operating weight: 657 lbs 298 kg.

Engine Power

Gasoline (gross): 17 hp / 12.7 kW

Fuel & Capacities

4 gal 15.1 L

Transmission

Hydro-Gear 330-3000

Operating Weight

657 lbs 298 kg

Overview

	2003 - 2004 400XT SeriesGarden tractor 400XT Series Garden tractor

Production
Manufacturer	Toro
Garden tractor
Original price was $4,419 in 2004

Toro 417XT Engine
17HP Kawasaki 583cc 2-cyl gasoline
Fuel tank	4 gal 15.1 L
Engine details ...

Toro 417XT Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Open operator station.

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	49.5 inches 125 cm
Weight	657 lbs 298 kg
Front tire	16x6.50
Rear tire	23x10.50
Full dimensions and tires ...

Electrical
Ground	negative
Battery CCA	340
Battery volts	12

Engine

Engine Detail — 583 cc / 35.6 ci Gasoline

Manufacturer	Kawasaki FH541V
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft
Displacement	583 cc 35.6 ci
Bore/Stroke	2.91x2.68 inches 74 x 68 mm
Power (gross)	17 hp 12.7 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Hydro-Gear 330-3000

Transmission	Hydro-Gear 330-3000
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Toro 417XT Tires
Lawn/turf front	16x6.50
Lawn/turf rear	23x10.50

Dimensions
Wheelbase	49.5 inches 125 cm
Length	69.2 inches 175 cm
Width	36 inches 91 cm
Weight	657 lbs 298 kg

Attachments

Attachment overview
38" mid-mount mower deck
42" mid-mount mower deck
48" mid-mount mower deck
52" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

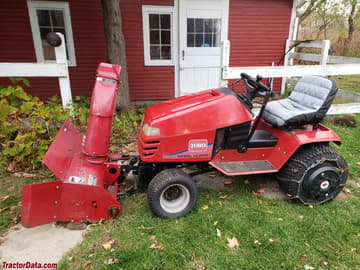

Toro Wheel Horse 417XT with snow blower.

Recommended Implements & Sizing Guide

Engineering recommendations for Toro Lawn Tractors Toro Wheel Horse 417XT based on its 17 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	4 ft (48 in)1.2 m	Light Duty	Pasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep	42 to 48 in105 - 120 cm	Light Duty	Covers compact tractor tire width.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Toro Lawn Tractors Toro Wheel Horse 417XT.

Estimated Continuous Field Runtime: 4.5 hrs

Approximately 4.5 hours of continuous field operation at ~75% rated power on a full tank (4 gal / 15.1 L).

Estimated 75% Load Fuel Burn~0.9 gal/hr (3.3 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Toro Lawn Tractors Toro Wheel Horse 417XT Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Toro Lawn Tractors Toro Wheel Horse 417XT.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)17 hp

Kilowatts (kW)12.7 kW

Metric Horsepower (PS / CV)17.2 PS
