Toro Wheel Horse 520Lxi

The Toro Wheel Horse 520Lxi is a tractor produced by Toro Lawn Tractors. It is equipped with a 617 cc 37.7 ci engine. The listed engine power is Gasoline (gross): 20 hp / 14.9 kW. Transmission: Eaton Uni-Drive. Operating weight: 1,023 lbs 464 kg.

Engine Power

Gasoline (gross): 20 hp / 14.9 kW

Fuel & Capacities

4.25 gal 16.1 L

Transmission

Eaton Uni-Drive

Operating Weight

1,023 lbs 464 kg

Overview

	1998 - 2002 5xi SeriesGarden tractor 5xi Series Garden tractor

Production
Manufacturer	Toro
Garden tractor
Original price was $8,069 in 1999

Toro 520Lxi Engine
20HP Kawasaki 617cc 2-cyl gasoline
Fuel tank	4.25 gal 16.1 L
Engine details ...

Toro 520Lxi Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Power steering
Open operator station with adjustable seat.

Power Take-off (PTO)
Front PTO	independent
Front PTO Type	electric

Dimensions & Tires
Wheelbase	52 inches 132 cm
Weight	1,023 lbs 464 kg
Front tire	16x7.5
Rear tire	23x10.50
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	20
Battery CCA	380
Battery volts	12

References

5xi Series Tractor Service Manual published in 1997
Lawn and Garden Tractors published in 1998, by Toro
Lawn and Garden Tractors published in 1999, by Toro

Engine

Engine Detail — 617 cc / 37.7 ci Gasoline

Manufacturer	Kawasaki FD620
Fuel Type	Gasoline
Configuration	2-cylinder, liquid-cooled horizontal-shaft V-Twin
Displacement	617 cc 37.7 ci
Bore/Stroke	2.992x2.68 inches 76 x 68 mm
Power (gross)	20 hp 14.9 kW
Rated RPM	3400
Starter	electric
Starter volts	12
Oil capacity	1.9 qts 1.8 L
Coolant capacity	4.1 qts 3.9 L
Sparkplug	BMR4A
Sparkplug gap	0.026 inches 0.660 mm

Transmission

Transmission — Eaton Uni-Drive

Transmission	Eaton Uni-Drive
Type	shaft-driven hydrostatic
Gears	infinite forward and reverse (2-range)

Toro 520Lxi Transmission

Dimensions

Toro 520Lxi Tires
Lawn/turf front	16x7.5
Lawn/turf rear	23x10.50

Dimensions
Wheelbase	52 inches 132 cm
Length	76.5 inches 194 cm
Width	40.5 inches 102 cm
Weight	1,023 lbs 464 kg
Front axle	Cast-iron

Attachments

Attachment overview
44" mid-mount mower deck
48" mid-mount mower deck
52" mid-mount mower deck
60" mid-mount mower deck
Snowblower
Blade
Front-end loader
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

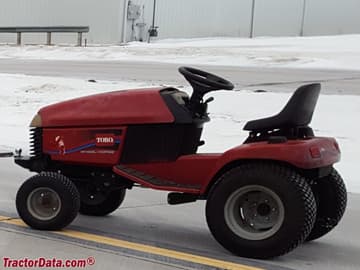

Toro Wheel Horse 520Lxi

Recommended Implements & Sizing Guide

Engineering recommendations for Toro Lawn Tractors Toro Wheel Horse 520Lxi based on its 20 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	4 ft (48 in)1.2 m	Light Duty	Pasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep	42 to 48 in105 - 120 cm	Light Duty	Covers compact tractor tire width.
Disc HarrowSecondary Tillage	5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)	Light Duty	Small acreage soil break-up and secondary aeration.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Toro Lawn Tractors Toro Wheel Horse 520Lxi.

Estimated Continuous Field Runtime: 4.1 hrs

Approximately 4.1 hours of continuous field operation at ~75% rated power on a full tank (4.3 gal / 16.1 L).

Estimated 75% Load Fuel Burn~1 gal/hr (3.9 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Toro Lawn Tractors Toro Wheel Horse 520Lxi Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Toro Lawn Tractors Toro Wheel Horse 520Lxi.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)20 hp

Kilowatts (kW)14.9 kW

Metric Horsepower (PS / CV)20.3 PS
