Toro 16-42Z 74325
The Toro 16-42Z 74325 is a tractor produced by Toro Lawn Tractors. It is equipped with a 465 cc 28.4 ci engine. The listed engine power is Gasoline (gross): 16 hp / 11.9 kW. Transmission: Hydro-Gear.
Engine Power
Gasoline (gross): 16 hp / 11.9 kW
Fuel & Capacities
Gasoline
Transmission
Hydro-Gear
Overview
 | 2003 - 2004
TimeCutter Z SeriesZero-turn mower
TimeCutter Z Series
Zero-turn mower |
|---|
Production | |
|---|---|
Manufacturer | Toro |
Zero-turn mower | |
Original price was $3,199 in 2004 | |
Toro 16-42Z Engine | |
|---|---|
16HP Briggs & Stratton 465cc 1-cyl gasoline | |
Engine details ...  |
Toro 16-42Z Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Front tire | 10x4 |
Rear tire | 18x7.5 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 465 cc / 28.4 ci Gasoline
Manufacturer | Briggs & Stratton 286H77 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 465 cc
28.4 ci |
Bore/Stroke | 3.44x3.06 inches
87 x 78 mm |
Power (gross) | 16 hp
11.9 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — Hydro-Gear
Transmission | Hydro-Gear |
Type | hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
Toro 16-42Z Tires | |
|---|---|
Lawn/turf front | 10x4 |
Lawn/turf rear | 18x7.5 |
Dimensions | |
|---|---|
Front axle | Caster |
Attachments
42" Mower deck | |
|---|---|
Type | mid-mount Toro |
2-blade with manual lift | |
Cutting width | 42 inches
106 cm |
Cut height | 1.5 to 4.5 inch
3 to 11 cm |
Photos

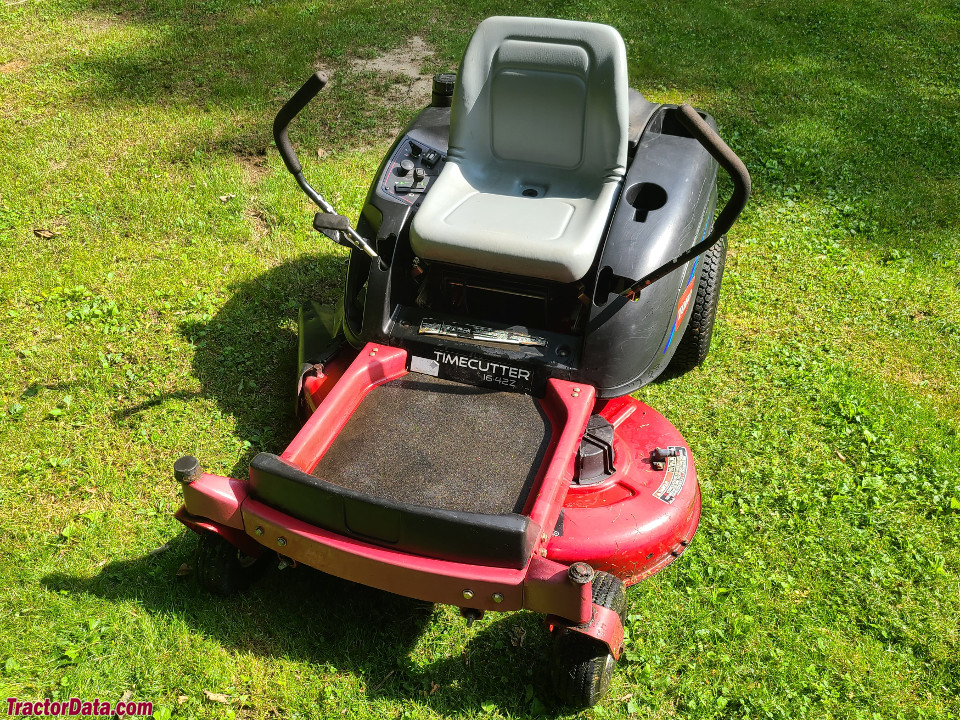

Toro 16-42Z 74325

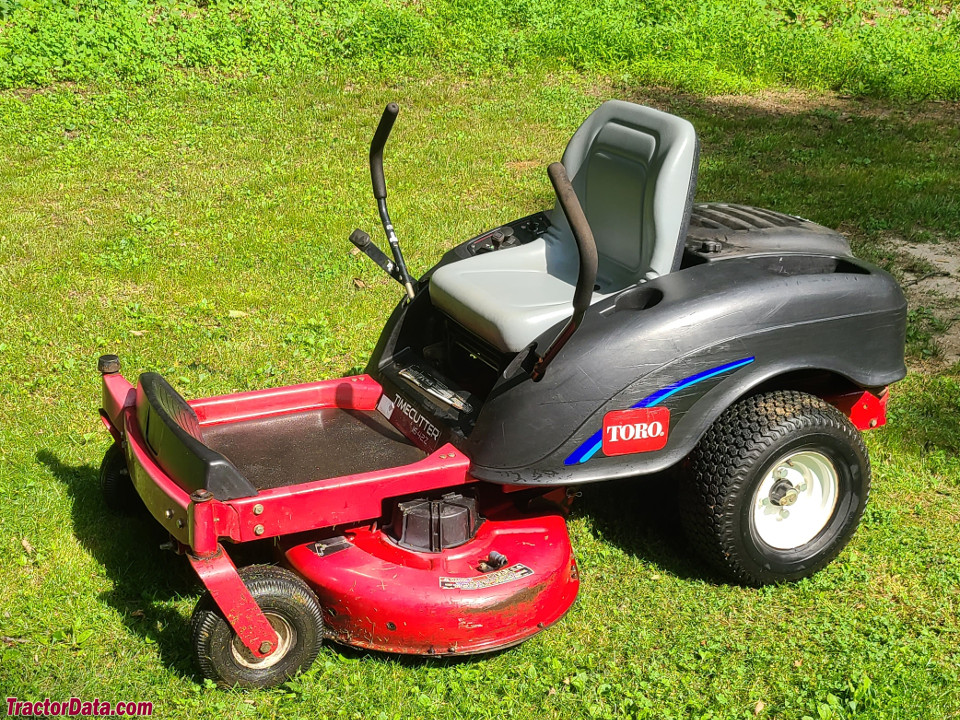

Toro 16-42Z 74325

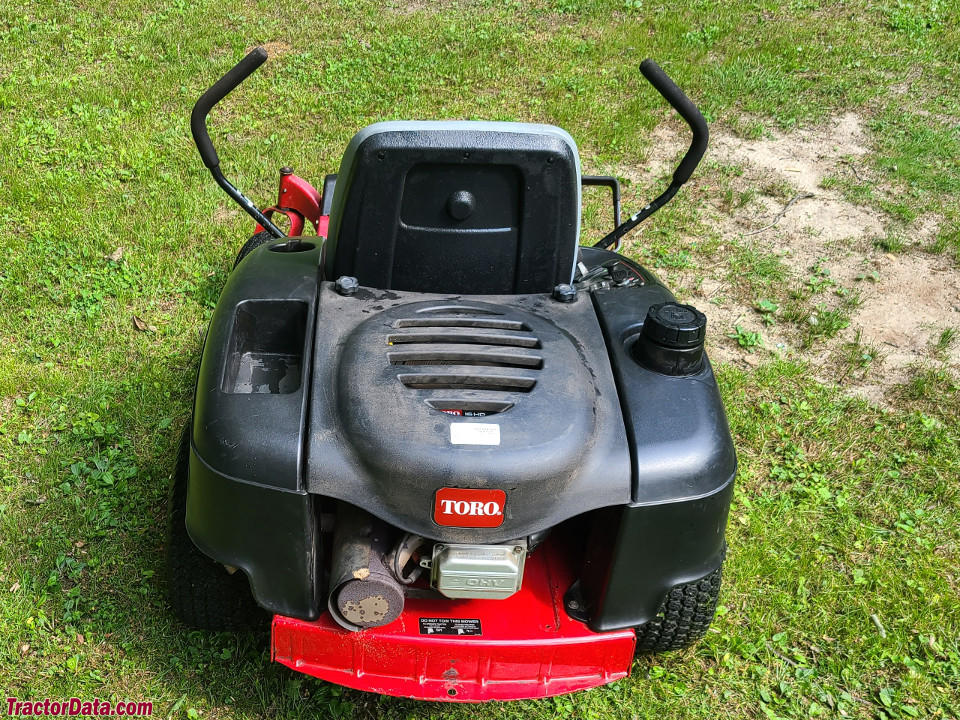

Toro 16-42Z 74325
Recommended Implements & Sizing Guide
Engineering recommendations for Toro Lawn Tractors Toro 16-42Z 74325 based on its 16 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Toro Lawn Tractors Toro 16-42Z 74325.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Toro Lawn Tractors Toro 16-42Z 74325 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Toro Lawn Tractors Toro 16-42Z 74325.
Converted Equivalents:
Horsepower (HP)16 hp
Kilowatts (kW)11.9 kW
Metric Horsepower (PS / CV)16.2 PS
Direct Competitor Comparison
Compare Toro 16-42Z 74325 against same-era industry alternatives in the same horsepower class.
Current Model
Toro Lawn Tractors
Toro 16-42Z 74325
Engine Power:Gasoline (gross): 16 hp / 11.9 kW
★ Baseline Reference
