Toro Wheel Horse 416XT
The Toro Wheel Horse 416XT is a tractor produced by Toro Lawn Tractors. It is equipped with a 457 cc 27.9 ci engine. The listed engine power is Gasoline (gross): 16 hp / 11.9 kW. Transmission: Hydro-Gear 330-3000. Operating weight: 631 lbs 286 kg.
Overview
 | 2003 - 2004
400XT SeriesGarden tractor
400XT Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Toro |
Garden tractor | |
Original price was $3,719 in 2004 | |
Toro 416XT Engine | |
|---|---|
16HP Kohler 457cc 1-cyl gasoline | |
Fuel tank | 4 gal
15.1 L |
Engine details ...  | |
Toro 416XT Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Open operator station. | |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 49.5 inches
125 cm |
Weight | 631 lbs
286 kg |
Front tire | 16x6.50 |
Rear tire | 23x10.50 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery CCA | 260 |
Battery volts | 12 |
Engine
Engine Detail — 457 cc / 27.9 ci Gasoline
Manufacturer | Kohler CV460S |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 457 cc
27.9 ci |
Bore/Stroke | 3.43x3.03 inches
87 x 77 mm |
Power (gross) | 16 hp
11.9 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — Hydro-Gear 330-3000
Transmission | Hydro-Gear 330-3000 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
Toro 416XT Tires | |
|---|---|
Lawn/turf front | 16x6.50 |
Lawn/turf rear | 23x10.50 |
Dimensions | |
|---|---|
Wheelbase | 49.5 inches
125 cm |
Length | 69.2 inches
175 cm |
Width | 36 inches
91 cm |
Weight | 631 lbs
286 kg |
Attachments
Attachment overview | |
|---|---|
38" mid-mount mower deck | |
42" mid-mount mower deck | |
48" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos

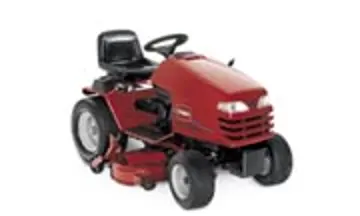

Toro Wheel Horse 416XT tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Toro Lawn Tractors Toro Wheel Horse 416XT based on its 16 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Toro Lawn Tractors Toro Wheel Horse 416XT.
Estimated Continuous Field Runtime: 4.8 hrs
Approximately 4.8 hours of continuous field operation at ~75% rated power on a full tank (4 gal / 15.1 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Toro Lawn Tractors Toro Wheel Horse 416XT Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Toro Lawn Tractors Toro Wheel Horse 416XT.
Converted Equivalents:
