Toro GMT 200 30802

The Toro GMT 200 30802 is a tractor produced by Toro Lawn Tractors. It is equipped with a 880 cc 53.7 ci engine. The rated power output is 20 hp 14.9 kW. Transmission: Sundstrand. Operating weight: 950 lbs 430 kg.

Overview

	1978 - 1983	1978 - 1983

Production
Manufacturer	Toro
Built in Bloomington, Minnesota, USA

Toro GMT 200 Engine
20HP Kohler 880cc 2-cyl gasoline
Fuel tank	4 gal 15.1 L
Engine details ...

Toro GMT 200 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Articulated power steering
Mechanical disc brakes
Open operator station.

Dimensions & Tires
Wheelbase	41.5 inches 105 cm
Weight	950 lbs 430 kg
Front tire	23x10.50-12
Rear tire	23x10.50-12
Full dimensions and tires ...

Electrical
Charging system	alternator
Charging amps	15
Charging volts	12
Battery volts	12
Battery AH	45

References
Operator's Manual GMT 200 (3311-353)

Engine

Engine Detail — 880 cc / 53.7 ci Gasoline

Manufacturer	Kohler K532S
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled horizontal-shaft
Displacement	880 cc 53.7 ci
Bore/Stroke	3.375x3.00 inches 86 x 76 mm
Power (gross)	20 hp 14.9 kW
Rated RPM	3450
Torque	38.3 lb-ft 51.9 Nm
Torque RPM	2200
Starter	electric
Starter volts	12
Oil capacity	3 qts 2.8 L
Sparkplug	Champion RH-10
Sparkplug gap	0.025 inches 0.635 mm

Toro GMT 200 Engine
Image courtesy of George Spahn

Transmission

Transmission — Sundstrand

Transmission	Sundstrand
Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

Toro GMT 200 Tires
Lawn/turf front	23x10.50-12
Lawn/turf rear	23x10.50-12

Dimensions
Wheelbase	41.5 inches 105 cm
Length	87.25 inches 221 cm
Width	44 inches 111 cm
Height	45 inches 114 cm
Weight	950 lbs 430 kg

Attachments

Attachment overview
48" front-mount mower deck
60" front-mount mower deck
Snowblower
Blade

Photos

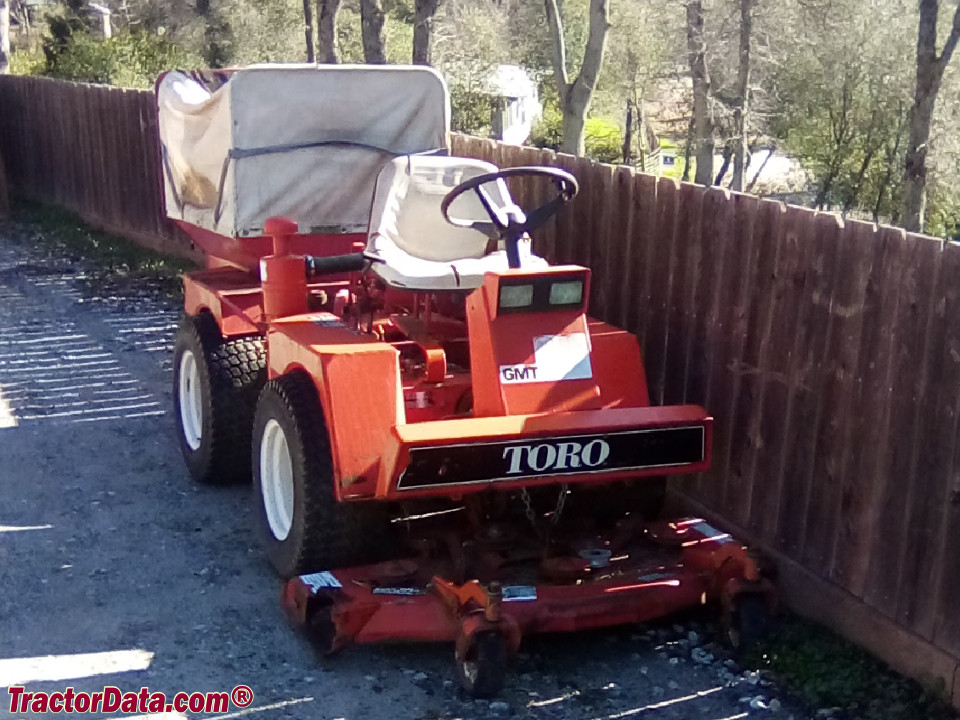

Toro GMT 200 30802
