Toro SWX5050 74797
The Toro SWX5050 74797 is a tractor produced by Toro Lawn Tractors. It is equipped with a 708 cc 43.2 ci engine. The rated power output is 16.8 hp 12.5 kW. Transmission: Hydro-Gear ZT-2800.
Engine Power
16.8 hp
12.5 kW
Fuel & Capacities
3 gal
11.4 L
Transmission
Hydro-Gear ZT-2800
Toro Lawn Tractors Toro SWX5050 74797 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2015
TimeCutter SWX SeriesZero-turn mower |
|---|---|
2015 | |
TimeCutter SWX Series | |
Zero-turn mower | |
2015 | |
|---|---|
TimeCutter SWX Series | |
Zero-turn mower |
Production | |
|---|---|
Manufacturer | Toro |
Zero-turn mower | |
Original price was $4,899 in 2015 | |
Toro SWX5050 Engine | |
|---|---|
24.5HP Loncin 708cc 2-cyl gasoline | |
Fuel tank | 3 gal
11.4 L |
Engine details ...  | |
Toro SWX5050 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
open operator station |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Front tire | 13x5 |
Rear tire | 20x10 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
| 2015
TimeCutter SWX SeriesZero-turn mower |
|---|---|
2015 | |
TimeCutter SWX Series | |
Zero-turn mower | |
2015 | |
|---|---|
TimeCutter SWX Series | |
Zero-turn mower |
Engine Detail — 708 cc / 43.2 ci Gasoline
Manufacturer | Loncin LC2P77F |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Displacement | 708 cc
43.2 ci |
Bore/Stroke | 3.03x2.99 inches
77 x 76 mm |
Power (net) | 16.8 hp
12.5 kW |
Power (gross) | 24.5 hp
18.3 kW |
Starter | electric |
Starter volts | 12 |
Oil capacity | 2.1 qts
2.0 L |
Sparkplug | NGK BPR6ES |
Sparkplug gap | 0.030 inches
0.762 mm |
Transmission
| 2015
TimeCutter SWX SeriesZero-turn mower |
|---|---|
2015 | |
TimeCutter SWX Series | |
Zero-turn mower | |
2015 | |
|---|---|
TimeCutter SWX Series | |
Zero-turn mower |
Transmission — Hydro-Gear ZT-2800
Transmission | Hydro-Gear ZT-2800 |
Type | hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
| 2015
TimeCutter SWX SeriesZero-turn mower |
|---|---|
2015 | |
TimeCutter SWX Series | |
Zero-turn mower | |
2015 | |
|---|---|
TimeCutter SWX Series | |
Zero-turn mower |
Toro SWX5050 Tires | |
|---|---|
Lawn/turf front | 13x5 |
Lawn/turf rear | 20x10 |
Dimensions | |
|---|---|
Length | 78.9 inches
200 cm |
Height | 45.9 inches
116 cm |
Front axle | Casters |
Attachments
| 2015
TimeCutter SWX SeriesZero-turn mower |
|---|---|
2015 | |
TimeCutter SWX Series | |
Zero-turn mower | |
2015 | |
|---|---|
TimeCutter SWX Series | |
Zero-turn mower |
50" Mower deck | |
|---|---|
Type | mid-mount Toro |
3-blade with manual lever lift | |
Cutting width | 50 inches
127 cm |
Overall width | 53.6 inches
136 cm |
Cut height | 1.5 to 4.5 inch
3 to 11 cm |
Photos

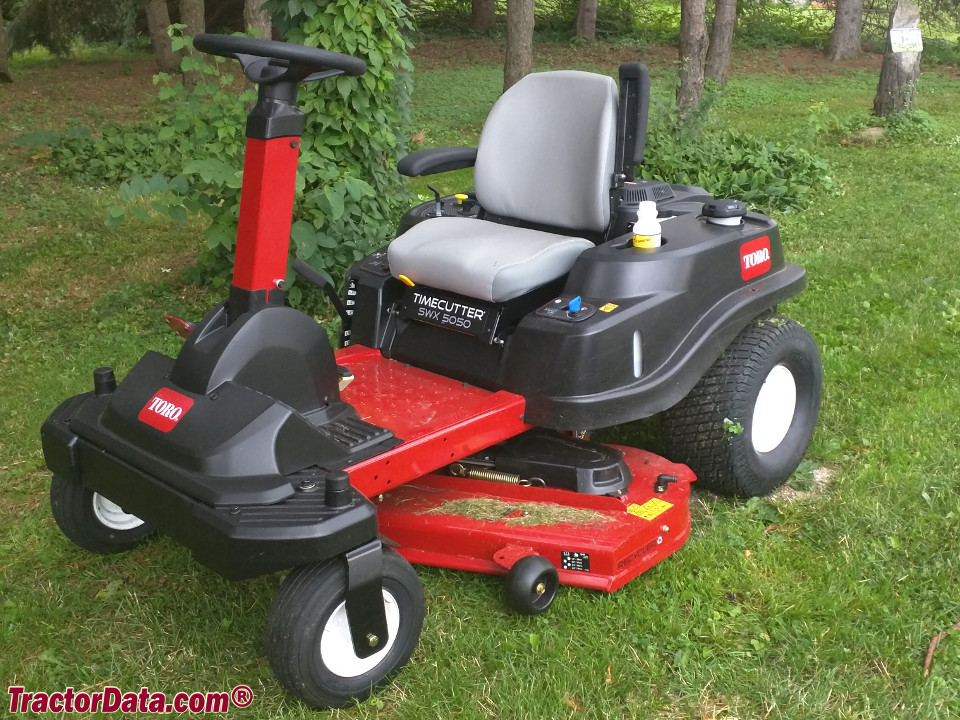

Toro SWX5050 74797
