TYM T254

The TYM T254 is a tractor produced by Tym. It is equipped with a 77.2 ci 1.3 L engine. The listed engine power is Engine Detail — 77.2 ci / 1.3 L (gross): 24.2 hp / 18.0 kW. Transmission: infinite forward and reverse (2-range). Operating weight: 725 lbs 328 kg.

Overview

	2014 - Compact Utility tractor
2014 -
Compact Utility tractor

Production
Manufacturer	TYM
Compact Utility tractor

TYM T254 Engine
Yanmar 1.3L 3-cyl
Fuel tank	5.3 gal 20.1 L
Engine details ...

TYM T254 Transmission
hydrostatic
Transmission details ...

TYM T254 Power
Engine (gross)	24.2 hp 18.0 kW

Mechanical
Four-wheel drive
Wet disc brakes
Two-post foldable ROPS.

Hydraulics
Type	open center dual gear pump
Valves	1 OptOptional
Total flow	7.1 gpm 26.9 lpm

Tractor hitch
Rear Type	I
Control	position control
Rear lift (at ends)	1323 lbs 600 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540 (1.375)
Engine RPM	540@2893
Mid PTO	independent OptOptional
Mid PTO Type	2000
Engine RPM	2000@2875

Dimensions & Tires
Wheelbase	57.5 inches 146 cm
Weight	1610 lbs 730 kg
Front tire	6.0-12
Rear tire	9.5-16
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	40
Battery volts	12

References
T194HST, T234HST, T254/T254HST published in 2016, by TYM

Engine

Engine Detail — 77.2 ci / 1.3 L

Manufacturer	Yanmar 3TNV80F
Configuration	3-cylinder, liquid-cooled
Displacement	77.2 ci 1.3 L
Bore/Stroke	3.15x3.31 inches 80 x 84 mm
Emissions	Tier IV
Power (gross)	24.2 hp 18.0 kW
Fuel system	indirect injection
Compression	23:1
Rated RPM	3000
Idle RPM	1350-3235
Starter	electric
Starter volts	12

Transmission

Transmission — infinite forward and reverse (2-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (2-range)

Dimensions

TYM T254 Tires
Ag front	6.0-12
Ag rear	9.5-16

Dimensions
Wheelbase	57.5 inches 146 cm
Length	100.9 inches 256 cm
Width	45.8 inches 116 cm
Height (ROPS)	92 inches 233 cm
Weight	1610 lbs 730 kg
Ground clearance	6.9 inches 17 cm

Attachments

Attachment overview
60" mid-mount mower deck
Front-end loader
Backhoe

60" Mower deck
Type	mid-mount TYM MM60
	3-blade
Cutting width	60 inches 152 cm
Weight	272 lbs 123 kg
Cut height	1 to 4 inch 2 to 10 cm

TYM BY60 Backhoe
Backhoe type	TYM BY60 Backhoe
Weight	725 lbs 328 kg
Transport height	66 inches 167 cm
2-Foot flat digging depth	77 inches 195 cm
Reach from pivot	98 inches 248 cm
Loading height	60 inches 152 cm
Bucket Rotation	185°
Swing Arc	140°
Bucket force	2050 lbs 929 kg

Photos

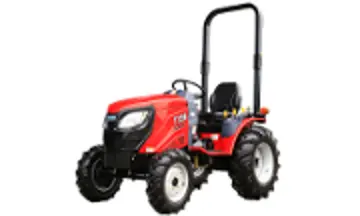

TYM T254 tractor photo
