TYM T233
The TYM T233 is a tractor produced by Tym. It is equipped with a 68.6 ci 1.1 L engine. The listed engine power is Diesel (gross): 23 hp / 17.2 kW. Transmission: infinite forward and reverse (2-range). Operating weight: 1,654 lbs 750 kg.
Engine Power
Diesel (gross): 23 hp / 17.2 kW
Fuel & Capacities
6.6 gal
25.0 L
Transmission
infinite forward and reverse (2-range)
Operating Weight
1,654 lbs
750 kg
Overview
![]() | 2006 - 2011
Compact Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | TYM |
Compact Utility tractor | |
TYM T233 Engine | |
|---|---|
Mitsubishi 1.1L 3-cyl diesel | |
Fuel tank | 6.6 gal
25.0 L |
Engine details ... | |
TYM T233 Transmission | |
|---|---|
hydrostatic | |
Transmission details ... |
TYM T233 Power | |
|---|---|
Engine (gross) | 23 hp
17.2 kW |
PTO (claimed) | 19.5 hp
14.5 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostatic power |
Wet disc brakes | |
Two-post ROPS. | |
Hydraulics | |
|---|---|
Type | gear pump |
Valves | 1 |
Pump flow | 5.0 gpm
18.9 lpm |
Total flow | 7.6 gpm
28.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift (at ends) | 1,653 lbs
749 kg |
Rear lift (at 24"/610mm) | 1,213 lbs
550 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic |
Rear PTO Type | 540 (1.375) |
Mid PTO | independent |
Mid PTO Type | 2000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 58.3 inches
148 cm |
Weight | 1,654 lbs
750 kg |
Front tire | 6-12 |
Rear tire | 9.5-20 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 50 |
Battery volts | 12 |
References | |
|---|---|
![]() | |
Operator's Manual LT200 Loader (LTS16-01200) published in 2005 |
Engine
Engine Detail — 68.6 ci / 1.1 L Diesel
Manufacturer | Mitsubishi S3L |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 68.6 ci
1.1 L |
Power (gross) | 23 hp
17.2 kW |
Fuel system | indirect injection |
Air cleaner | dry single element |
Rated RPM | 2700 |
Starter volts | 12 |

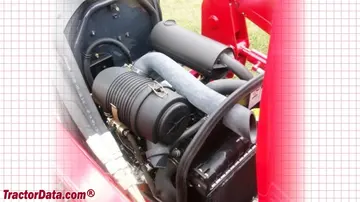

TYM T233 Engine | |
|---|---|
![]() | |
Image courtesy of Town and Country Sales and Service |
Transmission
Transmission — infinite forward and reverse (2-range) hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse (2-range) |
Dimensions
TYM T233 Tires | |
|---|---|
Ag front | 6-12 |
Ag rear | 9.5-20 |
Lawn/turf front | 23x8.50-12 |
Lawn/turf rear | 12-16.5 |
Industrial front | 23x8.50-12 |
Industrial rear | 12-16.5 |
Dimensions | |
|---|---|
Wheelbase | 58.3 inches
148 cm |
Length | 92.1 inches
233 cm |
Width | 49 inches
124 cm |
Height | 78.7 inches
199 cm |
Weight | 1,654 lbs
750 kg |
Ground clearance | 11.8 inches
29 cm |
Attachments
Attachment overview | |
|---|---|
TYM LT200 loader | |
TX2000 loader |

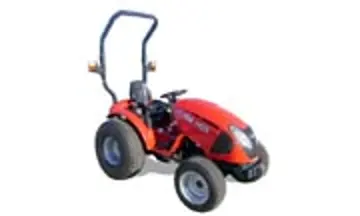

Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Tym T233 based on its 23 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Tym T233.
Estimated Continuous Field Runtime: 5.5 hrs
Approximately 5.5 hours of continuous field operation at ~75% rated power on a full tank (6.6 gal / 25 L).
Estimated 75% Load Fuel Burn~1.2 gal/hr (4.5 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Tym T233 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Tym T233.
Converted Equivalents:
Horsepower (HP)23 hp
Kilowatts (kW)17.2 kW
Metric Horsepower (PS / CV)23.3 PS
Direct Competitor Comparison
Compare TYM T233 against same-era industry alternatives in the same horsepower class.
Current Model
Tym
TYM T233
Engine Power:Diesel (gross): 23 hp / 17.2 kW
★ Baseline Reference
