TYM 2610
The TYM 2610 is a tractor produced by Tym. It is equipped with a 71.7 ci 1.2 L engine. The listed engine power is Diesel (gross): 24 hp / 17.9 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 272 lbs 123 kg.
Engine Power
Diesel (gross): 24 hp / 17.9 kW
Fuel & Capacities
6 gal
22.7 L
Transmission
infinite forward and reverse (3-range)
Operating Weight
272 lbs
123 kg
Overview
![]() | 2021 -
1 SeriesSub-Compact Utility tractor |
|---|---|
2021 - | |
1 Series | |
Sub-Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | TYM |
Sub-Compact Utility tractor | |
The TYM 2610 was also sold as the Branson 2610h before the Branson name was dropped. | |
TYM 2610 Engine | |
|---|---|
TYM 1.2L 3-cyl diesel | |
Fuel tank | 6 gal
22.7 L |
Engine details ... | |
TYM 2610 Transmission | |
|---|---|
hydrostatic | |
Transmission details ... |
TYM 2610 Power | |
|---|---|
Engine (gross) | 24 hp
17.9 kW |
PTO (claimed) | 18 hp
13.4 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering |
Hydraulics | |
|---|---|
Type | open center |
Valves | 2 OptOptional |
SCV flow | 3.1 gpm
11.7 lpm |
Total flow | 7.4 gpm
28.0 lpm |
Steering flow | 4.3 gpm
16.3 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position control |
Rear lift (at ends) | 1499 lbs
679 kg |
Rear lift (at 24"/610mm) | 974 lbs
441 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | live |
Rear PTO Type | 540 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 65.7 inches
166 cm |
Weight | 2106 lbs
955 kg |
Front tire | 6-12 |
Rear tire | 9.5-16 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 60 |
Battery volts | 12 |

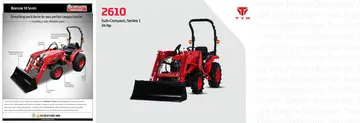

References | |
|---|---|
![]() | |
10 Series published in 2021, by Branson | |
2610 Sub-Compact, Series 1 published in 2023, by TYM |
Engine
Engine Detail — 71.7 ci / 1.2 L Diesel
Manufacturer | TYM A1100N2 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 71.7 ci
1.2 L |
Emissions | Tier IV |
Power (gross) | 24 hp
17.9 kW |
Fuel system | indirect injection |
Air cleaner | dry |
Starter | electric |
Starter volts | 12 |
Oil capacity | 3.2 qts
3.0 L |
Coolant capacity | 5.3 qts
5.0 L |
Transmission

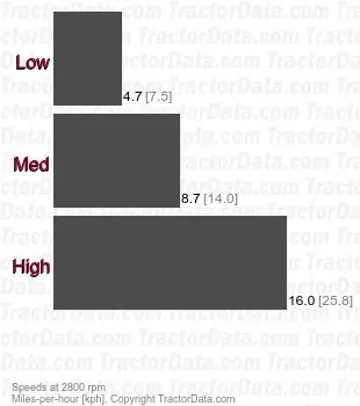

Transmission — infinite forward and reverse (3-range) hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse (3-range) |
With 11.2-20 R1 rear tires. | |
![]() | |
Dimensions
TYM 2610 Tires | |
|---|---|
Standard tires (ag) | Front: 6-12. Rear: 9.5-16 |
Optional tires (ag) | Front: 7.16. Rear: 11.2-20 |
Lawn/turf front | 23x8.20-12 |
Lawn/turf rear | 33x12.50-16.5 |
Industrial front | 25x8.50-14 |
Industrial rear | 14-17.5 |
Dimensions | |
|---|---|
Wheelbase | 65.7 inches
166 cm |
Length | 122.9 inches
312 cm |
Width | 53.8 inches
136 cm |
Height (ROPS) | 91.5 inches
232 cm |
Weight | 2106 lbs
955 kg |
Ground clearance | 15.1 inches
38 cm |
Attachments
Attachment overview | |
|---|---|
60" mid-mount mower deck | |
Front-end loader | |
Backhoe |
60" Mower deck | |
|---|---|
Type | mid-mount TYM BM60L |
3-blade | |
Cutting width | 60 inches
152 cm |
Weight | 272 lbs
123 kg |
Cut height | 1 to 4 inch
2 to 10 cm |
TYM BH100 Backhoe | |
|---|---|
Backhoe type | TYM BH100 Backhoe |
Transport height | 71.1 inches
180 cm |
Bucket width | 9 inches
22 cm |
12 inches
30 cm | |
16 inches
40 cm | |
18 inches
45 cm | |
Digging depth | 75.6 inches
192 cm |
Reach from pivot | 107.9 inches
274 cm |
Loading height | 62.7 inches
159 cm |
Bucket Rotation | 180° |
Swing Arc | 140° |

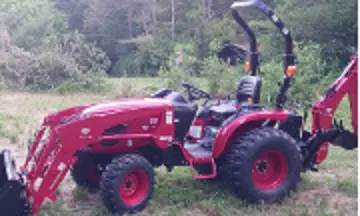

Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Tym 2610 based on its 24 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Tym 2610.
Estimated Continuous Field Runtime: 4.8 hrs
Approximately 4.8 hours of continuous field operation at ~75% rated power on a full tank (6 gal / 22.7 L).
Estimated 75% Load Fuel Burn~1.2 gal/hr (4.7 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Tym 2610 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Tym 2610.
Converted Equivalents:
Horsepower (HP)24 hp
Kilowatts (kW)17.9 kW
Metric Horsepower (PS / CV)24.3 PS
Direct Competitor Comparison
Compare TYM 2610 against same-era industry alternatives in the same horsepower class.
Current Model
Tym
TYM 2610
Engine Power:Diesel (gross): 24 hp / 17.9 kW
★ Baseline Reference
