TYM T280
The TYM T280 is a tractor produced by Tym. It is equipped with a 91.5 ci 1.5 L engine. The listed engine power is Diesel (listed): 28 hp / 20.9 kW. Transmission: 16 forward and reverse. Operating weight: 2798 lbs 1269 kg.
Engine Power
Diesel (listed): 28 hp / 20.9 kW
Fuel & Capacities
6.9 gal
26.1 L
Transmission
16 forward and reverse
Operating Weight
2798 lbs
1269 kg
Overview
 | ???? - 2001
Compact Utility tractor |
|---|---|
???? - 2001 | |
Compact Utility tractor | |
???? - 2001 | |
|---|---|
Compact Utility tractor |
Production | |
|---|---|
Manufacturer | TYM |
Compact Utility tractor | |
Built in South Korea | |
TYM T280 Engine | |
|---|---|
Kubota 1.5L 3-cyl diesel | |
Fuel tank | 6.9 gal
26.1 L |
Engine details ...  | |
TYM T280 Transmission | |
|---|---|
16-speed synchromesh | |
Transmission details ...  |
TYM T280 Power | |
|---|---|
Engine | 28 hp
20.9 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | mechanical rear |
Steering | power |
Wet disc brakes | |
Two-post ROPS. | |
Hydraulics | |
|---|---|
Pump flow | 10 gpm
37.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position and draft control |
Rear lift | 2250 lbs
1020 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 63 inches
160 cm |
Weight | 2798 lbs
1269 kg |
Front tire | 7-16 |
Rear tire | 11.2-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Millennium 2000 published by ITC International |
Engine
| ???? - 2001
Compact Utility tractor |
|---|---|
???? - 2001 | |
Compact Utility tractor | |
???? - 2001 | |
|---|---|
Compact Utility tractor |
Engine Detail — 91.5 ci / 1.5 L Diesel
Manufacturer | Kubota D1503 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 91.5 ci
1.5 L |
Bore/Stroke | 3.3x3.6 inches
84 x 91 mm |
Power | 28 hp
20.9 kW |
Rated RPM | 2600 |
Starter | electric |
Starter volts | 12 |
Transmission
| ???? - 2001
Compact Utility tractor |
|---|---|
???? - 2001 | |
Compact Utility tractor | |
???? - 2001 | |
|---|---|
Compact Utility tractor |
Transmission — 16 forward and reverse synchromesh
Type | synchromesh |
Gears | 16 forward and reverse |
Clutch | dry disc |
Dimensions
| ???? - 2001
Compact Utility tractor |
|---|---|
???? - 2001 | |
Compact Utility tractor | |
???? - 2001 | |
|---|---|
Compact Utility tractor |
TYM T280 Tires | |
|---|---|
Ag front | 7-16 |
Ag rear | 11.2-24 |
Dimensions | |
|---|---|
Wheelbase | 63 inches
160 cm |
Length | 122 inches
309 cm |
Width | 50 inches
127 cm |
Height (ROPS) | 80 inches
203 cm |
Weight | 2798 lbs
1269 kg |
Ground clearance | 13 inches
33 cm |
Front tread | 41 inches
104 cm |
Rear tread | 40 inches
101 cm |
Photos

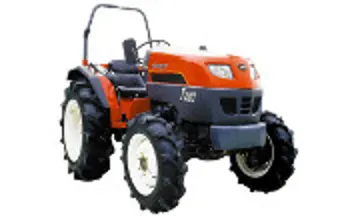

TYM T280 tractor photo
Tym T280 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Tym T280.
Converted Equivalents:
Horsepower (HP)28 hp
Kilowatts (kW)20.9 kW
Metric Horsepower (PS / CV)28.4 PS
