TYM T390
The TYM T390 is a tractor produced by Tym. It is equipped with a 113.3 ci 1.9 L engine. The listed engine power is Diesel (listed): 39 hp / 29.1 kW. Transmission: 12 forward and reverse. Operating weight: 3695 lbs 1676 kg.
Engine Power
Diesel (listed): 39 hp / 29.1 kW
Fuel & Capacities
9.25 gal
35.0 L
Transmission
12 forward and reverse
Operating Weight
3695 lbs
1676 kg
Overview
![]() | Compact Utility tractor | Compact Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | TYM |
Compact Utility tractor | |
Built in South Korea | |
TYM T390 Engine | |
|---|---|
Kubota 1.9L 4-cyl diesel | |
Fuel tank | 9.25 gal
35.0 L |
Engine details ... | |
TYM T390 Transmission | |
|---|---|
12-speed synchromesh | |
Transmission details ... |
TYM T390 Power | |
|---|---|
Engine | 39 hp
29.1 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | mechanical rear |
Steering | power |
Wet disc brakes | |
Two-post ROPS. | |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position and draft control |
Rear lift | 2650 lbs
1202 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 71 inches
180 cm |
Weight | 3695 lbs
1676 kg |
Front tire | 8-16 |
Rear tire | 13.6-24 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
![]() | |
Millennium 2000 published by ITC International |
Engine
Engine Detail — 113.3 ci / 1.9 L Diesel
Manufacturer | Kubota V1903 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 113.3 ci
1.9 L |
Bore/Stroke | 3.1x3.6 inches
79 x 91 mm |
Power | 39 hp
29.1 kW |
Rated RPM | 2800 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 12 forward and reverse synchromesh
Type | synchromesh |
Gears | 12 forward and reverse |
Clutch | dry disc |
Dimensions
TYM T390 Tires | |
|---|---|
Ag front | 8-16 |
Ag rear | 13.6-24 |
Dimensions | |
|---|---|
Wheelbase | 71 inches
180 cm |
Length | 132 inches
335 cm |
Width | 60 inches
152 cm |
Height (ROPS) | 95 inches
241 cm |
Weight | 3695 lbs
1676 kg |
Ground clearance | 14 inches
35 cm |
Front tread | 50 inches
127 cm |
Rear tread | 50 inches
127 cm |

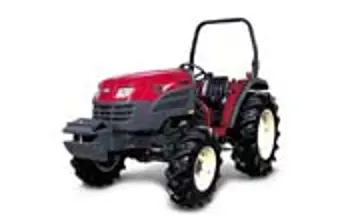

Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Tym T390 based on its 39 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Tym T390.
Estimated Continuous Field Runtime: 4.6 hrs
Approximately 4.6 hours of continuous field operation at ~75% rated power on a full tank (9.3 gal / 35 L).
Estimated 75% Load Fuel Burn~2 gal/hr (7.7 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Tym T390 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Tym T390.
Converted Equivalents:
Horsepower (HP)39 hp
Kilowatts (kW)29.1 kW
Metric Horsepower (PS / CV)39.5 PS
Direct Competitor Comparison
Compare TYM T390 against same-era industry alternatives in the same horsepower class.
Current Model
Tym
TYM T390
Engine Power:Diesel (listed): 39 hp / 29.1 kW
★ Baseline Reference
