TYM T350

The TYM T350 is a tractor produced by Tym. It is equipped with a 107.3 ci 1.8 L engine. The listed engine power is Diesel (gross): 35 hp / 26.1 kW. Transmission: 9 forward and 3 reverse. Operating weight: 1069 lbs 484 kg.

Overview

	2009 - ???? 300 SeriesCompact Utility tractor
2009 - ????
300 Series
Compact Utility tractor

2009 - ????
300 Series
Compact Utility tractor

Production
Manufacturer	TYM
Compact Utility tractor

TYM T350 Engine
Mitsubishi 1.8L 4-cyl diesel
Engine details ...

TYM T350 Transmission
9-speed mechanical gear
Transmission details ...

TYM T350 Power
Engine (gross)	35 hp 26.1 kW
PTO (claimed)	29 hp 21.6 kW

Mechanical
Four-wheel drive
Steering	hydrostatic power
Wet disc brakes
Two-post ROPS.

Capacity
Fuel	7.3 gal 27.6 L
Hydraulic system	8.7 gal 32.9 L
Front axle	2.2 qts 2.1 L

Hydraulics
Type	dual gear pump
Capacity	8.7 gal 32.9 L
Pump flow	6.3 gpm 23.8 lpm
Total flow	10.6 gpm 40.1 lpm
Steering flow	4.3 gpm 16.3 lpm

Tractor hitch
Rear Type	1
Control	position control
Rear lift (at ends)	2646 lbs 1200 kg
Rear lift (at 24"/610mm)	1764 lbs 800 kg

Power Take-off (PTO)
Rear PTO	transmission
Rear PTO Type	540 (1.375)

Dimensions & Tires
Wheelbase	64.5 inches 163 cm
Weight	3065 lbs 1390 kg
Front tire	7.0-16
Rear tire	11.2-24
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	50
Charging volts	12
Battery volts	12

Engine

	2009 - ???? 300 SeriesCompact Utility tractor
2009 - ????
300 Series
Compact Utility tractor

2009 - ????
300 Series
Compact Utility tractor

Engine Detail — 107.3 ci / 1.8 L Diesel

Manufacturer	Mitsubishi S4L2
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	107.3 ci 1.8 L
Power (gross)	35 hp 26.1 kW
Fuel system	indirect injection
Air cleaner	dual dry element
Rated RPM	2700
Starter volts	12
Oil capacity	6 qts 5.7 L
Coolant capacity	7.4 qts 7.0 L

Transmission

	2009 - ???? 300 SeriesCompact Utility tractor
2009 - ????
300 Series
Compact Utility tractor

2009 - ????
300 Series
Compact Utility tractor

Transmission — 9 forward and 3 reverse mechanical gear

Type	mechanical gear
Gears	9 forward and 3 reverse
Clutch	single dry disc
Oil capacity	34.8 qts 32.9 L

Dimensions

	2009 - ???? 300 SeriesCompact Utility tractor
2009 - ????
300 Series
Compact Utility tractor

2009 - ????
300 Series
Compact Utility tractor

TYM T350 Tires
Ag front	7.0-16
Ag rear	11.2-24
Industrial front	27x10.5-15
Industrial rear	12.5x20

Dimensions
Wheelbase	64.5 inches 163 cm
Length	119.3 inches 303 cm
Width	53.5 inches 135 cm
Height (ROPS)	94.5 inches 240 cm
Weight	3065 lbs 1390 kg
Ground clearance	12.8 inches 32 cm

Attachments

	2009 - ???? 300 SeriesCompact Utility tractor
2009 - ????
300 Series
Compact Utility tractor

2009 - ????
300 Series
Compact Utility tractor

Attachment overview
Front-end loader
Backhoe

TYM BT300 Backhoe
Backhoe type	TYM BT300 Backhoe
Weight	1069 lbs 484 kg
2-Foot flat digging depth	89.7 inches 227 cm
Reach from pivot	125.1 inches 317 cm
Loading height	72.4 inches 183 cm
Bucket Rotation	180°
Swing Arc	180°
Bucket force	3057 lbs 1386 kg
Dipperstick force	1571 lbs 712 kg

Photos

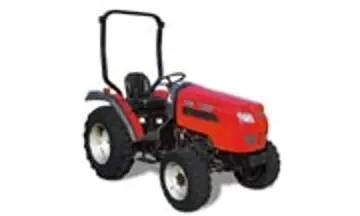

TYM T350 tractor photo
