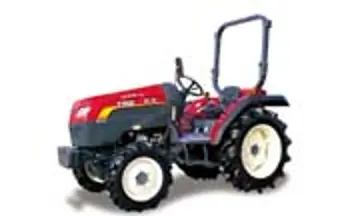

TYM T352
The TYM T352 is a tractor produced by Tym. It is equipped with a 107.3 ci 1.8 L engine. The listed engine power is Diesel (listed): 35 hp / 26.1 kW. Transmission: 12 forward and reverse. Operating weight: 3064 lbs 1389 kg.
Engine Power
Diesel (listed): 35 hp / 26.1 kW
Fuel & Capacities
8.7 gal
32.9 L
Transmission
12 forward and reverse
Operating Weight
3064 lbs
1389 kg
Overview
![]() | Compact Utility tractor | Compact Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | TYM |
Compact Utility tractor | |
Built in South Korea | |
TYM T352 Engine | |
|---|---|
Mitsubishi 1.8L 4-cyl diesel | |
Fuel tank | 8.7 gal
32.9 L |
Engine details ... | |
TYM T352 Transmission | |
|---|---|
12-speed | |
Transmission details ... |
TYM T352 Power | |
|---|---|
Engine | 35 hp
26.1 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostatic power |
Wet disc brakes | |
Two-post ROPS. | |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 550/727/1013 |
Dimensions & Tires | |
|---|---|
Wheelbase | 64.6 inches
164 cm |
Weight | 3064 lbs
1389 kg |
Front tire | 8-16 |
Rear tire | 12.4-24 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 107.3 ci / 1.8 L Diesel
Manufacturer | Mitsubishi |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 107.3 ci
1.8 L |
Power | 35 hp
26.1 kW |
Rated RPM | 2700 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 12 forward and reverse
Gears | 12 forward and reverse |
Dimensions
TYM T352 Tires | |
|---|---|
Standard tires (ag) | Front: 8-16. Rear: 12.4-24 |
Dimensions | |
|---|---|
Wheelbase | 64.6 inches
164 cm |
Length | 129.4 inches
328 cm |
Width | 51.8 inches
131 cm |
Height (ROPS) | 93.2 inches
236 cm |
Weight | 3064 lbs
1389 kg |
Ground clearance | 12.2 inches
30 cm |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Tym T352 based on its 35 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Tym T352.
Estimated Continuous Field Runtime: 4.8 hrs
Approximately 4.8 hours of continuous field operation at ~75% rated power on a full tank (8.7 gal / 32.9 L).
Estimated 75% Load Fuel Burn~1.8 gal/hr (6.9 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Tym T352 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Tym T352.
Converted Equivalents:
Horsepower (HP)35 hp
Kilowatts (kW)26.1 kW
Metric Horsepower (PS / CV)35.5 PS
Direct Competitor Comparison
Compare TYM T352 against same-era industry alternatives in the same horsepower class.
Current Model
Tym
TYM T352
Engine Power:Diesel (listed): 35 hp / 26.1 kW
★ Baseline Reference
