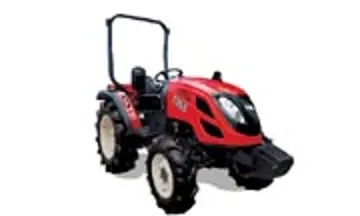

TYM T353

The TYM T353 is a tractor produced by Tym. It is equipped with a 107.3 ci 1.8 L engine. The listed engine power is Diesel (gross): 35 hp / 26.1 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 1069 lbs 484 kg.

Overview

	2006 - ???? 300 SeriesCompact Utility tractor
2006 - ????
300 Series
Compact Utility tractor

2006 - ????
300 Series
Compact Utility tractor

Production
Manufacturer	TYM
Compact Utility tractor

Variants
T353	12-speed shuttle
T353HST	hydrostatic

TYM T353 Engine
Mitsubishi 1.8L 4-cyl diesel
Engine details ...

TYM T353 Power
Engine (gross)	35 hp 26.1 kW
Gear PTO (claimed)	29 hp 21.6 kW
Hydro PTO (claimed)	26 hp 19.4 kW

Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Two-post folding ROPS.

Capacity
Fuel	9 gal 34.1 L
Gear Hydraulic system	8.5 gal 32.2 L
Hydro Hydraulic system	9.25 gal 35.0 L
Front axle	8.7 qts 8.2 L

Hydraulics
Type	open center
Gear Capacity	8.5 gal 32.2 L
Hydro Capacity	9.25 gal 35.0 L
Pump flow	6.3 gpm 23.8 lpm
Total flow	10.6 gpm 40.1 lpm
Steering flow	4.3 gpm 16.3 lpm

Tractor hitch
Rear Type	1
Control	position control
Rear lift (at ends)	2646 lbs 1200 kg
Rear lift (at 24"/610mm)	1764 lbs 800 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540/1000 (1.375)
Mid PTO	optional *Mid PTO available only with the hydrostatic transmission.
Mid PTO Type	2000

Dimensions & Tires
Wheelbase	64.5 inches 163 cm
Weight	3065 lbs 1390 kg
Front tire	7.0-16
Rear tire	11.2-24
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	50
Charging volts	12
Battery volts	12

Engine

	2006 - ???? 300 SeriesCompact Utility tractor
2006 - ????
300 Series
Compact Utility tractor

2006 - ????
300 Series
Compact Utility tractor

Engine Detail — 107.3 ci / 1.8 L Diesel

Manufacturer	Mitsubishi S4L2
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	107.3 ci 1.8 L
Power (gross)	35 hp 26.1 kW
Fuel system	indirect injection
Air cleaner	dual dry element
Rated RPM	2700
Starter volts	12
Oil capacity	6 qts 5.7 L
Coolant capacity	7.4 qts 7.0 L

Transmission

	2006 - ???? 300 SeriesCompact Utility tractor
2006 - ????
300 Series
Compact Utility tractor

2006 - ????
300 Series
Compact Utility tractor

Transmission options
12-speed sync shuttle
hydrostatic

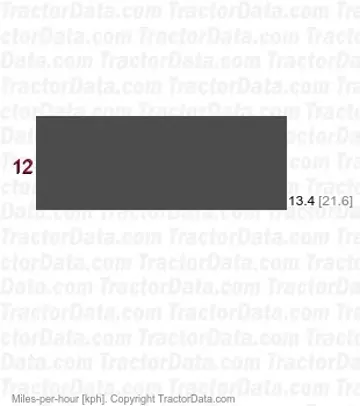

Transmission — 12 forward and reverse sync shuttle

Type	sync shuttle
Gears	12 forward and reverse
Clutch	single dry disc
Oil capacity	34 qts 32.2 L

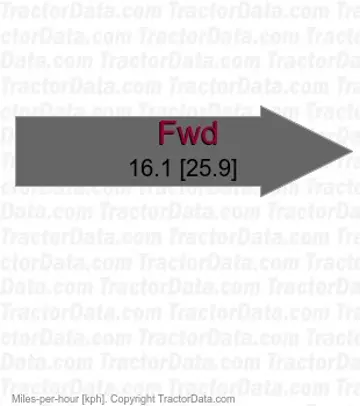

Transmission — infinite forward and reverse (3-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (3-range)
Oil capacity	37 qts 35.0 L

Dimensions

	2006 - ???? 300 SeriesCompact Utility tractor
2006 - ????
300 Series
Compact Utility tractor

2006 - ????
300 Series
Compact Utility tractor

TYM T353 Tires
Ag front	7.0-16
Ag rear	11.2-24
Industrial front	27x10.5-15
Industrial rear	12.5x20

Dimensions
Wheelbase	64.5 inches 163 cm
Length	126 inches 320 cm
Width	53.5 inches 135 cm
Height (ROPS)	94.5 inches 240 cm
Weight	3065 lbs 1390 kg
Ground clearance	12.8 inches 32 cm

Attachments

	2006 - ???? 300 SeriesCompact Utility tractor
2006 - ????
300 Series
Compact Utility tractor

2006 - ????
300 Series
Compact Utility tractor

Attachment overview
TYM LT353 loader
TYM LT353H loader
TYM TX3500 loader
Backhoe

TYM BT300 Backhoe
Backhoe type	TYM BT300 Backhoe
Weight	1069 lbs 484 kg
2-Foot flat digging depth	89.7 inches 227 cm
Reach from pivot	125.1 inches 317 cm
Loading height	72.4 inches 183 cm
Bucket Rotation	180°
Swing Arc	180°
Bucket force	3057 lbs 1386 kg
Dipperstick force	1571 lbs 712 kg

Photos

TYM T353 with LT353 front-end loader, right side.

TYM T353 with LT353 front-end loader, left side.
