TYM T354

The TYM T354 is a tractor produced by Tym. It is equipped with a 100.2 ci 1.6 L engine. The listed engine power is Engine Detail — 100.2 ci / 1.6 L (gross): 34.2 hp / 25.5 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 3065 lbs 1390 kg.

Overview

	2014 - Compact Utility tractor
2014 -
Compact Utility tractor

Production
Manufacturer	TYM
Compact Utility tractor

TYM T354 Engine
Yanmar 1.6L 3-cyl
Fuel tank	9 gal 34.1 L
Engine details ...

TYM T354 Power
Engine (gross)	34.2 hp 25.5 kW

Mechanical
Four-wheel drive
Steering	hydrostatic power
Mechanical wet disc brakes
Two-post foldable ROPS.

Hydraulics
Type	open center dual gear pump
Valves	1
Total flow	10.6 gpm 40.1 lpm

Tractor hitch
Rear Type	I
Rear lift (at ends)	2646 lbs 1200 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	540/1000 (1.375)

Dimensions & Tires
Wheelbase	64.5 inches 163 cm
Weight	3065 lbs 1390 kg
Front tire	27x10.5-15
Rear tire	12.5x20
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12

Engine

Engine Detail — 100.2 ci / 1.6 L

Manufacturer	Yanmar 3TNV88-CR
Configuration	3-cylinder, liquid-cooled
Displacement	100.2 ci 1.6 L
Bore/Stroke	3.46x3.54 inches 88 x 90 mm
Emissions	Tier IV
Power (gross)	34.2 hp 25.5 kW
Compression	19:1
Rated RPM	2800
Starter	electric
Starter volts	12

Transmission

Transmission options
12-speed syncronized shuttle
hydrostatic

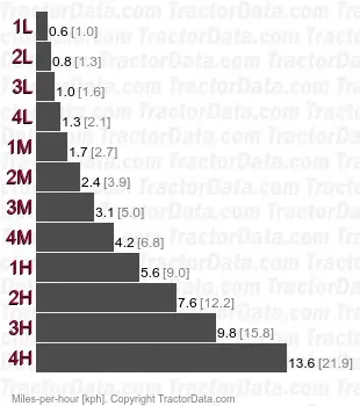

Transmission — 12 forward and reverse syncronized shuttle

Type	syncronized shuttle
Gears	12 forward and reverse
Clutch	225mm dry disc
Four gears (1-4) in three ranges (low, medium, high) with mechanical left hand reverser lever. Gears shifts and shuttle shifts are synchronized, using the clutch.

Transmission — infinite forward and reverse (3-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (3-range)

Dimensions

TYM T354 Tires
Ag front	27x10.5-15
Ag rear	12.5x20
Lawn/turf front	27x10.50LL-15
Lawn/turf rear	41x14.00-20

Dimensions
Wheelbase	64.5 inches 163 cm
Length	126 inches 320 cm
Width	53.5 inches 135 cm
Height (ROPS)	94.5 inches 240 cm
Weight	3065 lbs 1390 kg
Ground clearance	12.8 inches 32 cm

Attachments

Attachment overview
TYM TX35 loader
TYM TX35H loader

Photos

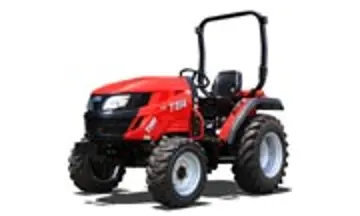

TYM T354 tractor photo
