TYM T400
The TYM T400 is a tractor produced by Tym. It is equipped with a 113.3 ci 1.9 L engine. The listed engine power is Diesel (listed): 43 hp / 32.1 kW. Transmission: sync shuttle. Operating weight: 3,960 lbs 1796 kg.
Engine Power
Diesel (listed): 43 hp / 32.1 kW
Fuel & Capacities
9.25 gal
35.0 L
Transmission
sync shuttle
Operating Weight
3,960 lbs
1796 kg
Overview
![]() |
|---|
Production | |
|---|---|
Manufacturer | TYM |
TYM T400 Engine | |
|---|---|
Kubota 1.9L 4-cyl diesel | |
Engine details ... |
TYM T400 Transmission | |
|---|---|
12-speed | |
Transmission details ... |
TYM T400 Power | |
|---|---|
Engine | 43 hp
32.1 kW |
PTO (claimed) | 36.5 hp
27.2 kW |
Mechanical | |
|---|---|
Steering | hydrostatic power |
Wet disc brakes | |
Capacity | |
|---|---|
Fuel | 9.25 gal
35.0 L |
Hydraulic system | 9 gal
34.1 L |
Hydraulics | |
|---|---|
Capacity | 9 gal
34.1 L |
Valves | 2 rear, 1 front |
Pump flow | 8.4 gpm
31.8 lpm |
Total flow | 11.78 gpm
44.6 lpm |
Tractor hitch | |
|---|---|
Rear Type | I/II |
Rear lift (at ends) | 2,865 lbs
1299 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 71 inches
180 cm |
Weight | 3,960 lbs
1796 kg |
Front tire | 8-16 |
Rear tire | 13.6-24 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Charging amps | 50 |
Engine
Engine Detail — 113.3 ci / 1.9 L Diesel
Manufacturer | Kubota V1903 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 113.3 ci
1.9 L |
Power | 43 hp
32.1 kW |
Rated RPM | 2800 |
Oil capacity | 8.4 qts
7.9 L |
Coolant capacity | 9.5 qts
9.0 L |
Transmission
Transmission — sync shuttle
Transmission | sync shuttle |
Gears | 12 forward and reverse |
Dimensions
TYM T400 Tires | |
|---|---|
Ag front | 8-16 |
Ag rear | 13.6-24 |
Dimensions | |
|---|---|
Wheelbase | 71 inches
180 cm |
Length | 127 inches
322 cm |
Width | 59.4 inches
150 cm |
Height | 95 inches
241 cm |
Weight | 3,960 lbs
1796 kg |
Ground clearance | 13.2 inches
33 cm |

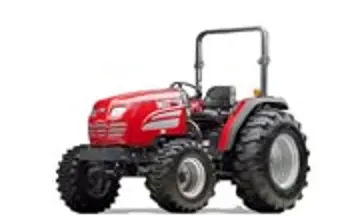

Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Tym T400 based on its 43 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 6 ft (72 in)1.8 m | Medium Duty | Medium pasture clearing; rear slip-clutch recommended. |
Rotary TillerSeedbed Prep | 66 to 72 in165 - 180 cm | Medium Duty | Standard utility tiller; slip clutch protection required. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Tym T400.
Estimated Continuous Field Runtime: 4.2 hrs
Approximately 4.2 hours of continuous field operation at ~75% rated power on a full tank (9.3 gal / 35 L).
Estimated 75% Load Fuel Burn~2.2 gal/hr (8.5 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Tym T400 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Tym T400.
Converted Equivalents:
Horsepower (HP)43 hp
Kilowatts (kW)32.1 kW
Metric Horsepower (PS / CV)43.6 PS
