TYM T394

The TYM T394 is a tractor produced by Tym. It is equipped with a 100.2 ci 1.6 L engine. The listed engine power is Diesel (gross): 37.4 hp / 27.9 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 1069 lbs*Weight without bucket. 484 kg.

Overview

	2016 - Compact Utility tractor
2016 -
Compact Utility tractor

Production
Manufacturer	TYM
Compact Utility tractor

TYM T394 Engine
Yanmar 1.6L 3-cyl diesel
Fuel tank	9 gal 34.1 L
Engine details ...

TYM T394 Power
Engine (gross)	37.4 hp 27.9 kW

Mechanical
Power steering
Wet disc brakes
Two-post folding ROPS. Cab optional with air-conditioning.

Hydraulics
Type	open center
Pump flow	6.4 gpm 24.2 lpm
Total flow	11 gpm 41.6 lpm
Steering flow	4.6 gpm 17.4 lpm

Tractor hitch
Rear Type	I
Control	position control
Rear lift (at ends)	2646 lbs 1200 kg
Rear lift (at 24"/610mm)	1764 lbs 800 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
Mid PTO	independent
Mid PTO Type	2000

Dimensions & Tires
Wheelbase	66.1 inches 167 cm
Weight	3020 lbs 1369 kg
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	55
Battery volts	12

Engine

Engine Detail — 100.2 ci / 1.6 L Diesel

Manufacturer	Yanmar 3TNV88
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	100.2 ci 1.6 L
Bore/Stroke	3.46x3.54 inches 88 x 90 mm
Power (gross)	37.4 hp 27.9 kW
Fuel system	common rail direct injection
Air cleaner	dry
Rated RPM	3000
Starter	electric
Starter volts	12
Oil capacity	6 qts 5.7 L
Coolant capacity	7.4 qts 7.0 L

Transmission

Transmission options
12-speed shuttle
hydrostatic

Transmission — 12 forward and reverse shuttle

Type	shuttle
Gears	12 forward and reverse
Oil capacity	37 qts 35.0 L

Transmission — infinite forward and reverse (3-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (3-range)

Dimensions

TYM T394 Tires

Dimensions
Wheelbase	66.1 inches 167 cm
Length	126 inches 320 cm
Width	53.5 inches 135 cm
Height (ROPS)	94.4 inches 239 cm
Weight	3020 lbs 1369 kg
Ground clearance	12.8 inches 32 cm

Attachments

Attachment overview
Front-end loader
Backhoe

TYM BY75 Backhoe
Backhoe type	TYM BY75 Backhoe
Weight	1069 lbs*Weight without bucket. 484 kg
Transport height	83.5 inches 212 cm
Bucket width	9 inches 22 cm
	12 inches 30 cm
	16 inches 40 cm
	18 inches 45 cm
2-Foot flat digging depth	89.7 inches 227 cm
Reach from pivot	125.1 inches 317 cm
Loading height	72.4 inches 183 cm
Bucket Rotation	180°
Swing Arc	180°
Bucket force	2679 lbs 1215 kg
Dipperstick force	2105 lbs 954 kg

Photos

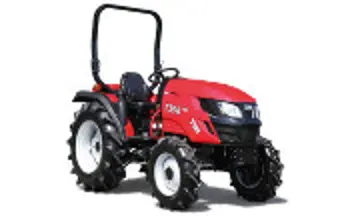

TYM T394 tractor photo
